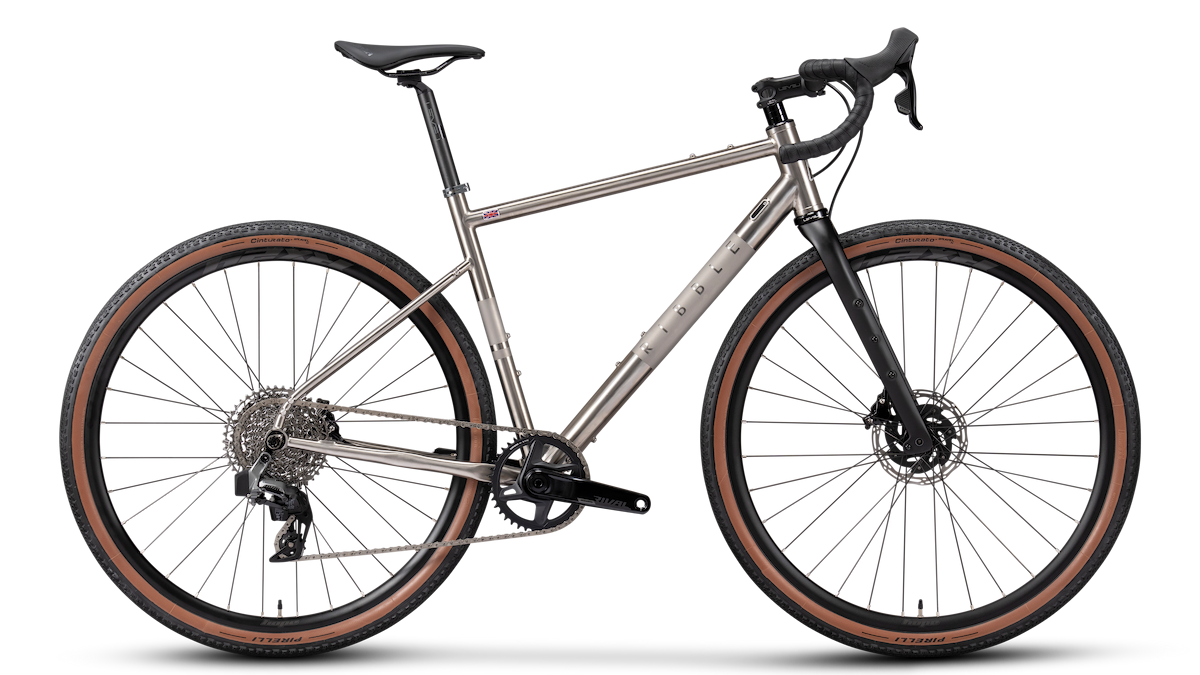

Gravel Ti Rival XPLR AXS
Gravel Ti Rival XPLR AXS image 2
Gravel Ti Rival XPLR AXS image 3

Gravel Ti Rival XPLR AXS

Built to order in the UK
The Gravel Ti is a supremely capable gravel bike that blends timeless titanium ride quality with modern performance, built to stay smooth, strong and composed when the terrain gets tough. It pairs…
£3,799
V12 Finance·Klarna·PayPal
Colour
Choose Your Size
Product code: BGRAVTIRIAXXP2

Ways to pay

Why Ribble?

BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.

LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.

30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.

30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.

BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.

  • "a real charm to ride It handles beautifully in the rough and is nimble on the road..."
    Cyclist
DescriptionGroupsetWheelsetHandlebarsSaddleFrequently Asked Questions

Description

The Gravel Ti is a supremely capable gravel bike that blends timeless titanium ride quality with modern performance, built to stay smooth, strong and composed when the terrain gets tough. It pairs SRAM Rival XPLR AXS wireless electronic shifting with robust Hope RX24 alloy wheels, burly 45 mm Pirelli Gravel tyres and a supportive Selle Italia Novus Boost saddle, delivering confident control and long-distance comfort wherever the trail leads.

Groupset

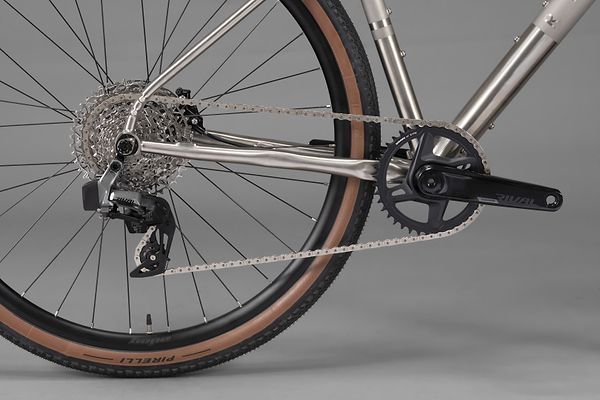

Rival XPLR eTap AXS lets you equip your gravel bike with the most sought-after features and technologies. This 1x12-speed gear system combines a dedicated 1x specific rear derailleur with a massive 440% gear range to provide smooth gear progression as you fly up climbs and dive down descents when it's time to put the hammer down. AXS connectivity allows you to fully customise component behaviour, personalise controls, check battery status, and update firmware from one device. Rival XPLR is fully interchangeable with the entire AXS ecosystem and includes hydraulic disc brakes' powerful and predictable control.

Groupset

Wheelset

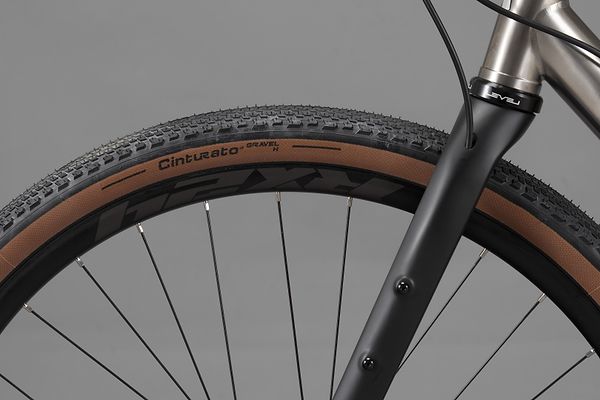

Hope has long been a staple for off-road bikers worldwide. Their new offering brings their legendary build quality and durability to the mixed surface scene, allowing ardent explorers to venture further off-track in search of adventure. Even more durable and resilient than the preceding 20Five wheelset and with the all-surface comfort of wider tyres, this wheelset is ready to roll whenever adventure calls—paired with a 45 mm Pirelli Cinturato gravel tyre, which offers the ability to adapt to the terrain without compromising rolling efficiency while delivering outstanding puncture protection and grip in wet or dry conditions.

Wheelset

Handlebars

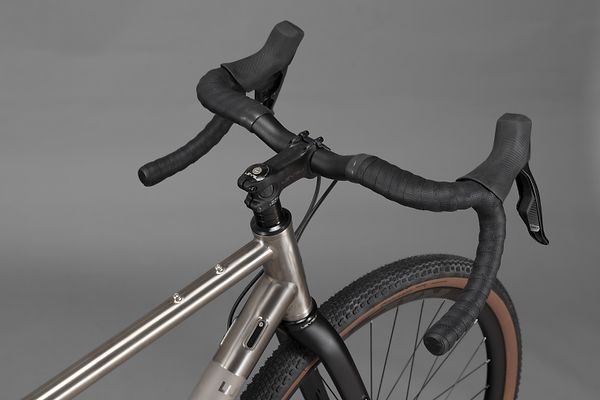

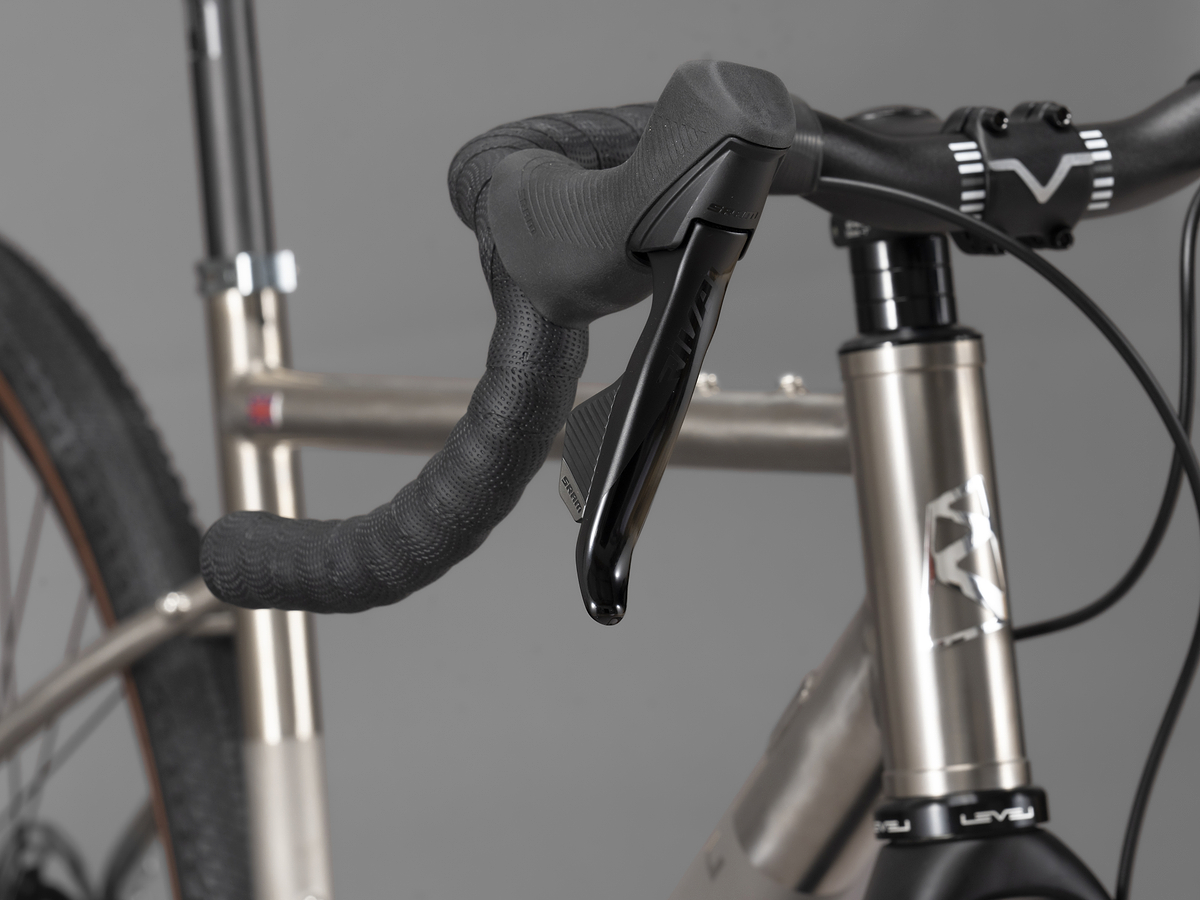

LEVEL Gravel Riser handlebars have been developed specifically for gravel riding; a 20mm rise offers multiple hand positions and more space on the bars when running a barbag. Flared drops provide a wider, more stable stance for improved handling and control when descending and navigating technical terrain. Wrapped in a comfortable LEVEL bar tape and neatly matched with a LEVEL alloy handlebar stem.

Handlebars

Saddle

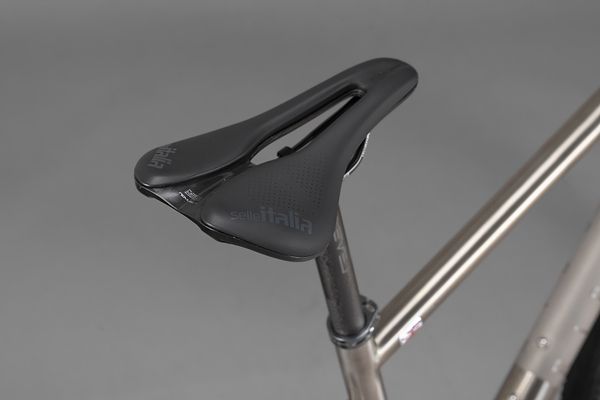

A vibration absorbing LEVEL carbon seat post paired with a lightweight, supportive, and comfortable Selle Italia Novus Boost Evo saddle improves pedalling ergonomics, manoeuvrability, and performance.

Saddle

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

  • 4'11 - 5'3

    150 - 160cm

  • 5'3 - 5'6

    160 - 168cm

  • 5'6 - 5'8

    168 - 173cm

  • 5'8 - 5'10

    173 - 178cm

  • 5'10 - 6'0

    178 - 183cm

  • 6'0 - 6'3

    183 - 191cm

Full Spec

Please note that the exact specification below will differ based on the size and specification you select.

  • Bike

    • Alloy Cable Port Sticker Black
    • Carbon Fork Front Thru Axle - 120mm
    • Carbon Setback Seatpost 27.2mm - 350mm

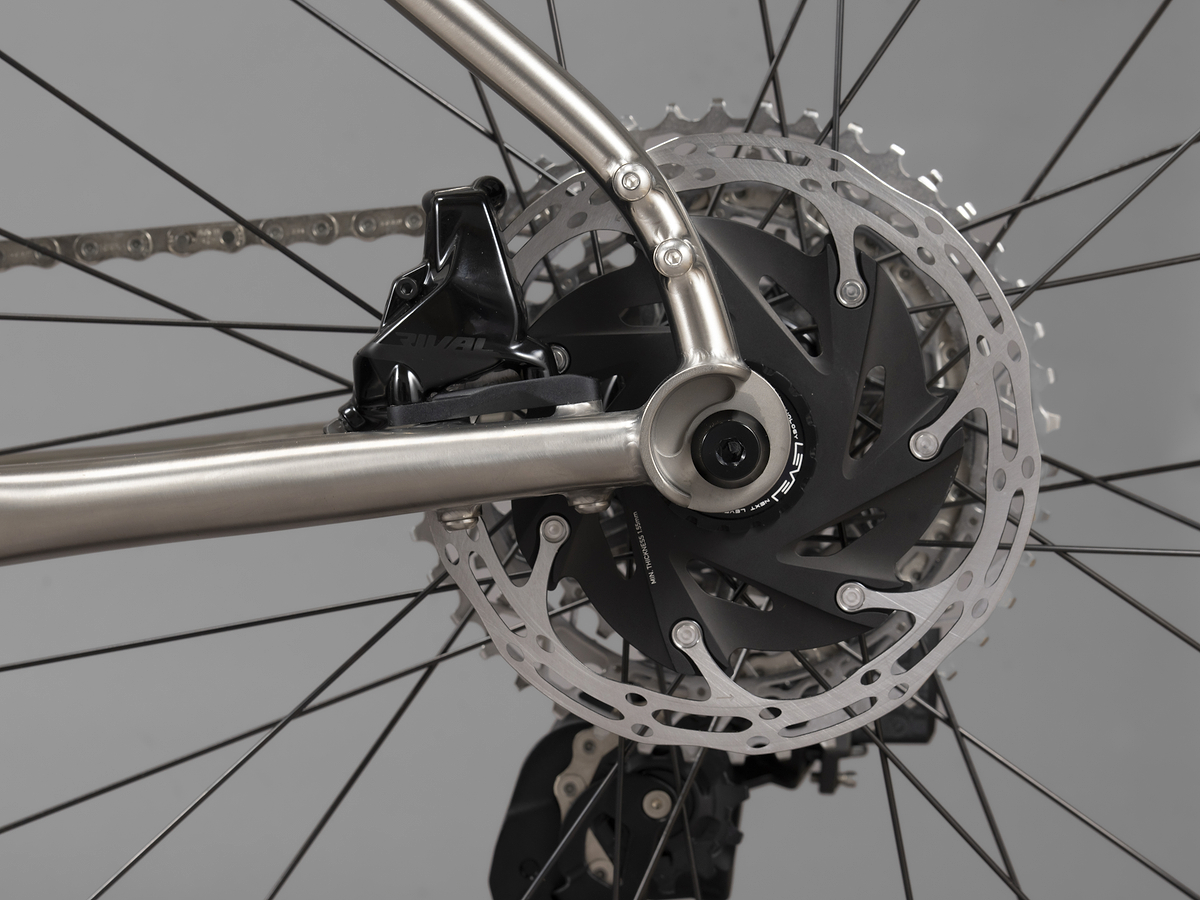

    • CenterLine XR CL Rotor 160mm
    • Centre Lock Rotor Lockring
    • Chainstay Protector
    • Compression Bushing Fits Stealth-a-Majig System AL
    • DUB BSA 68mm Road WIDE Bottom Bracket
    • Disc Caliper Bolt Black 32mm
    • Embossed Black Bar Tape
    • Flat Washer SS (A4) 1mm x M5 x 10mm Silver
    • Frame Badge Union Flag Blue & Red
    • Gravel Ti Carbon Fork
    • Gravel Ti V2 Frame XXS 44cm
    • Head Badge Chrome
    • M5 10mm Hex 3 Domehead P0.8 SSA2
    • M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
    • M5 15mm Hex 3 Domehead P0.8 SSA2
    • M5 8mm Hex 4 Tapered Head P0.8 W/Washer Black
    • MY25/26 Ti UDH Rear Thru Axle - 169mm
    • Needle Insert Fits Stealth-a-Majig System SS
    • Powerpack 1 Battery & Charger (cable not included)
    • Rival 1 D1 Dub Wide Chainset 165mm 40T
    • Rival D1 12spd Chain 120 Links
    • Rival XPLR eTap AXS Rear Derailleur D1 Max 44T
    • Rival eTap AXS D1 Shift Lever & Caliper LH
    • Rival eTap AXS D1 Shift Lever & Caliper RH
    • Rubber Circular Bung - 10mm Domehead 7mm Post
    • Universal Derailleur Hanger
    • Warning sticker sheet Torques to be applied at PDI
    • XG 1251 D1 XPLR Cassette XDR 10-44T

  • Wheelset

    • Cinturato Gravel H Tyre Classic Tan 700x45mm
    • Inner Tube 700x35/45 SV40mm
    • RX24 Pro 5 Front Wheel 700c 32H CL
    • RX24 Pro 5 Rear Wheel 700c 32H CL XDR

  • Handlebar

    • Alloy Gravel Riser Bar Black 38cm - 47cm
    • Alloy Headset Spacer Black 10mm
    • Expander For Carb Steerer 1-1/8 x 65mm (Regular)
    • Level 44 Headset

  • Saddle

    • Novus Boost EVO Superflow Saddle

Frequently Asked Questions

Recommended build weights, based on a medium-sized frame:

  • Apex XPLR AXS build: 10.45 kg
  • Rival XPLR AXS build: 10.32 kg
  • Force XPLR AXS build: 9.9 kg

We offer a lifetime warranty on all Ribble frames and forks for the original purchaser. This covers any manufacturing defects in materials or workmanship so you can ride with complete confidence. The standard manufacturer's warranty covers all other components.

Yes, all the cables are routed internally, this extends to the capability to fit an internally routed dropper post and Shimano Di2 electronic systems.

There is clearance for 700c x 45 mm or 650b x 47 mm tyres, which is reduced to 40 mm if mudguards are fitted.

Yes, the frame has discreet fittings for a rear pannier rack, plus there’s carryall mounts situated on the front forks that allow the attachment of oversize cages to carry items such as ground mats, sleeping bags etc.

The frame utilises traditional 90-degree mounting points, so not all pannier racks will be compatible. Quick-release racks with limited adjustment may be incompatible. For advice on suitable options, please contact us.

Yes, there are eyelets situated on the frame and forks for the fitting of full coverage mudguards.

Four in total. Two are situated on the seat tube and down tube, plus a further mount underneath the downtube and one on the top tube.

Yes, thanks to its fully internal cable routing, the frame is fully compatible with electronic gear systems.

We recommend a maximum system weight of 120 kg (bike, rider & luggage).

It takes a 1 1/8" to 1 1.5" tapered headset compatible with a 44 mm headtube, such as the LEVEL 44 headset that we fit as standard. The bearing dimensions are Upper: 41 x 30.2 x 6.5 mm 35° x 45°, Lower: 52 x 40 x 8mm 45° x 45°.

The Gravel Ti takes a traditional threaded BSA style of bottom bracket.

The seat post diameter is 27.2 mm, and the seat collar is 31.8 mm.

Any bike purchased before mid-2025 should have a standard mech hanger. From mid-2025 onwards, we upgraded the hanger to the new SRAM UDH version for easier replacement and compatibility. Please contact us if you require further assistance in identifying the correct hanger.

Front Axle: M12 x 1.5 mm x 120mm - Rear Axle (Standard Hanger): M12 x 1.5 mm x 172mm - Rear Axle (UDH Hanger): M12 x 1.5 mm x 167.5-169mm.

The frame is compatible with the latest flat-mount disc brakes.

We do not supply pedals with our bikes due to the various systems people use. However, when configuring your bike, you can select from a range of our best-selling pedals.
