Description

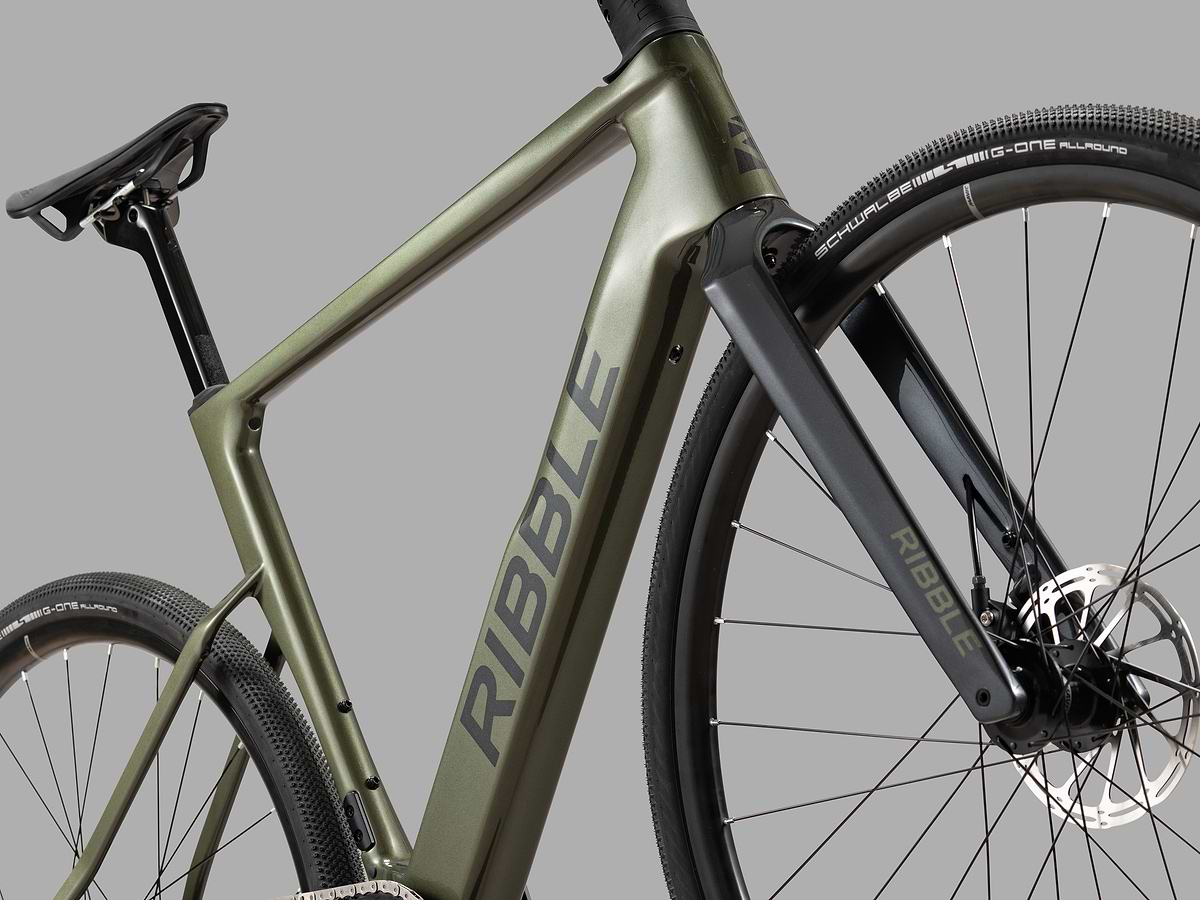

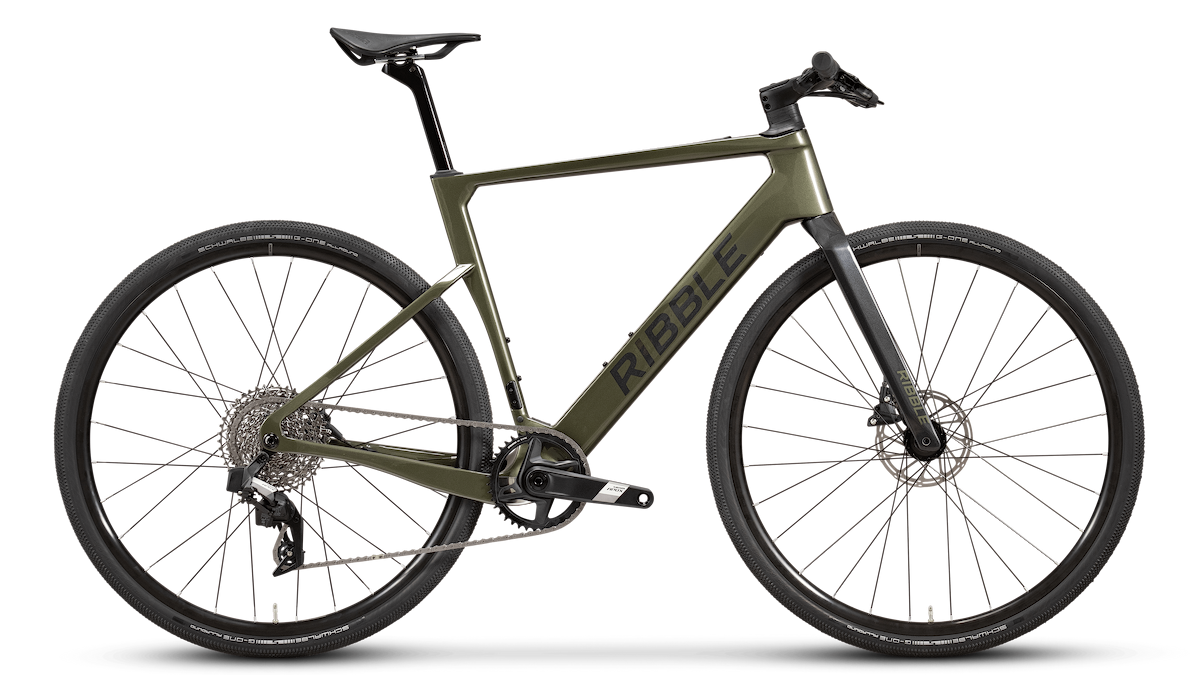

The CGR E Carbon-X blends everyday practicality with smooth electric assistance and a lightweight carbon frame, offering a more upright and confident riding position for greater comfort and control. Weighing just 12.0 kg, it pairs a sleek carbon monocoque frame with internal cable routing and the near-silent MAHLE X20 e-drive system for smooth, natural-feeling assistance when you need it most. SRAM’s fully wireless Apex XPLR AXS groupset delivers a wide gear range for steep climbs and mixed terrain. Durable Mavic Allroad wheels and 40mm Schwalbe G-One tyres keep things fast, stable, and composed, whatever your ride.

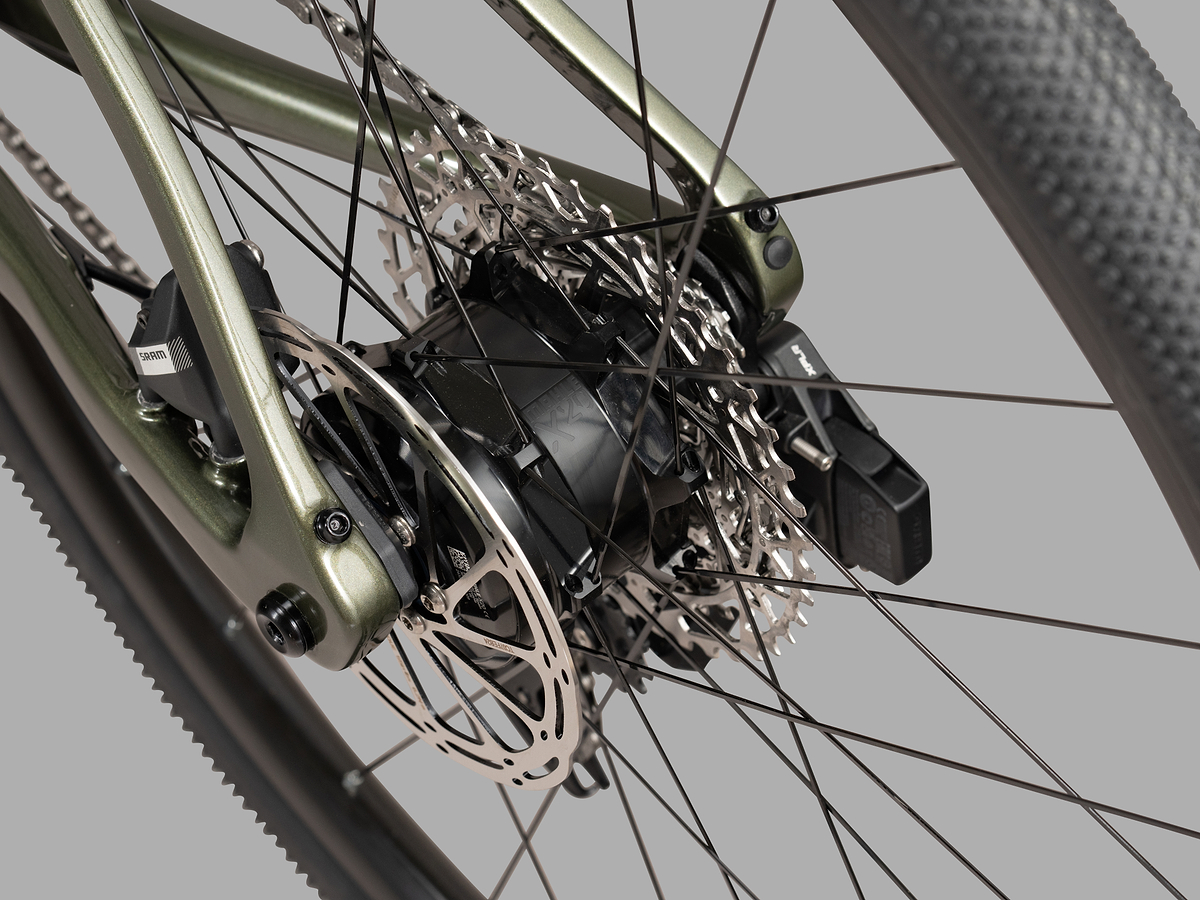

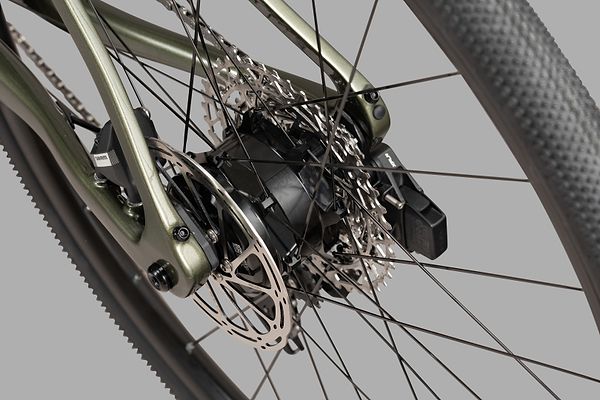

Electric Motor System
The MAHLE X20 e-drive system gives you lightweight, natural-feeling power that kicks in when you need it. It’s whisper-quiet, stealthily tucked away, and delivers up to 140 km of assistance, or more than 200 km with the optional range extender. With 55 Nm of torque and a larger 350 Wh battery, it helps you up climbs, across rough ground and through longer days in the saddle. The intuitive Duo handlebar control unit puts unmatched control of your ride at your fingertips. You can even set the system to respond to your effort or heart rate, so it’s always working how you want it, whether you're training, rebuilding fitness or just riding for the love of it.

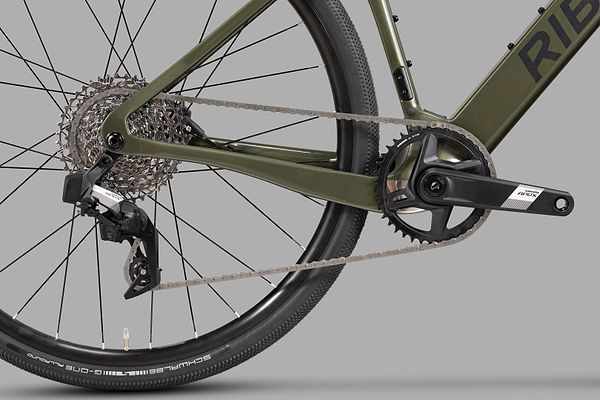

Groupset
Apex is built for riders who demand versatility and solid performance. Its 1x12 drivetrain gives you a wide range, perfect for gravel, bikepacking, and everything in between. Wireless shifting is smooth, reliable, and precise, while hydraulic disc brakes give you control in all conditions. With full AXS connectivity, you can tweak your settings, check battery life, and update firmware straight from your phone. Simple to use, Apex keeps you focused on what matters most: the ride.

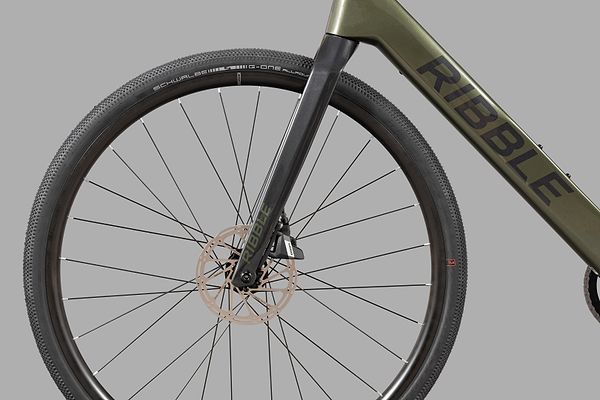

Wheelset
Ride smoother, faster, and further, wherever the road (or trail) takes you. Lightweight and tough, the Mavic Allroad wheels with integrated MAHLE X20 motor deliver responsive power and confident control across any terrain. Paired with 40mm Schwalbe G-One tyres, it’s a setup that’s as eager for hidden dirt tracks as it is for tapping out the tempo on tarmac.

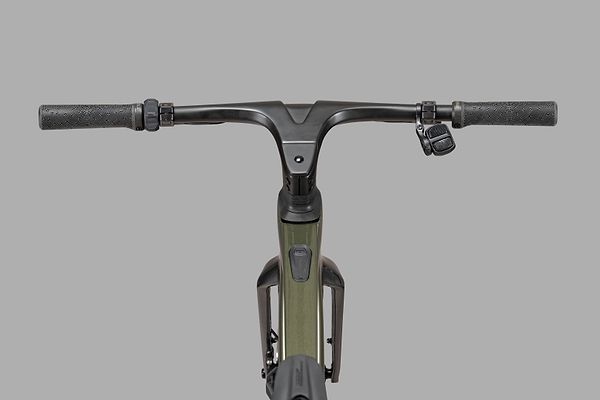

Handlebars

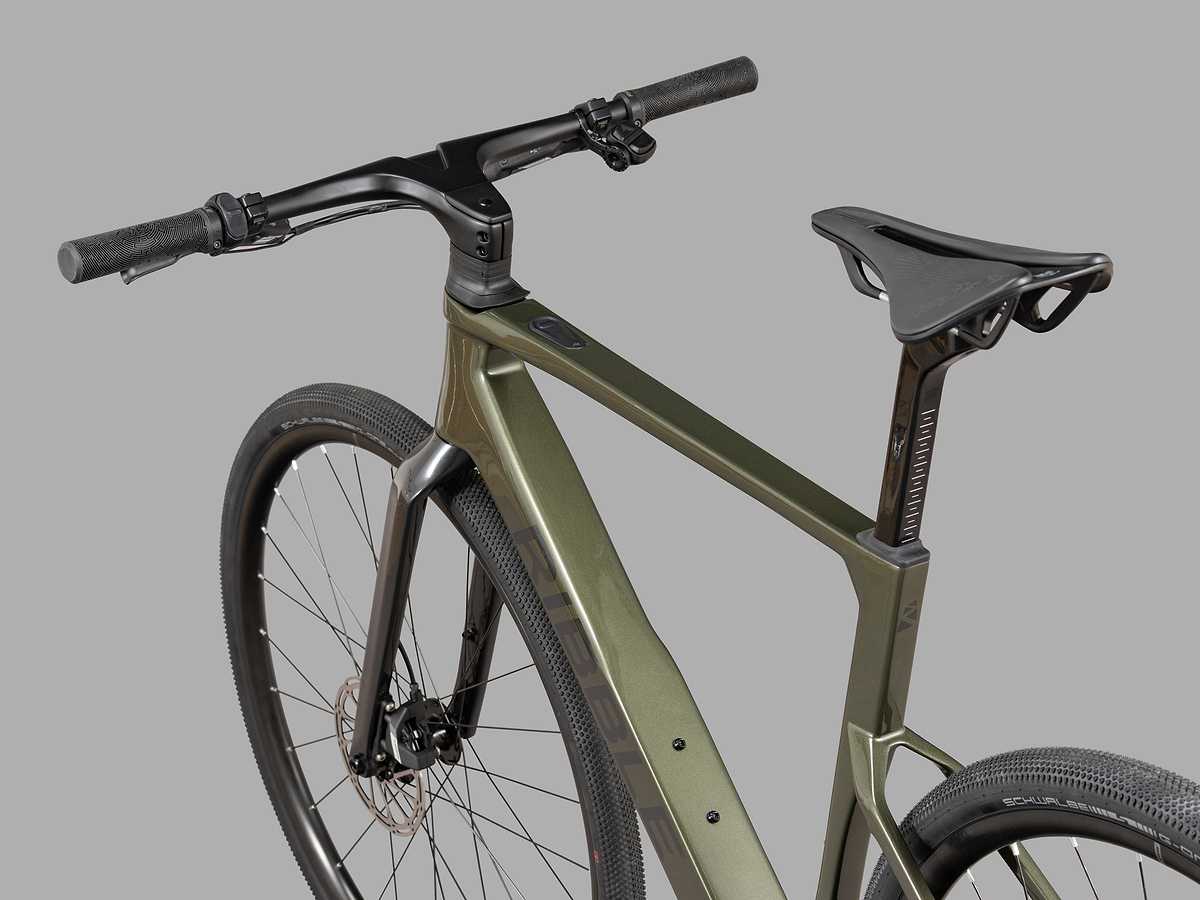

The new Ribble one-piece carbon cockpit enhances performance while sharpening the bike’s aesthetic with clean lines and fully integrated cabling. Its relaxed, upright position improves control and visibility across mixed terrain, while ergonomic grips boost all-day comfort and confident handling on back lanes, gravel and everything in between. The integrated Duo handlebar control unit lets you manage assistance levels effortlessly without taking your hands off the bars, so you can stay focused on the ride.

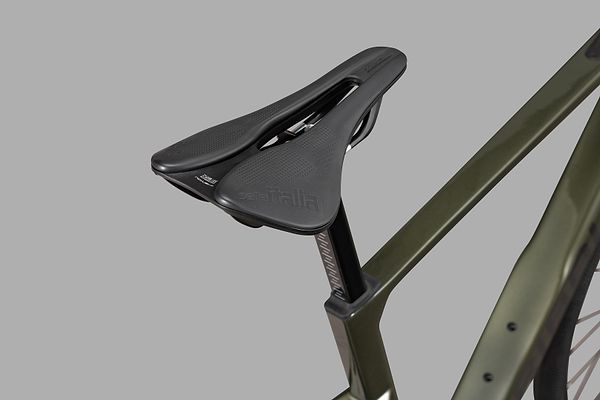

Saddle
Stay stable and comfortable over rough terrain. Our integrated seat clamp, proprietary D-shaped carbon seatpost, and Selle Italia Model X saddle combine to deliver outstanding rear-end compliance, smoothing out trail chatter for improved comfort and all-day performance.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'7
159 - 169cm
5'6 - 5'9
167 - 176cm
5'9 - 5'11
174 - 181cm
5'10 - 6'1
179 - 186cm
6'0 - 6'4
184 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Active Charger 4A (with wall mount)
- Active Charging Point 6 Pin
- Allgrit / CGR E Carbon-X BB Battery Cover
- Apex 1 DUB Wide Crankset 165mm 40T
- Apex Flattop 12spd Chain 120 Links
- Apex XPLR AXS Rear Derailleur
- Blanking Door Alloy
- CGR E Carbon-X Carbon Fork Anthracite
- CGR E Carbon-X Frame Green XSM 47cm
- Carbon D-Shaped Inline Seatpost Matt Black - 280mm
- Carbon Integrated Riser Flat Bar Black 66cm x 90mm
- Centreline Rotor 6-Bolt Steel Bolts 160mm
- Chainstay Protector
- Charger Wire For UK
- Closed End Flat Bar Grips Black
- Compression Bushing Fits Stealth-a-Majig System AL
- DB-S300-A1 Brake Lever & Caliper LH 1900mm
- DB-S300-A1 Brake Lever & Caliper RH 950mm
- Disc Caliper Bolt Black 27mm
- Duo Remote Handlebar Mounted Power Button - 750mm
- EC-AXS-POD-D1 AXS Pod Controller RH
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Flat Washer 1mm x M5 x 9mm SSA2
- G2 SLR SLRE Front Mech Blanking Plate
- IWOC One Head Unit - Std
- Integrated Seatpost Wedge
- M3 10mm Hex 2 Countersunk P0.5 SSA2
- M3 12mm T10 Countersunk P0.5 Black
- M4 12mm Hex 3 Domehead P0.7 SSA2
- M5 12mm Hex 2.5 Grub P0.8 Black
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 15mm Hex 3 Domehead P0.8 Black
- M5 16mm Hex 3 Countersunk P0.8 Black
- M5 8mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 T Bolts E-Bikes 8mm Rear Rotor Battery Fitment
- M6 30mm Hex 5 Cap Head P1.0 SSA4
- MY24/25 Carbon Rubber Seat Clamp Cover
- MY24/25 Carbon UDH Rear Thru Axle
- MY24/25 Front Thru Axle
- Needle Insert Fits Stealth-a-Majig System SS
- Open Hose Door Oval Plastic
- PG1231 XPLR Cassette HG 11-44T
- Plastic Compression Spider 42mm ID +1.0
- Powerpack 1 Battery & Charger (cable not included)
- R457B Headset Bearing
- RS Spacer 10mm
- RS Spacer 5mm
- RS-2 Stem Headset Bearing Cover Kit
- Rubber Circular Bung - 10mm Domehead 8mm Post
- SRAM DUB Wide Adapter Set for PF46-30 (6 PCS)
- Seatpost Wedge Nut
- Seatpost Wedge Plug
- Starter Kit Black One Size
- Thru Axle Lever
- Universal Derailleur Hanger
- Warning sticker sheet Torques to be applied at PDI
- X20 Dropout Drive Unit Connection Battery Motor
- X20 TCS PF46-30 Bottom Bracket
- X20 iX3+ Battery Pack
- X20-30 Quick Guide
Wheelset
- Allroad 1 Mahle 6-Bolt Front Wheel
- Allroad 1 Mahle X20 GEN2 Rear Wheel 700c 6B
- G-One Allround RaceGuard Folding Tyre Black 700x40mm
- Inner Tube SV17 700x28/47 Presta 40mm
- X20 Drive Unit Freewheel & Nut SHIMANO HG GEN 2
Saddle
- Selle Italia Model X Light FeC Saddle
Frequently Asked Questions
If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.
Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.
- 105 Di2 build: 12.4 kg
- Ultegra Di2 build: 12.3 kg
- SPORTFIT: 12.0 kg
- Frame only (medium): 920 g
Like all Ribble bikes, the CGR E CARBON-X SPORTFIT is covered by a lifetime warranty on frame and forks for the original purchaser. This includes any manufacturing defects in materials or workmanship. The standard manufacturer's warranty applies to all other components.
Range depends on rider weight, terrain, tyre pressure, and temperature. As a guide, a 90 kg rider on mixed routes can expect up to 140 km on a full charge. Add the optional eX1 range extender, which increases the range by up to 55 km.
Yes. The CGR E CARBON-X SPORTFIT is pedal-assisted, so it always requires rider input. Stop pedalling and it coasts to a stop. Just like a regular bike.
Absolutely. The motor only provides assistance when you pedal. You’re always in full control of speed and handling.
No. You don’t need a licence, tax or insurance to ride pedal-assisted electric bikes in the UK. That said, we always recommend having some form of bike insurance.
Yes, the CGR E CARBON-X SPORTFIT is eligible for Cycle to Work.

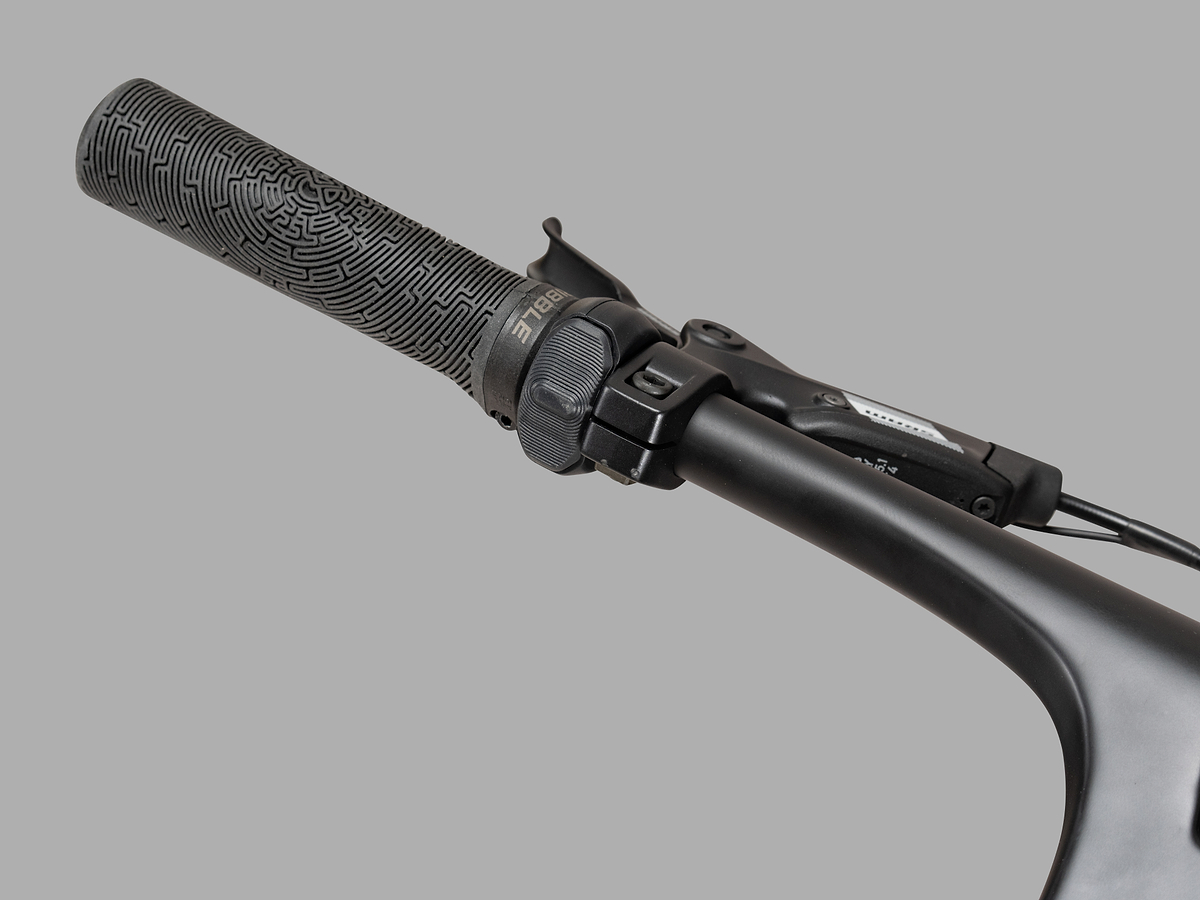

The Duo handlebar remote allows you to adjust assistance levels with a single press, providing effortless and intuitive control at your fingertips. Assistance levels are shown as follows:
- White: off
- Green: minimum
- Orange: medium
- Purple: maximum
- Cyan: smart assist via app
The CGR E CARBON-X's X20 control uses seven LEDs to display battery charge.
- Fully lit = 94–100%
- Fewer lights = lower charge
- Slow blinking = 0–10%
- Fast blinking = critically low
Just plug into any standard socket using the supplied charger. The optional range extender can also be used to charge the main battery on the go.
Yes. Book a test ride at our Clitheroe showroom or one of our UK demo events. Just contact the showroom in advance to reserve your bike.
Yes. The CGR E CARBON-X SPORTFIT’s electrical components are IP54 rated for splash protection but should not be jet washed or fully immersed. Use a waterproof cover when transporting in wet conditions.
Yes. A MAHLE-certified technician can remove the battery by accessing it through the bottom bracket shell.
The CGR E CARBON-X SPORTFIT's iX3 battery is designed to handle around 500 full charge cycles with minimal degradation, provided it is stored and maintained correctly.
Yes. The CGR E CARBON-X SPORTFIT features integrated cable routing for a clean look and protection from the elements.
The CGR E CARBON-X SPORTFIT comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.
Yes, you can fit a rear rack using our exclusive pannier rack adaptor kit, boosting carrying capacity by up to 15 kg (kit sold separately).
No, it is not approved for use with child safety seats.
Yes. A removable mudguard bridgemakes fitting mudguards easy (kit sold separately).
The frame accepts a PF46 press-fit bottom bracket with an integrated torque sensor.
The CGR E CARBON-X SPORTFIT features a 1.5” integrated headset and R457B 52 x 42 x 7mm 45° x 45° headset bearings top and bottom.
The CGR E CARBON-X comes with a D-shaped carbon seatpost available in inline or setback options and two lengths, making it easy to dial in the fit for different frame sizes.
Two. The CGR E CARBON-X has mounts on the seat tube and downtube, both positioned for easy access and compatibility with Ribble aero bottle cages.
Thru Axles:
- Front: M12 x 1.5 mm x 123mm
- Rear: M12 x 1.5mm x 174 mm
It uses a universal derailleur hanger (UDH), standardising hanger design across all bikes. That means no more hunting for a frame-specific hanger with just one simple, universal solution.
The maximum recommended system weight for the CGR E CARBON-X is 120 kg, including bike, rider, and luggage.
The CGR E CARBON-X SPORTFIT comes with a single-ring chainring (1x) and fits smaller 31-48T gravel-specific versions, but not a road compact 50-34T.
Yes, the bike comes with a set of flat platform pedals for general use.
