Description

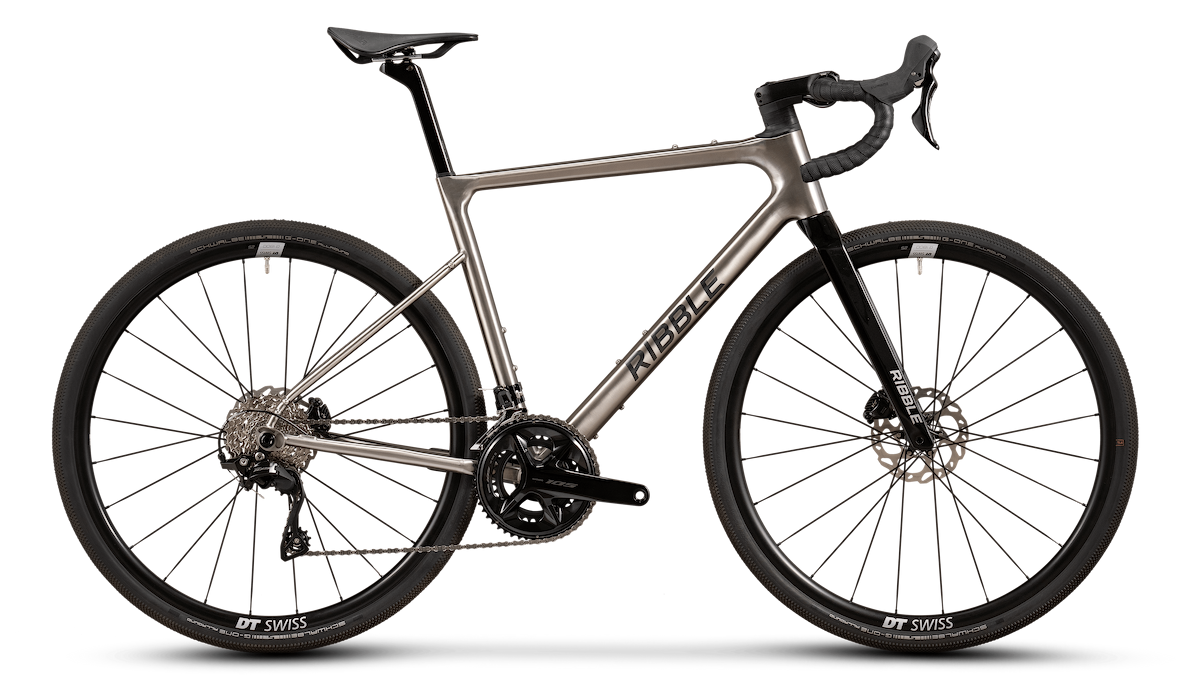

The CGR Ti-X is an elegant, versatile titanium all-rounder that pairs the proven go-anywhere CGR design with the strength, comfort and longevity of triple-butted titanium. Lightweight, responsive and compliant, it's built to ride further, more often, for longer. Shimano’s 105 12-speed groupset keeps shifting sharp on road or trail, while DT Swiss wheels and 40 mm Schwalbe G-One Allround tyres bring the grip, speed and comfort. Finished with a Selle Italia Model X saddle, it’s ready for whatever you throw at it.

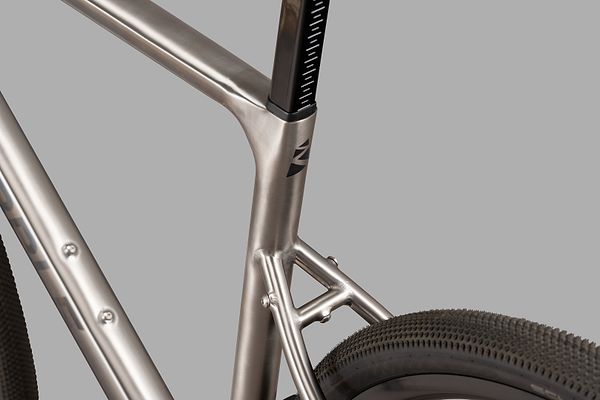

Frameset

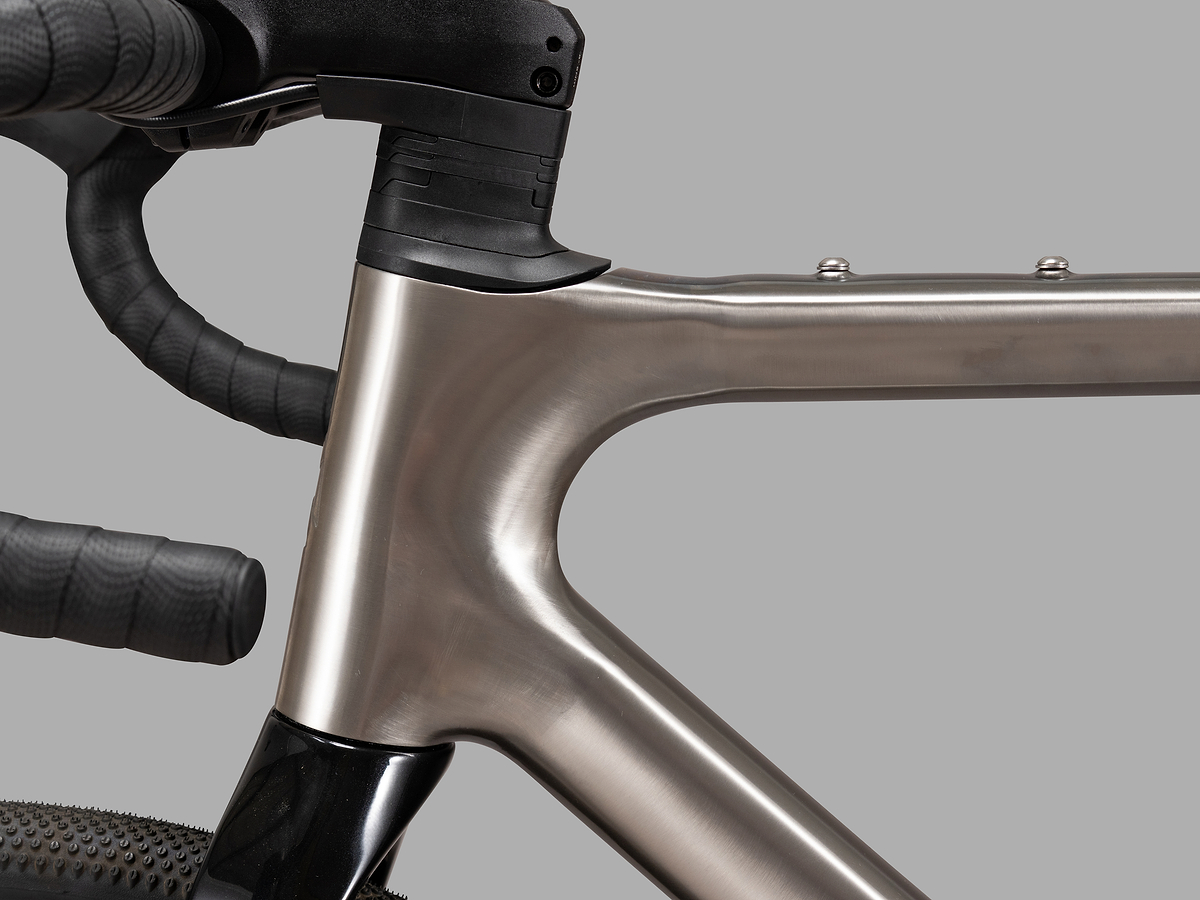

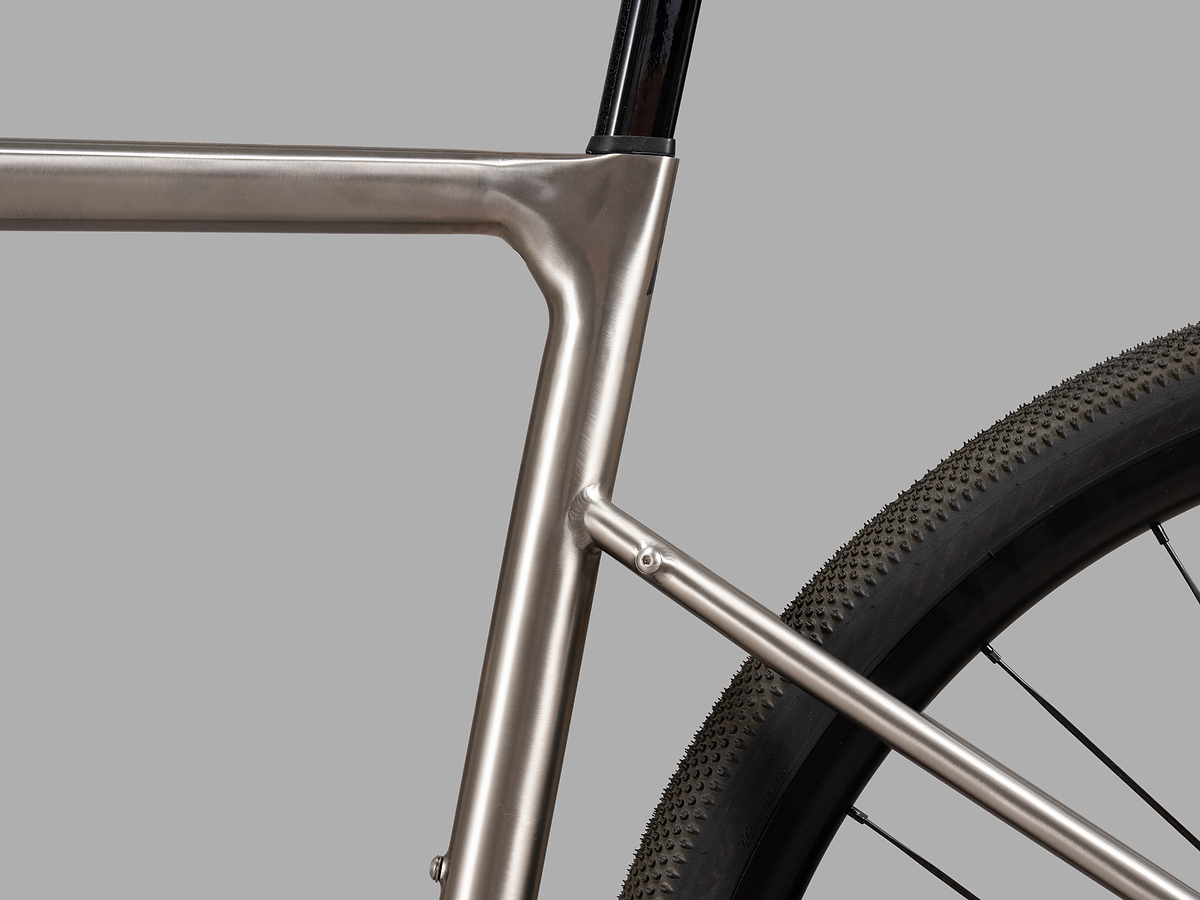

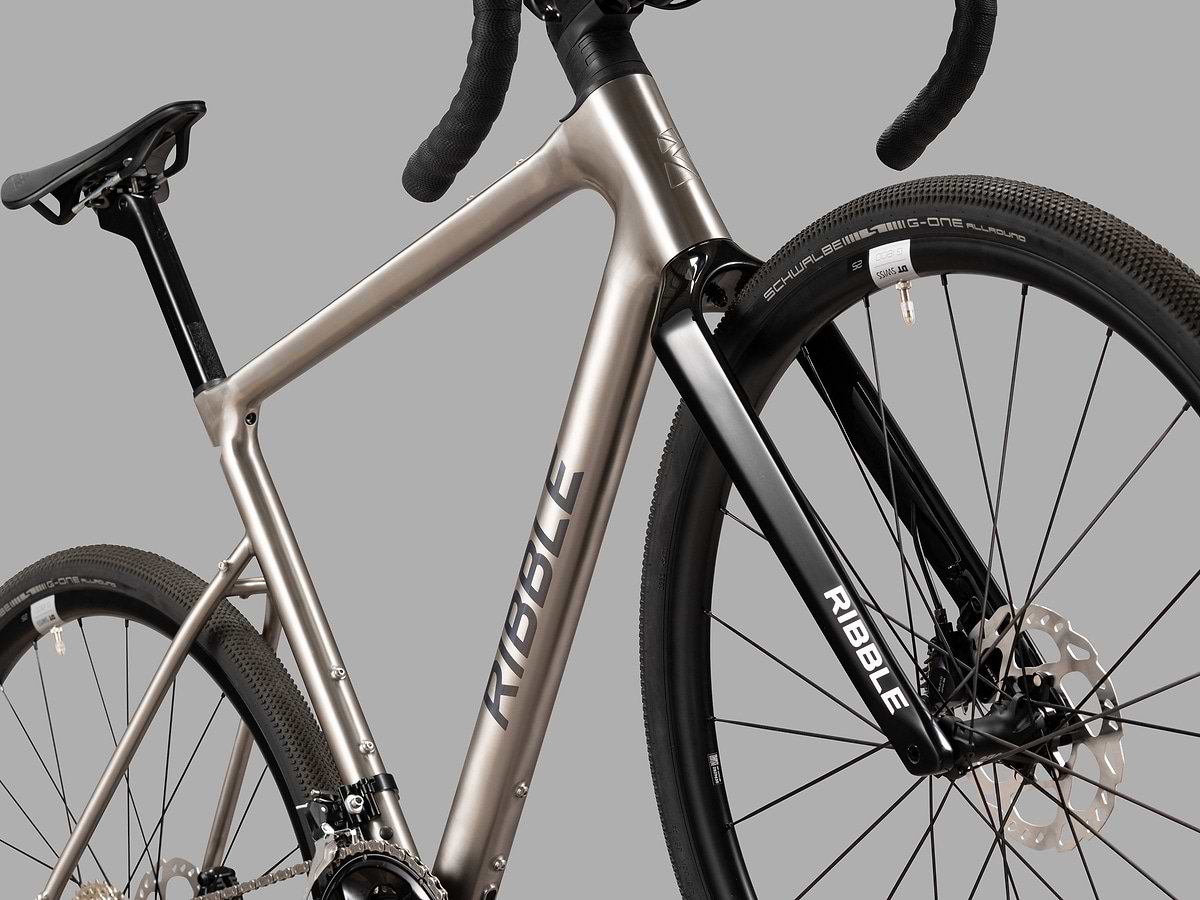

The CGR Ti-X is our premium all-rounder built from precision-engineered titanium—for fast miles on road or gravel. 3D-printed frame parts push the limits of what's possible in ti, blending traditional craftsmanship with the latest cutting-edge tech. It's tough, naturally resistant to corrosion, and smooth as silk to ride. Over time, the hand-finished surfaces pick up a unique patina that tells the story of every ride. With aero touches like the widened fork and headtube blend, it’s built for speed without losing the supple ride feel that makes titanium special.

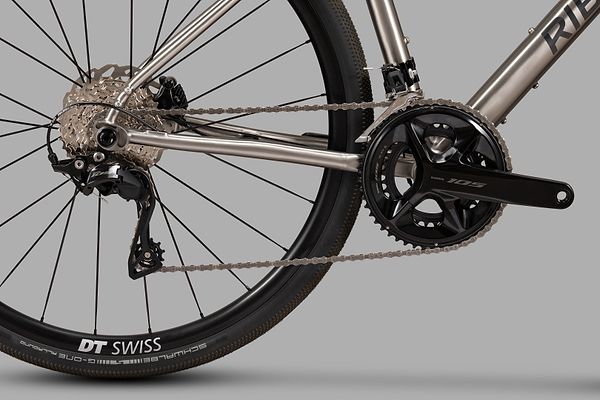

Groupset
Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. 105 7100 combines pure cycling with pure craftmanship. Inspired by 105 Di2, this versatile drivetrain delivers the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level.

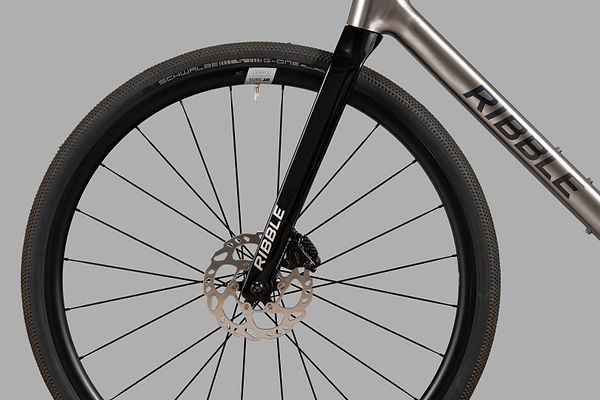

Wheelset
Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

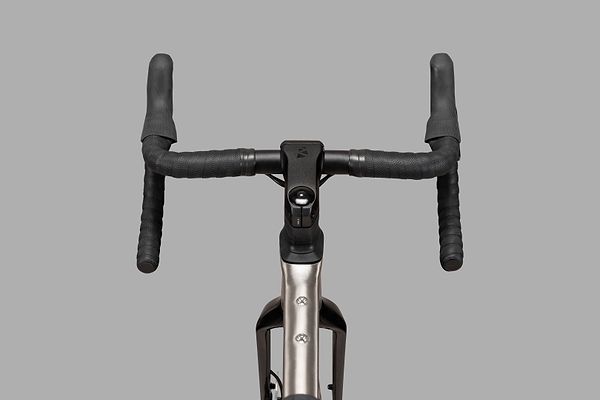

Handlebars

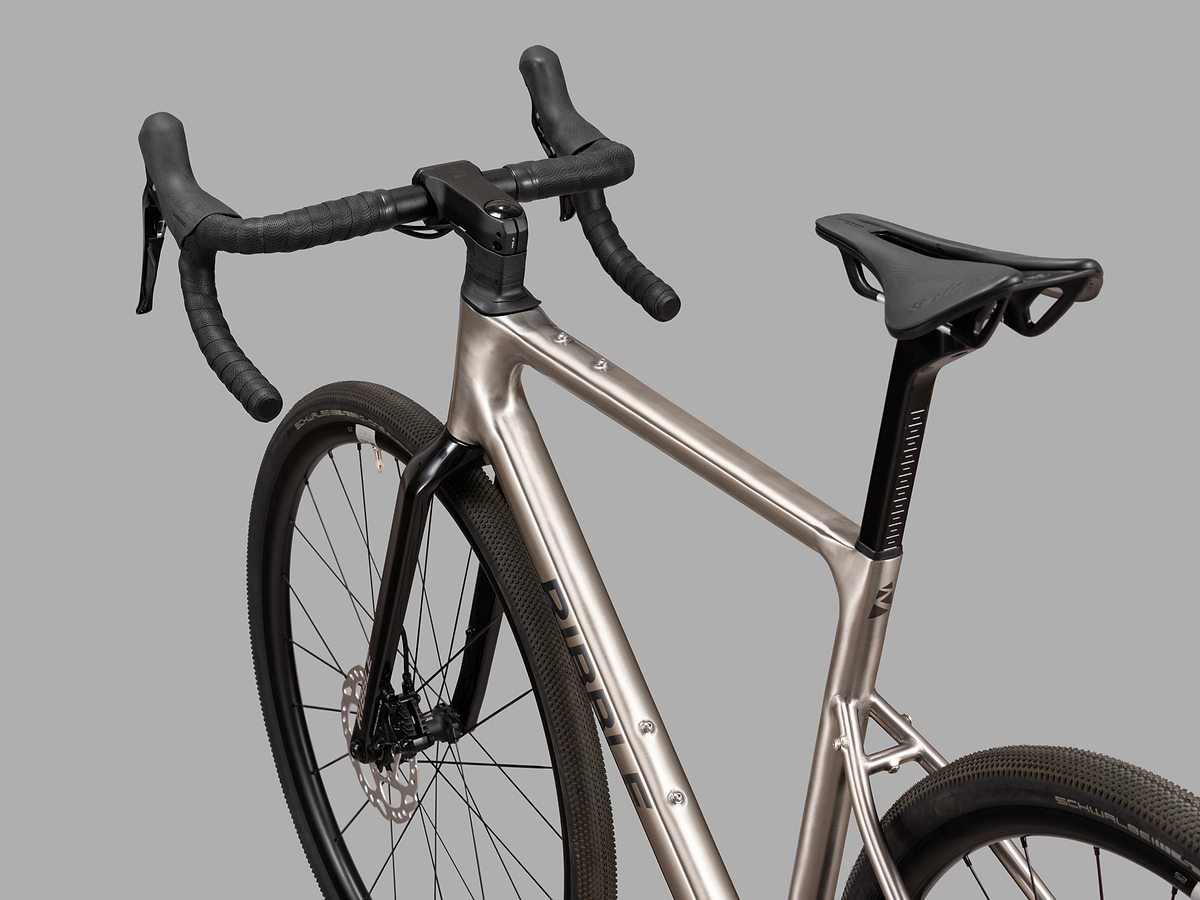

Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke, whether you’re heading out for an hour or all day.

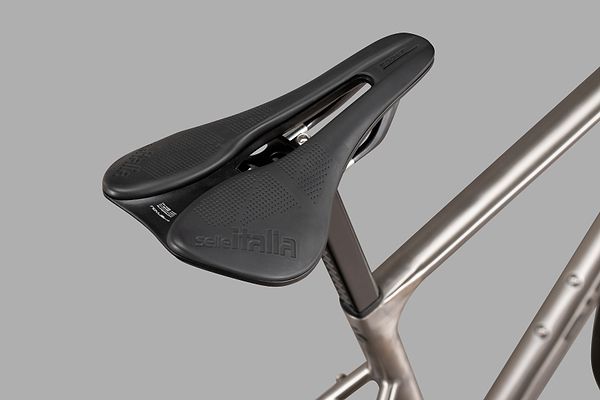

Saddle
Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped carbon post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'7
159 - 169cm
5'6 - 5'9
167 - 176cm
5'9 - 5'11
174 - 181cm
5'10 - 6'1
179 - 186cm
6'0 - 6'4
184 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- CGR Ti-X Carbon Fork Black
- CN-M7100 SLX 12spd Chain 126 Links
- CS-HG710 12spd Cassette HG 11-36T
- Carbon D-Shaped Setback Seatpost Gloss Black - 280mm
- Chainstay Protector
- D-Shaped Rubber Seat Clamp Cover
- Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
- Disc Caliper Bolt Black 32mm
- Embossed Black Bar Tape
- FD-R7100 105 12spd Front Derailleur Braze On
- Flat Washer SS (A4) 1mm x M5 x 10mm Silver
- Front Mech Clamp 34.9mm
- Jagwire LEX-SL Gear Cable Outer - Black 1m
- M3 6mm Hex 2 Countersunk Black
- M5 10mm Hex 3 Domehead P0.8 SSA2
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 15mm Hex 3 Domehead P0.8 SSA2
- MY24/25 Front Thru Axle
- MY25 Ti/AL Seatpost Wedge Kit
- MY25/26 Ti UDH Rear Thru Axle - 169mm
- Plastic Shift Cable Housing Ferrule 4.2mm
- R7100 105 Chainset (No Powermeter)
- RD-R7100 105 12spd Rear Derailleur
- RT-CL700 SI Rotor with Lockring 160mm
- Rubber Circular Bung - 10mm Domehead 7mm Post
- ST-R7120 105 STI Lever & BR-R7170 Caliper 12spd RH
- ST-R7120 105 STI Lever & BR-R7170 Caliper 2X LH
- Short Door - Ti Alloy - Single Hole Without Stop
- T47 68mm Shimano 24mm Threaded Bottom Bracket
- Thru Axle Lever
- Ti-X Frame XSM 47cm
- Universal Derailleur Hanger
- Warning sticker sheet Torques to be applied at PDI
Wheelset
- G-One Allround RaceGuard Folding Tyre Black 700x40mm
- G1800 Disc Front Wheel 700c CL
- G1800 Disc Rear Wheel 700c CL HG
- Inner Tube SV17 700x28/47 Presta 40mm
Handlebar
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Level Alloy Handlebar
- Plastic Compression Spider 42mm ID +1.0
- R457B Headset Bearing
- RS Spacer 10mm
- RS Spacer 5mm
- RS-2 Standard Cable Guide
- RS-2 Stem Headset Bearing Cover Kit
Saddle
- Selle Italia Model X Light FeC Saddle
Frequently Asked Questions
If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.
Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.
- 105 build: 10.0 kg
- 105 Di2 build: 9.9 kg
- Ultegra Di2 build: 9.6 kg
- SPORTFIT: 9.5 kg.
- Frame only (medium): 1700 g
The CGR TI-X includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.
The CGR Ti-X SPORTFIT offers the same ride and versatility, but comes with flat bars for a more upright and confident position. It’s a step up from a typical hybrid, focused on delivering unmatched comfort and control for riders of all levels.
The CGR Ti-X features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.
The CGR Ti-X comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.
Yes, you can fit a rear pannier rack using the built-in mounts to boost carrying capacity by up to 15 kg.
The frame utilises traditional 90-degree mounting points, so not all pannier racks will be compatible. Quick-release racks with limited adjustment may not be compatible. For advice on suitable options, please contact us.
No, it is not approved for use with child safety seats.
Yes. The CGR Ti-X's integrated frame mounts make fitting mudguards easy.
The CGR Ti-X uses a threaded 68mm T47 threaded bottom bracket.
The CGR Ti-X features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.
The CGR Ti-X comes with a D-shaped carbon seatpost in setback or inline options and two lengths, making it easy to dial in the fit across different frame sizes.
The CGR Ti-X features two bottle cage mounts: one on the downtube and one on the seat tube. Ribble’s stainless steel bottle cages are the perfect complement, pairing functional durability with a finish that echoes the timeless look of titanium.
The CGR TI-X includes extra luggage mounts on the top tube and underneath the downtube.
Thru Axles:
- Front: M12 x 1.5 mm x 123mm
- Rear: M12 x 1.0 mm x 167.5-169 mm
The CGR Ti-X uses a universal derailleur hanger (UDH), standardising hanger design across bikes. That means no more hunting for a frame-specific hanger with just one simple, universal solution.
The maximum recommended system weight for the CGR Ti-X is 120 kg, including bike, rider, and luggage.
Pedals aren’t included, so you can choose the ones that suit your riding style.
