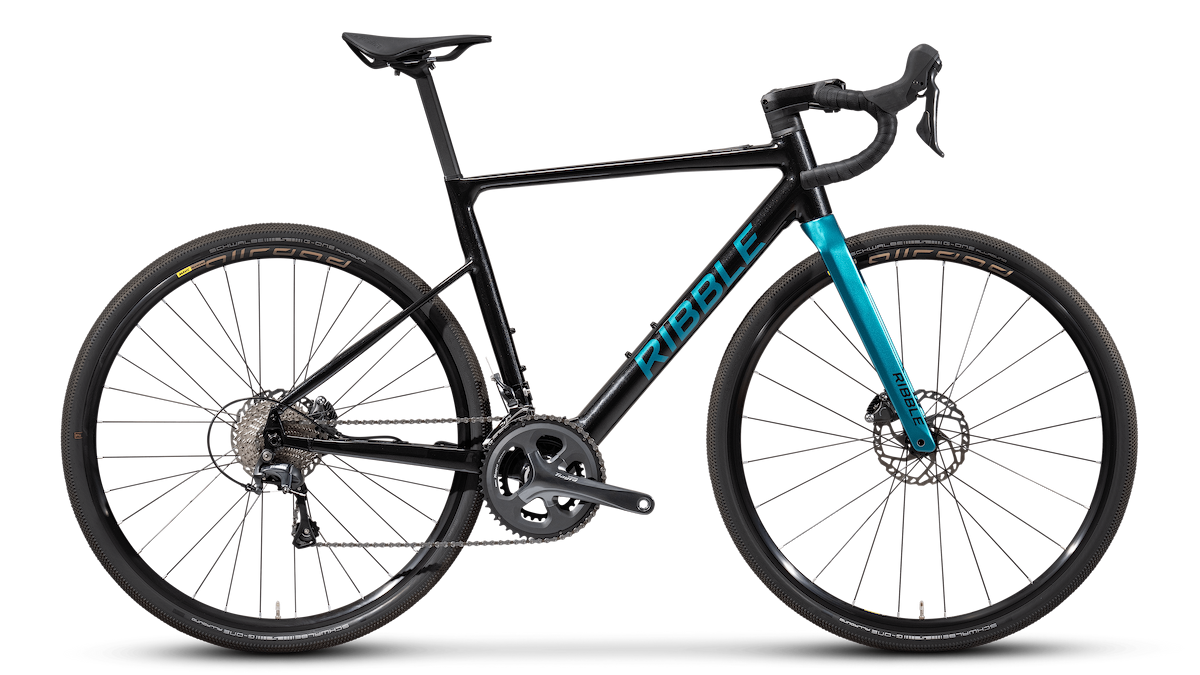

CGR E AL Tiagra
50% OFF RANGE EXTENDER
With every e-bike purchase. Limited time offer.
Ways to pay
Why Ribble?
BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.
LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.
30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.
30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.
BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.
Description
Wherever the ride takes you, the CGR E AL is ready. From city commutes to gravel tracks and weekend adventures, this do-it-all aluminium e-bike combines everyday practicality with confident all-surface performance. The 7005 hydroformed alloy frame is paired with the smooth and efficient MAHLE X30 rear hub e-drive system, providing a natural-feeling pedal assist that helps you ride further and tackle climbs with ease. With Shimano’s reliable Tiagra 10-speed gearing, durable Mavic Allroad wheels, fast rolling 40mm Schwalbe G-One Allround tyres and a Selle Italia Model X saddle, the CGR E AL is built for comfort, control, and versatility, wherever the road, path, or trail leads.

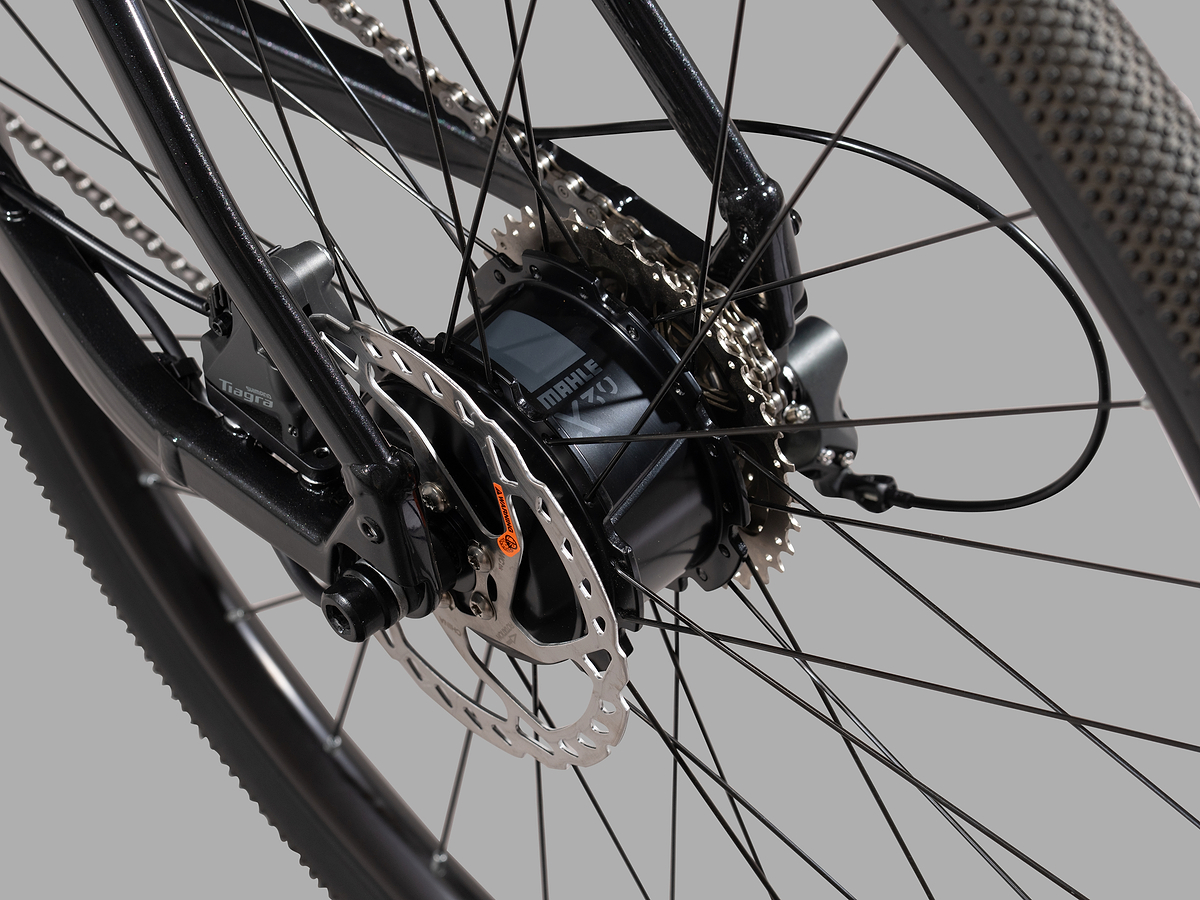

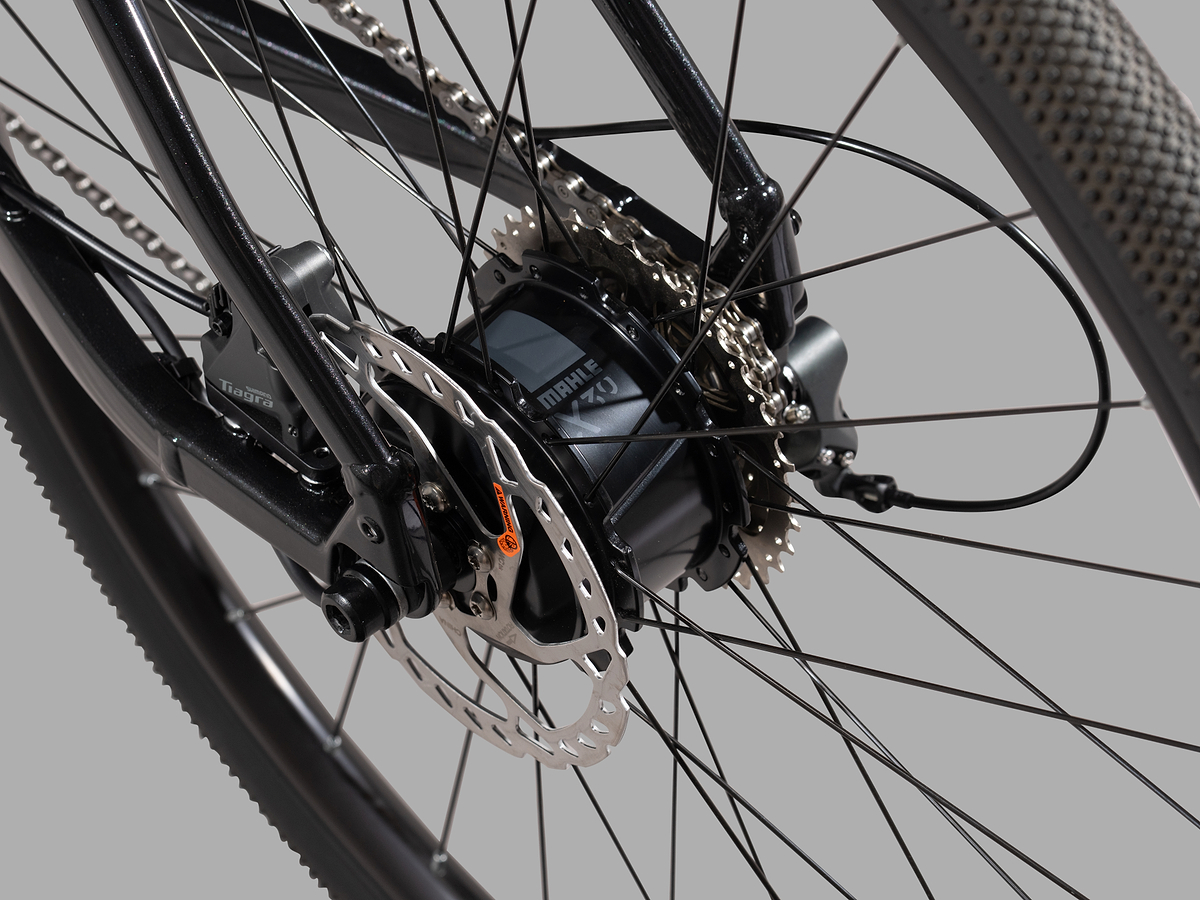

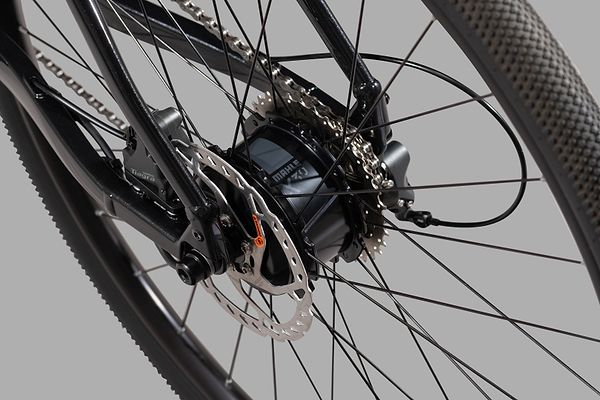

Electric Motor System
The Mahle X30 e-drive system delivers just the right level of assistance - light, quiet, and so seamlessly integrated, it fades into the background. Designed for mixed-terrain exploration, it offers a natural ride feel, an impressive range of 90km off one charge, and low-maintenance performance. With a lighter weight and over-the-air software updates, it’s as easy to live with as it is to ride.

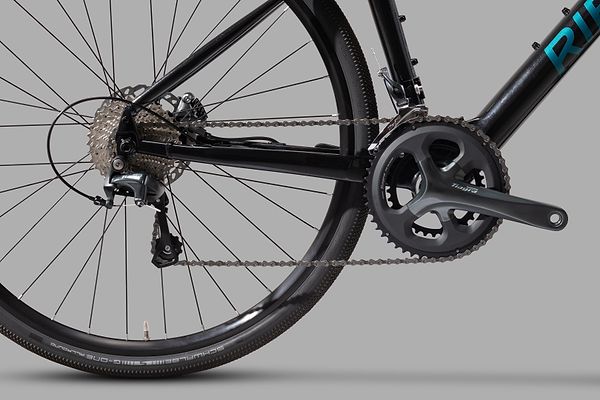

Groupset
Shimano Tiagra delivers impressive entry-level performance, drawing on technology cascaded from Shimano’s top-tier groupsets. The smooth, dependable shifting of the 2x10-speed Tiagra drivetrain ensures consistent performance in all conditions—perfect for riders building confidence and pushing their limits. Hydraulic disc brakes provide powerful, responsive stopping power, instilling confidence on high-speed descents and in wet or unpredictable weather. Whether you're commuting, training, or exploring new routes, Tiagra is built to support your journey, mile after mile.

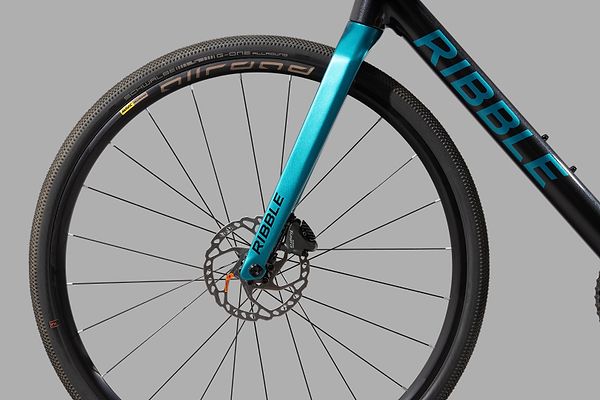

Wheelset
Designed to ride smoother and faster on dirt, gravel, and road, you can ride it all with confident control with the lightweight, durable, and responsive Mavic Allroad wheels with integrated MAHLE X30 motor. Paired with 40mm Schwalbe G-One tyres, this versatile combination is equally at home on hidden dirt tracks or fast-paced road rides.

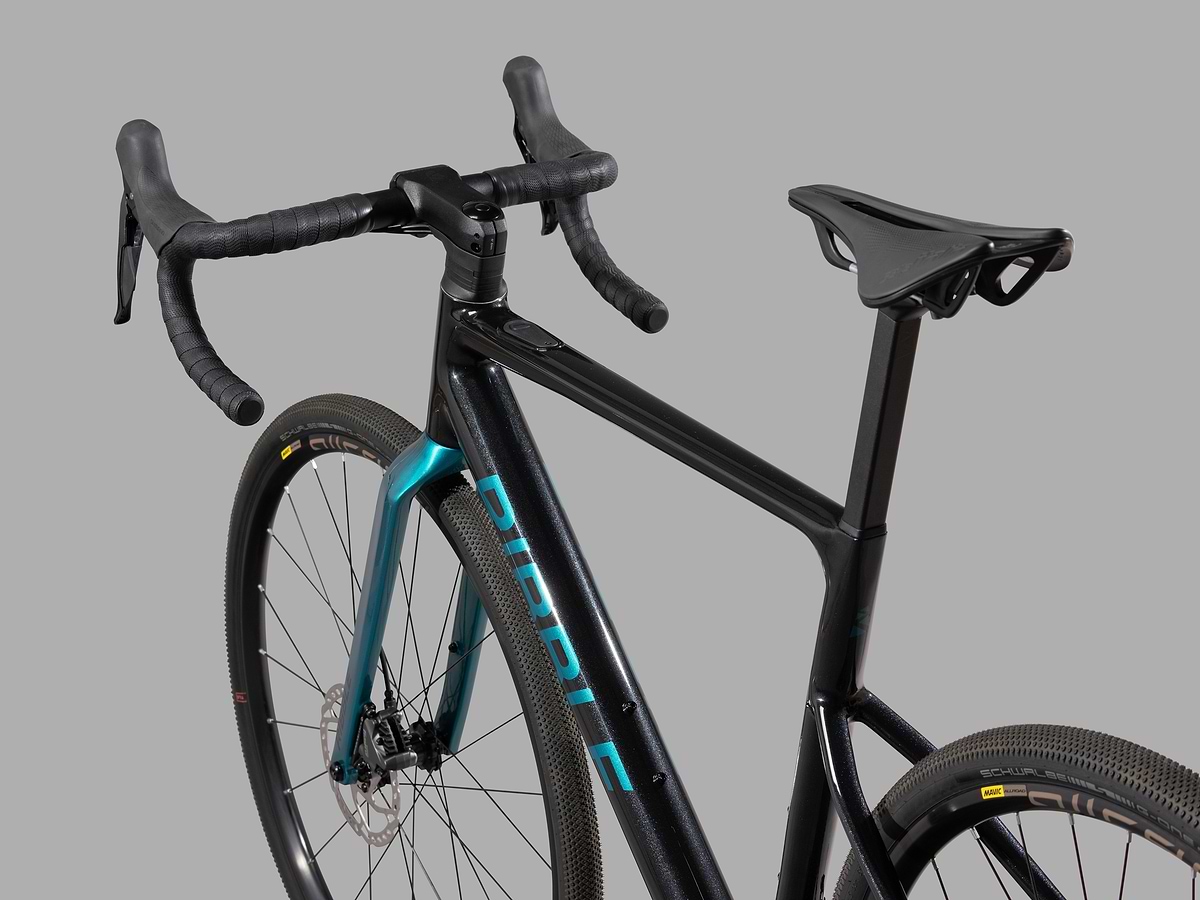

Handlebars
Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke—whether you’re heading out for an hour or all day.

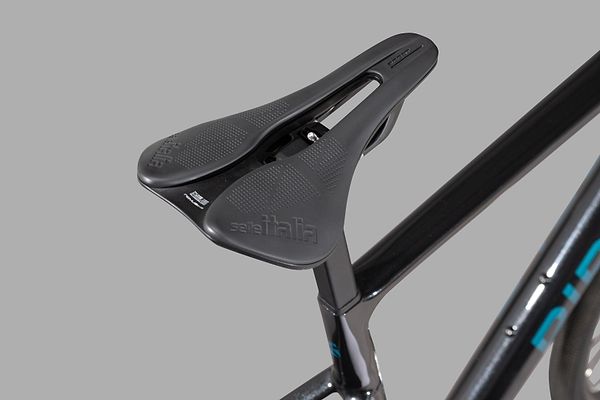

Saddle
Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped alloy post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'7
159 - 169cm
5'6 - 5'9
167 - 176cm
5'9 - 5'11
174 - 181cm
5'10 - 6'1
179 - 186cm
6'0 - 6'4
184 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Active Charger 4A (with wall mount)
- Active Charging Point 6 Pin
- C-Clips For Brake Hose Black
- CGR AL e G2 Carbon Fork C01
- CGR AL e G2 Frame C01 XSM 47cm
- CN-HG54 10spd Chain 116 Links
- CS-HG500 10spd Cassette HG 11-34T
- Chainstay Protector
- Charger Wire For UK
- D-Shaped Alloy Seatpost - 350mm
- D-Shaped Rubber Seat Clamp Cover
- Disc Brake Adapter Rear 160mm Flat to Flat
- Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
- Disc Caliper Bolt Black 32mm
- E AL Bottom Bracket Cover
- E AL Rear Derailleur Hanger
- Embossed Black Bar Tape
- FC-R4700 Tiagra 10spd Chainset 165mm 50-34T
- FD-R4700 Tiagra Front Derailleur Braze On
- Front Mech Clamp 34.9mm
- IWOC One Head Unit - Std
- Inline Cable Adjuster 5mm
- Jagwire LEX-SL Gear Cable Outer - Black 1m
- M3 12mm T10 Countersunk P0.5 Black
- M3 6mm Hex 2 Countersunk Black
- M4 12mm Hex 2.5 Countersunk P0.7 Black
- M40417 1.75mm Freehub Spacer
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 8mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 T Bolts E-Bikes 8mm Rear Rotor Battery Fitment
- MY24/25 Front Thru Axle
- MY25 Ti/AL Seatpost Wedge Kit
- Plastic Shield
- Plastic Shift Cable Housing Ferrule 4.2mm
- RD-4700 Tiagra Medium Cage Rear Derailleur
- RT66 6-Bolt Disc Rotor 160mm
- ST-4720 Tiagra STI Lever & BR-4770 Caliper 10sp RH
- ST-4720 Tiagra STI Lever & BR-4770 Caliper 2X LH
- Short Door - Ti Alloy - Single Hole With Stop
- Short Door - Ti Alloy - Single Hole Without Stop
- Thru Axle Lever
- Warning sticker sheet Torques to be applied at PDI
- X20 TCS PF 46x24mm Bottom Bracket
- X20-30 Quick Guide
- X30 Axle Lock Nut
- X30 Axle Washer Nut
- X30 Motor Wire Connection
- X30 iX2+ Battery Pack
Wheelset
- Allroad Disc Front Wheel 700c 6B 12mm TL
- Allroad Mahle X30 6-Bolt Rear HG
- G-One Allround RaceGuard Folding Tyre Black 700x40mm
- Inner Tube SV17 700x28/47 Presta 40mm
Handlebar
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Level Alloy Handlebar
- Plastic Compression Spider 42mm 0.0mm Offset
- R457B Headset Bearing
- RS Spacer 10mm
- RS Spacer 5mm
- RS-2 Round Headset Bearing Cover for AL
- RS-2 Standard Cable Guide
Saddle
- Selle Italia Model X Light FeC Saddle
Frequently Asked Questions
If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.
Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.
- Tiagra build: 14.1 kg
- 105 build: 13.9 kg
- SPORTFIT: 13.7 kg
- Frame only (medium): 1900 g
Like all Ribble bikes, the CGR E AL is covered by a lifetime warranty on frame and forks for the original purchaser. This includes any manufacturing defects in materials or workmanship. The standard manufacturer's warranty applies to all other components.
The CGR E AL range depends on rider weight, terrain, tyre pressures, and temperature. Typically, a 90 kg rider on mixed routes can expect up to 90 km, with an optional eX1 range extender increasing this by up to 60 km.
Yes. The CGR E AL is pedal-assisted, so it always requires rider input. Stop pedalling and it coasts to a stop. Just like a regular bike.
Absolutely. The motor only provides assistance when you pedal. You’re always in full control of speed and handling.
No. You don’t need a licence, tax or insurance to ride pedal-assisted electric bikes in the UK. That said, we always recommend having some form of bike insurance.
Yes, the CGR E AL is eligible for Cycle to Work.
Press the main control button to cycle through the assistance levels:
- White: Off
- Green: Minimum
- Orange: Medium
- Purple: Maximum
- Cyan: Smart assist (via app)
The CGR E AL’s X30 control unit uses seven LEDs to display battery charge:
- Fully lit = 94-100%
- Fewer lights = lower charge
- Slow blinking = 0-10%
- Fast blinking = critically low
Just plug into any standard socket using the supplied charger. The optional range extender can also be used to charge the main battery on the go.
Yes, you can test ride the CGR E AL at our Clitheroe Showroom. Contact the showroom in advance to reserve your test bike.
Yes. The electrical system is IP54 rated for splash protection. Don’t jet wash or fully submerge the bike, and use a waterproof cover if transporting in wet conditions.
Yes. A MAHLE-certified technician can remove the battery by accessing it through the bottom bracket shell.
The CGR E AL’s MAHLE iX2 battery is designed to handle around 500 full charge cycles with minimal degradation, provided it's stored and maintained correctly.
The CGR E AL SPORTFIT offers the same ride and versatility, but with flat bars for a more upright and confident position. It’s a step up from a typical hybrid, designed for control, comfort and all kinds of riding.
Yes. The CGR E AL features integrated cable routing for a clean look and protection from the elements.
The CGR E AL comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.
Yes. The CGR E AL can be fitted with a rear pannier rack using our pannier rack adaptor kit, boosting carrying capacity by up to 15 kg (sold separately).
No, it is not approved for use with child safety seats.
Yes. A removable mudguard bridge makes fitting mudguards easy (kit sold separately). We also offer a combined mudguard and rack adaptor kit for anyone looking to fit both.
The CGR E AL uses a PF46 press-fit bottom bracket with an integrated torque sensor.
The CGR E AL features a 1.5” integrated headset and R457B 52 x 42 x 7mm 45° x 45° headset bearings top and bottom.
The CGR E AL uses a proprietary D-shaped alloy seatpost with 10 mm setback, and compatible with carbon or alloy saddle rails.
Two: one on the downtube and one on the seat tube, positioned to work with the Ribble seat tube aero bottle cage.
The CGR E AL uses:
- Front: M12 x 1.5 mm x 123mm thru axle
- Rear: Bolt-on
It features a proprietary derailleur hanger designed specifically for the MAHLE e-system, ensuring perfect alignment.
The maximum recommended system weight for the CGR E AL is 120 kg, including bike, rider, and luggage.
The CGR E AL comes with a 50-34T road compact chainset and doesn't fit smaller 46-40T gravel-specific versions.
Pedals aren’t included, so you can choose the ones that suit your riding style.
