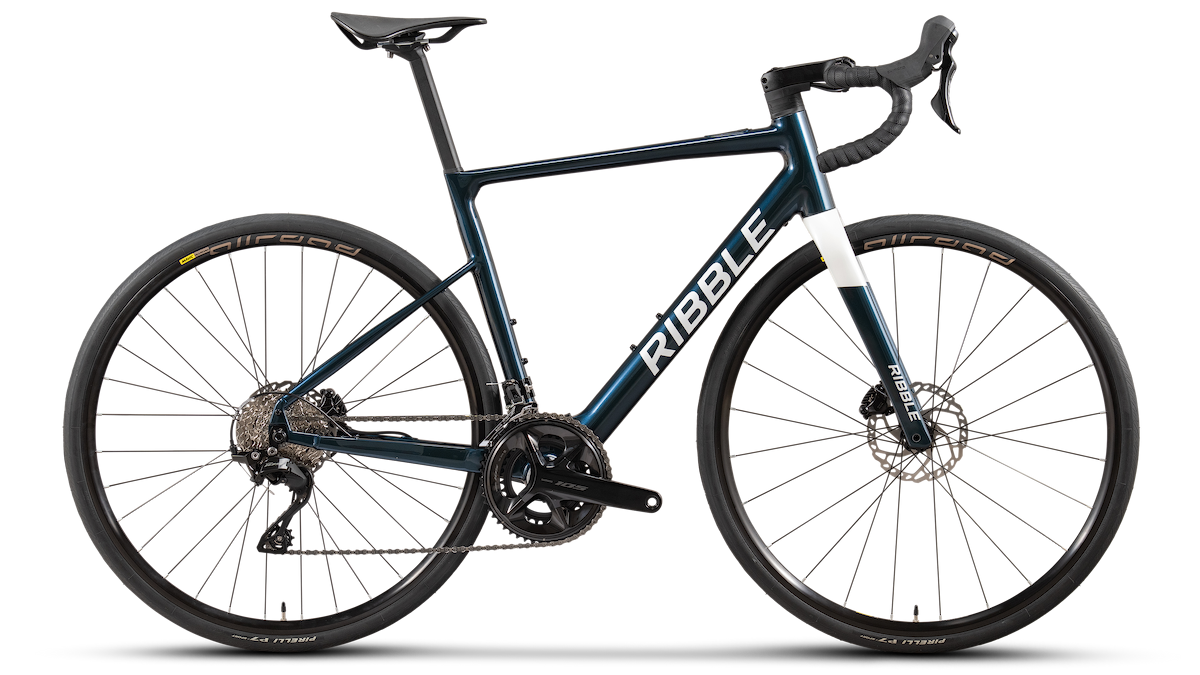

Allroad E AL 105

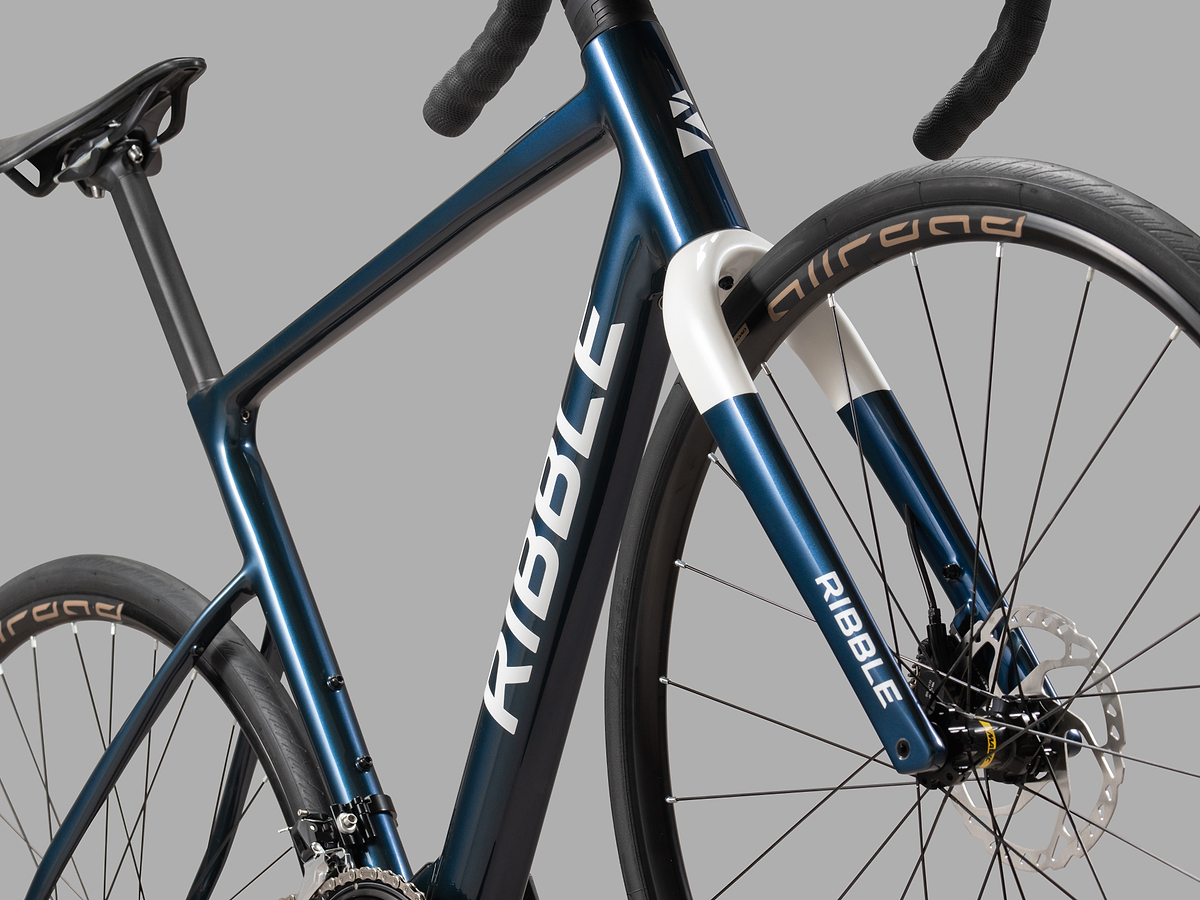

Allroad E AL 105 image 2

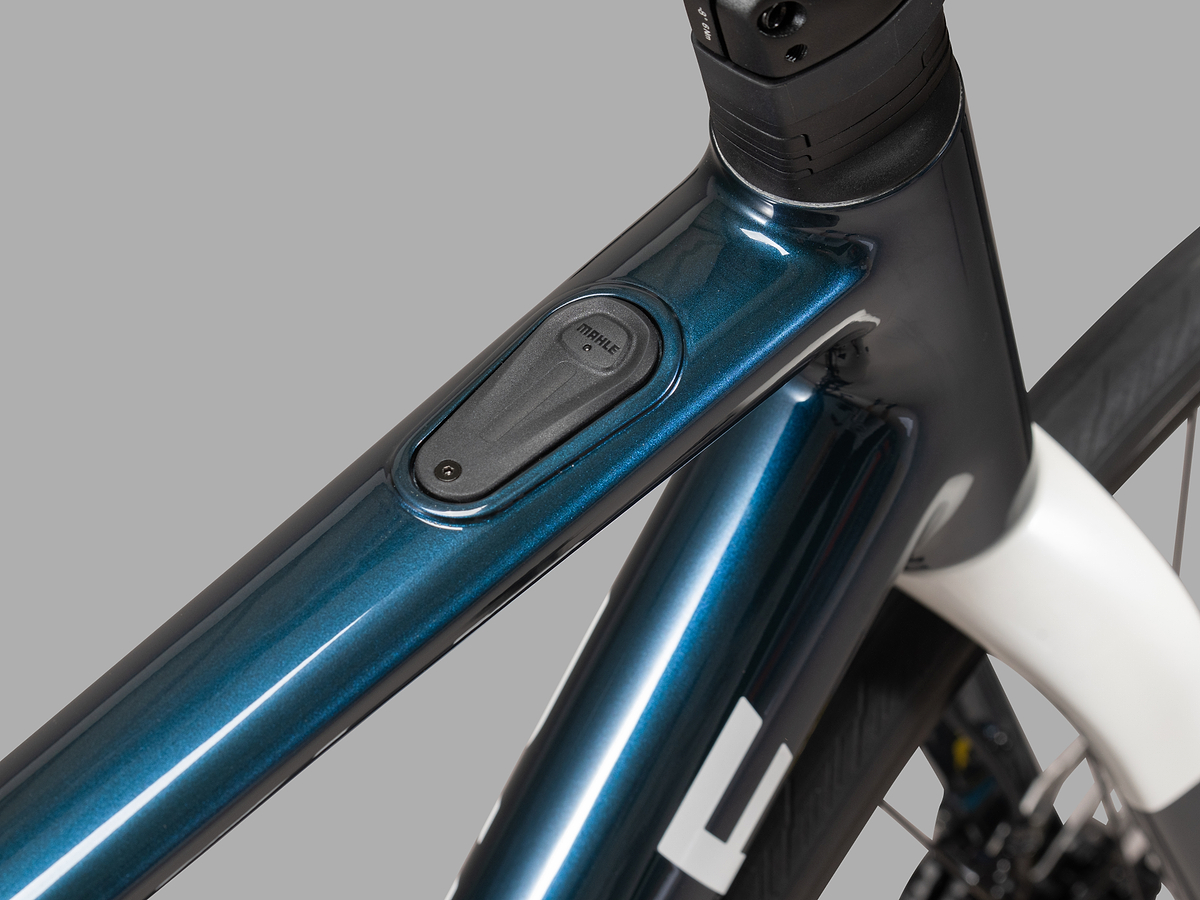

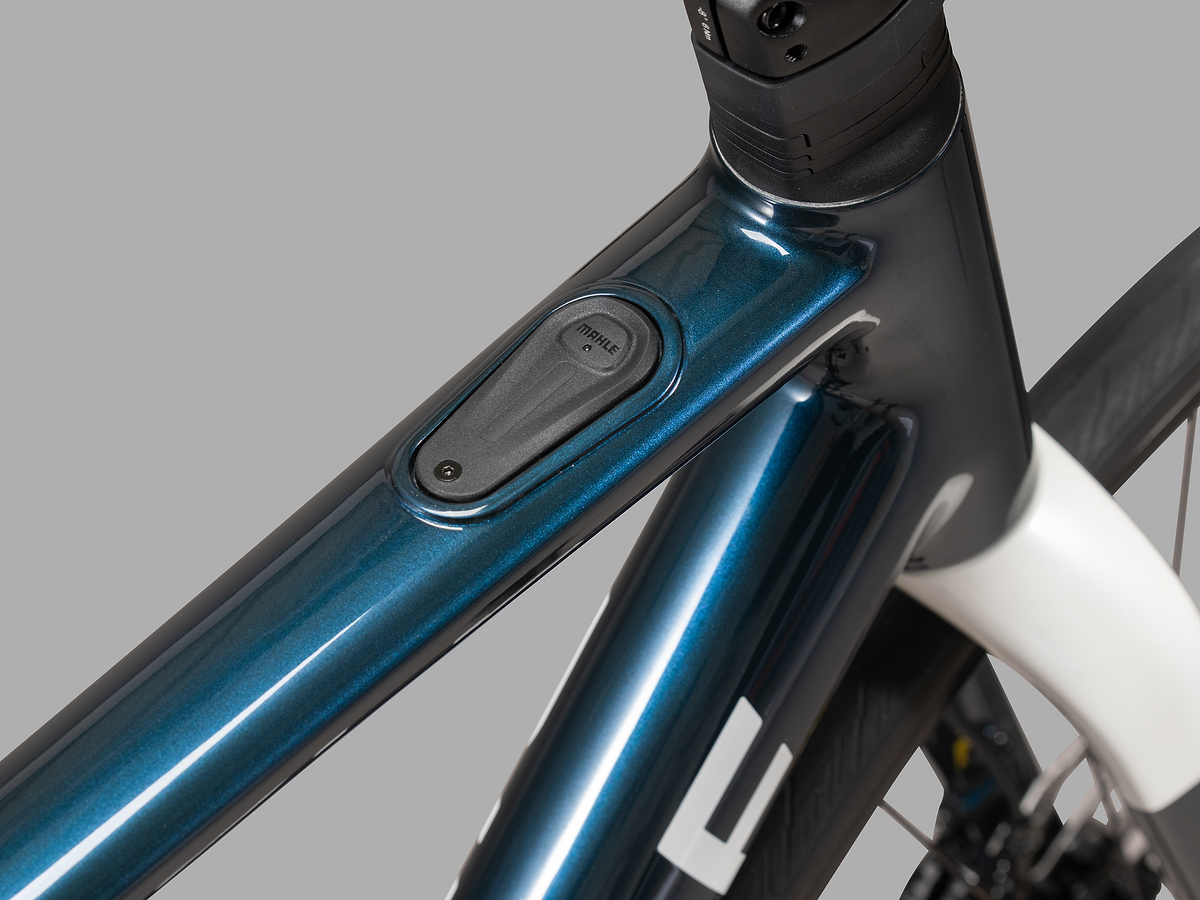

Allroad E AL 105 image 3

Allroad E AL 105

Built to order in the UK
Wherever the road takes you, the ALLROAD E AL is ready. From busy city streets to sweeping coastal loops and rolling countryside climbs, this versatile aluminium e-road bike is built to handle it…
£3,149
V12 Finance·Klarna·PayPal
Colour
Choose Your Size
Product code: BALLRALE7100D

50% OFF RANGE EXTENDER

With every e-bike purchase. Limited time offer.

Ways to pay

Why Ribble?

BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.

LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.

30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.

30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.

BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.

Description

Wherever the road takes you, the ALLROAD E AL is ready. From busy city streets to sweeping coastal loops and rolling countryside climbs, this versatile aluminium e-road bike is built to handle it all. With stealthy power assist and all-day comfort, the ALLROAD E AL lets you ride farther, climb more easily, and explore further. Weighing just 13.7 kg, it pairs our lightweight 7005 alloy frame with the subtle and intuitive MAHLE X30 e-drive system, the premium precision of Shimano’s 105 12-speed mechanical groupset, durable Mavic Allroad wheels, grippy Pirelli P7 Sport tyres and a unisex Selle Italia Model X saddle.

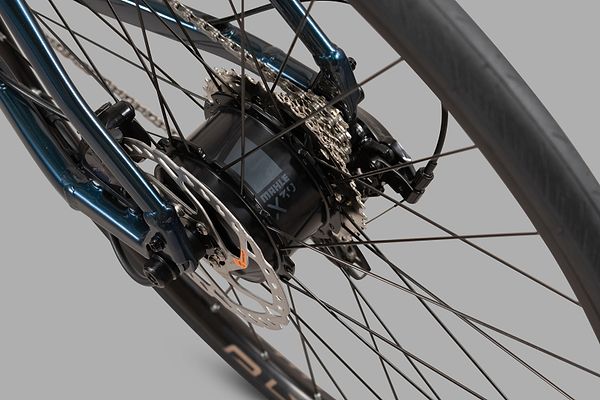

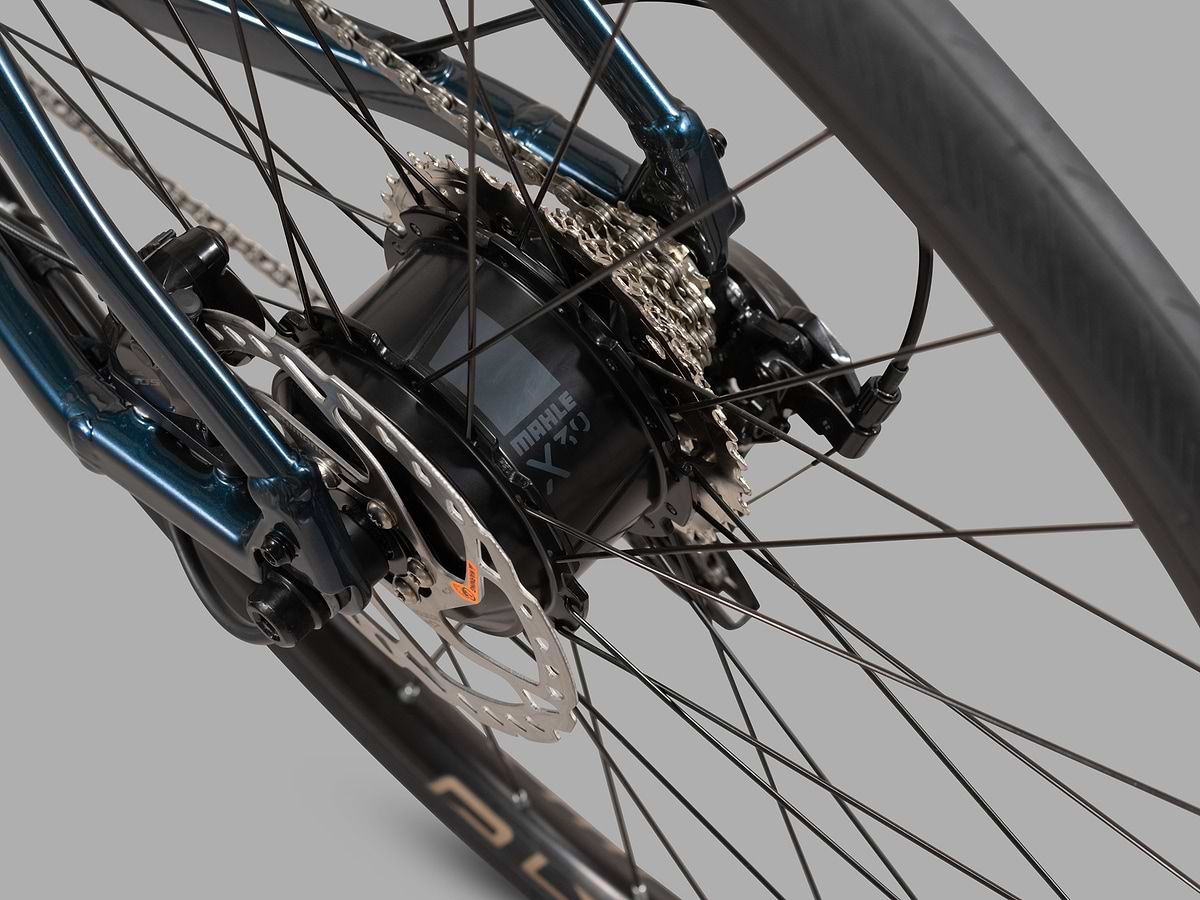

Electric Motor System

The Mahle X30 e-drive system delivers just the right level of assistance - light, quiet, and so seamlessly integrated, it fades into the background. Designed for mixed-terrain exploration, it offers a natural ride feel, an impressive range of 90km off one charge, and low-maintenance performance. With a lighter weight and over-the-air software updates, it’s as easy to live with as it is to ride.

Electric Motor System

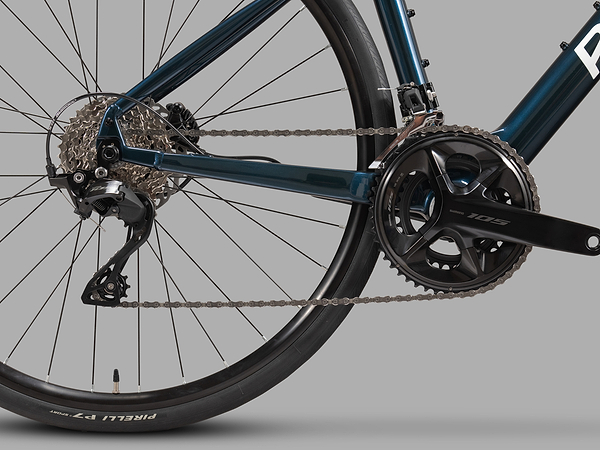

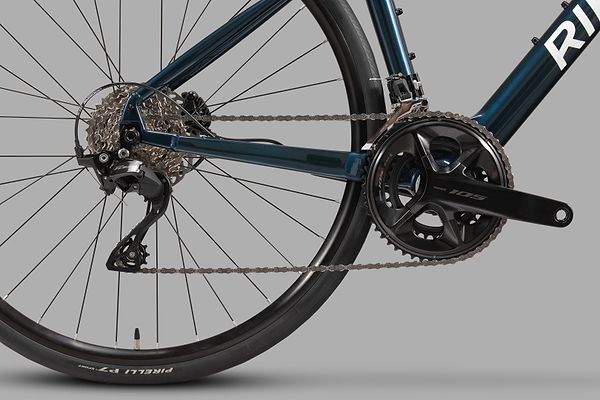

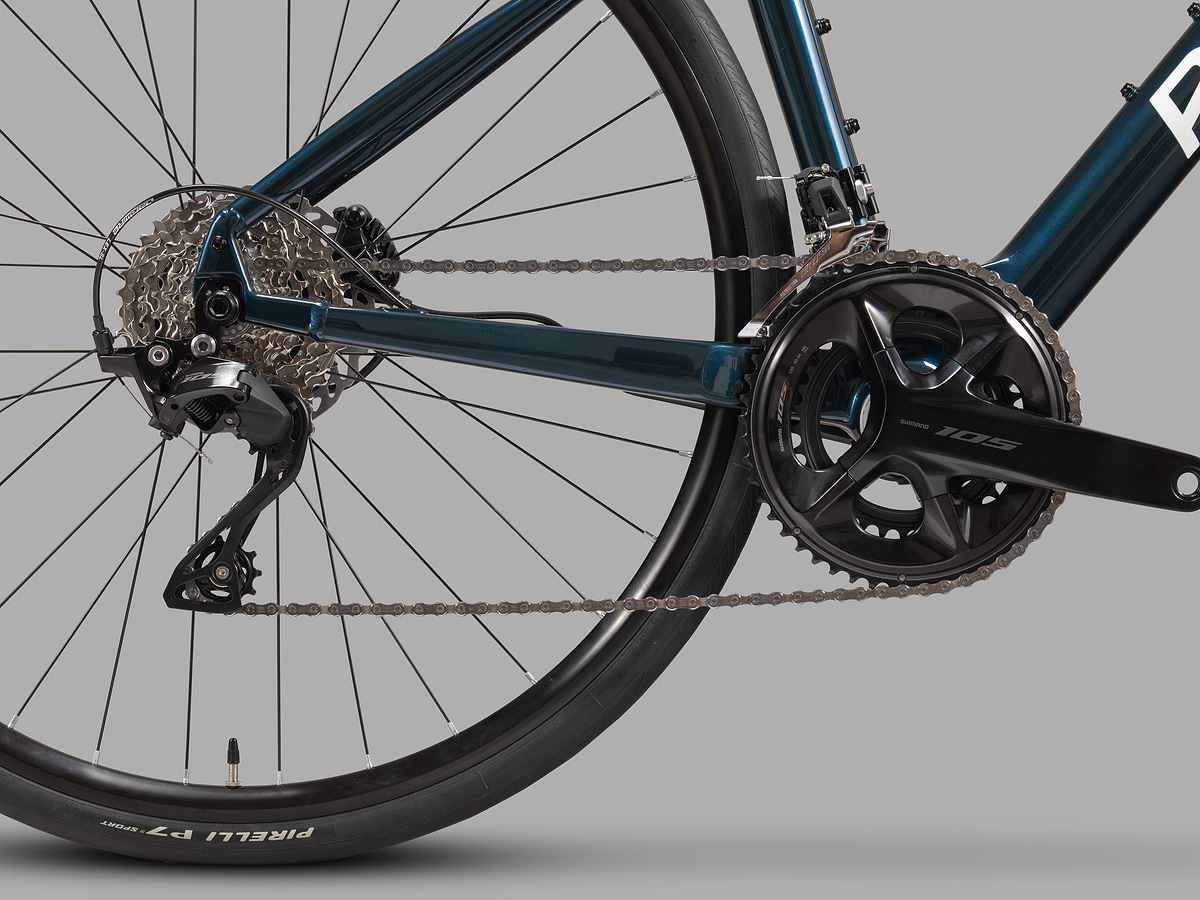

Groupset

Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. 105 7100 combines pure cycling with pure craftmanship. Inspired by 105 Di2, this versatile drivetrain delivers the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level.

Groupset

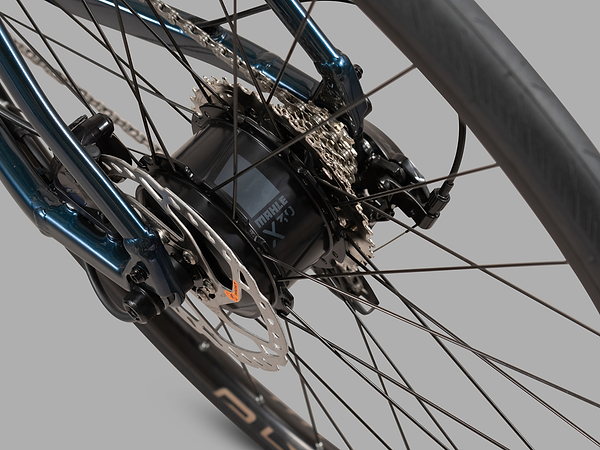

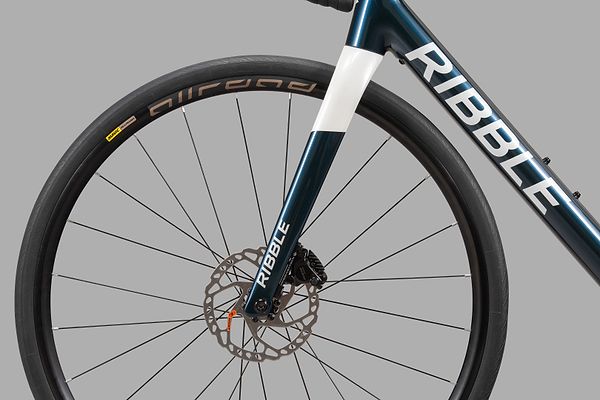

Wheelset

Designed to ride smoother and faster on dirt, gravel, and road, you can ride it all with confident control with the lightweight, durable, and responsive Mavic Allroad wheels with integrated MAHLE X30 motor. Paired with the ultimate all-round training tyre, the Pirelli P7 Sport offers improved durability and confident all-condition control for both road racers and everyday riders.

Wheelset

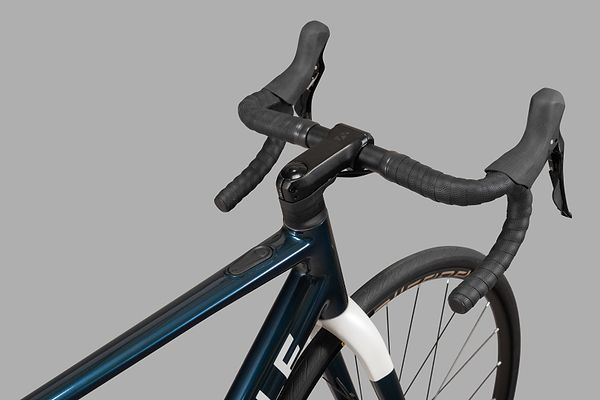

Handlebars

Ribble alloy handlebars are designed with everyday riders in mind, offering a compact shape with a shorter drop and reach for easy, natural transitions between the tops, hoods, and drops. The ergonomic profile helps reduce strain and promotes all-day comfort, letting you find your ideal riding position with minimal adjustment. Paired with a matching alloy stem and wrapped in plush bar tape, they deliver a confident, comfortable feel on every ride, whether it's a quick spin or a full day in the saddle.

Handlebars

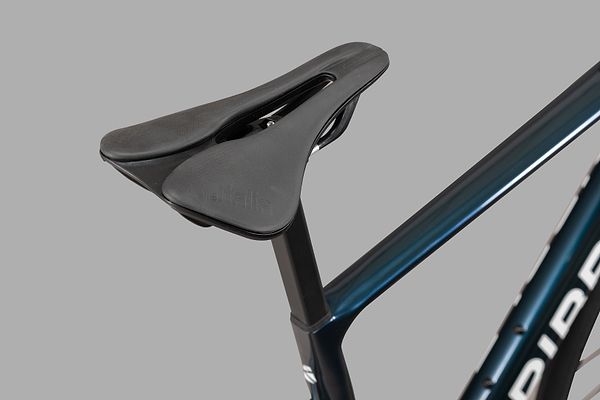

Saddle

The lightweight D-shaped alloy seat post offers the perfect blend of strength and low weight, with a two-bolt design for easy saddle adjustment. It’s paired with the unisex Selle Italia Model X saddle, featuring gel padding, and a Superflow cutout for enhanced comfort on longer rides.

Saddle

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

  • 5'3 - 5'6

    160 - 168cm

  • 5'6 - 5'9

    168 - 175cm

  • 5'9 - 5'11

    175 - 180cm

  • 5'11 - 6'1

    180 - 185cm

  • 6'1 - 6'4

    185 - 194cm

Full Spec

Please note that the exact specification below will differ based on the size and specification you select.

  • Bike

    • Active Charger 4A (with wall mount)
    • Active Charging Point 6 Pin
    • Allroad E AL Carbon Fork Midnight Metallic Blue
    • Allroad E AL Frame Blue XSM 45cm
    • C-Clips For Brake Hose Black
    • CN-M7100 SLX 12spd Chain 126 Links
    • CS-HG710 12spd Cassette HG 11-36T
    • Chainstay Protector
    • Charger Wire For UK
    • D-Shaped Alloy Seatpost - 350mm
    • D-Shaped Rubber Seat Clamp Cover
    • Disc Brake Adapter Rear 160mm Flat to Flat
    • Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
    • Disc Caliper Bolt Black 32mm
    • E AL Bottom Bracket Cover
    • E AL Rear Derailleur Hanger
    • Embossed Black Bar Tape
    • FD-R7100 105 12spd Front Derailleur Braze On
    • Front Mech Clamp 34.9mm
    • IWOC One Head Unit - Std
    • Jagwire LEX-SL Gear Cable Outer - Black 1m
    • M3 12mm T10 Countersunk P0.5 Black
    • M3 6mm Hex 2 Countersunk Black
    • M4 12mm Hex 2.5 Countersunk P0.7 Black
    • M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
    • M5 8mm Hex 4 Tapered Head P0.8 W/Washer Black
    • M5 T Bolts E-Bikes 8mm Rear Rotor Battery Fitment
    • MY24/25 Front Thru Axle
    • MY25 Ti/AL Seatpost Wedge Kit
    • Plastic Shield
    • Plastic Shift Cable Housing Ferrule 4.2mm
    • R7100 105 Chainset (No Powermeter)
    • RD-R7100 105 12spd Rear Derailleur
    • RT66 6-Bolt Disc Rotor 160mm
    • ST-R7120 105 STI Lever & BR-R7170 Caliper 12spd RH
    • ST-R7120 105 STI Lever & BR-R7170 Caliper 2X LH
    • Short Door - Ti Alloy - Single Hole Without Stop
    • Thru Axle Lever
    • Warning sticker sheet Torques to be applied at PDI
    • X20 TCS PF 46x24mm Bottom Bracket
    • X20-30 Quick Guide
    • X30 Axle Lock Nut
    • X30 Axle Washer Nut
    • X30 Motor Wire Connection
    • X30 iX2+ Battery Pack

  • Wheelset

    • Allroad Disc Front Wheel 700c 6B 12mm TL
    • Allroad Mahle X30 6-Bolt Rear HG
    • Inner Tube SV17 700x28/47 Presta 40mm
    • P7 Sport Tyre Black 700x32mm

  • Handlebar

    • Expander For Carb Steerer 1-1/8 x 65mm (Regular)
    • Level Alloy Handlebar
    • Plastic Compression Spider 42mm 0.0mm Offset
    • R457B Headset Bearing
    • RS Spacer 10mm
    • RS Spacer 5mm
    • RS-2 Round Headset Bearing Cover for AL
    • RS-2 Standard Cable Guide

  • Saddle

    • Model X Superflow Saddle

Frequently Asked Questions

If you're between sizes, we generally recommend choosing the smaller option. It's easier to fine-tune the fit of a smaller frame by raising the seat post or using a longer stem, whereas a larger frame leaves much less room for adjustment.

Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.

  • Tiagra build: 14.1 kg
  • 105 build: 13.7 kg
  • Frame only (medium): 1900 g

Like all Ribble bikes, the ALLROAD E AL is covered by a lifetime warranty on frame and forks for the original purchaser. This includes any manufacturing defects in materials or workmanship. The standard manufacturer's warranty applies to all other components.

Range for the ALLROAD E AL depends on rider weight, terrain, tyre pressures, and temperature. Typically, a 90 kg rider on mixed routes can expect up to 90 km, with an optional eX1 range extender increasing this by up to 60 km.

Yes. The ALLROAD E AL is a pedal-assisted e-bike and always requires rider input. If you stop pedalling, it will coast to a stop like a conventional bike.

Yes. The ALLROAD E AL's motor only provides pedal assistance and does not take control. You remain fully in charge of the bike at all times.

No. Pedal-assisted electric bikes neither require you to hold a valid driver’s licence nor pay any road tax or take out insurance. However, having some form of insurance on all bikes is always good practice.

Yes, the ALLROAD E AL is eligible for Cycle to Work.

Press the main control button to cycle through assistance levels on the ALLROAD E AL. LED colours show the level: White (zero), Green (minimum), Orange (medium), Purple (maximum), Cyan (smart assist via app).

The ALLROAD E AL’s X30 control unit shows battery charge with seven LEDs. Fully lit means 94–100%, gradually decreasing to slow blinking at 0–10%, and fast blinking warns of critically low charge.

Simply plug the ALLROAD E AL’s battery into a household socket using the supplied charger. An optional range extender can charge the battery if no socket is nearby.

Yes, you can test ride the ALLROAD E AL at our Clitheroe showroom or during UK demo events. Contact the showroom in advance to reserve your test bike.

Yes. The ALLROAD E AL’s electrical components are IP54 rated for splash protection but should not be jet washed or fully immersed. Use a waterproof cover when transporting in wet conditions.

Yes. A MAHLE-certified technician can remove the battery by taking off the press-fit bottom bracket via the bottom bracket shell.

The MAHLE iX2 battery on the ALLROAD E AL is designed for around 500 charge cycles with minimal performance loss when maintained correctly.

Yes. The ALLROAD E AL features integrated cable routing for a clean look and protection from the elements.

The ALLROAD E AL comes equipped with fast-rolling, grippy 32 mm tyres and offers clearance for up to 38 mm (or 35 mm with mudguards).

Yes, our removable pannier rack adaptor kit makes it easy to attach a rear pannier, providing a practical solution for carrying your gear (rack adaptor kit sold separately).

Yes. A removable mudguard bridge kit makes fitting mudguards easy with tyres up to 35mm (kit sold separately). We also offer a combined mudguard and rack mounting kit for anyone looking to fit both.

The frame accepts a PF46 press-fit bottom bracket with an integrated torque sensor.

The ALLROAD E AL features a 1.5” integrated headset and R457B 52 x 42 x 7mm 45° x 45° headset bearings top and bottom.

The ALLROAD E AL comes with a proprietary 350 mm D-shaped alloy seat post, with a 10 mm setback, and is compatible with both carbon and alloy saddle rails.

Two. The ALLROAD E AL has mounts on the seat tube and downtube, both positioned for easy access and compatibility with standard bottle cages, such as the LEVEL Nylon Fibre Bottle Cage.

The ALLROAD E AL uses the following axles:

It features a proprietary derailleur hanger designed to work with the MAHLE e-system, ensuring perfect alignment.

The maximum recommended system weight for the ALLROAD E AL is 120 kg, including bike, rider, and luggage.

No. Pedals aren’t included as riders use different systems. You can, however, choose from a range of best-selling pedals when configuring your bike.
