Description

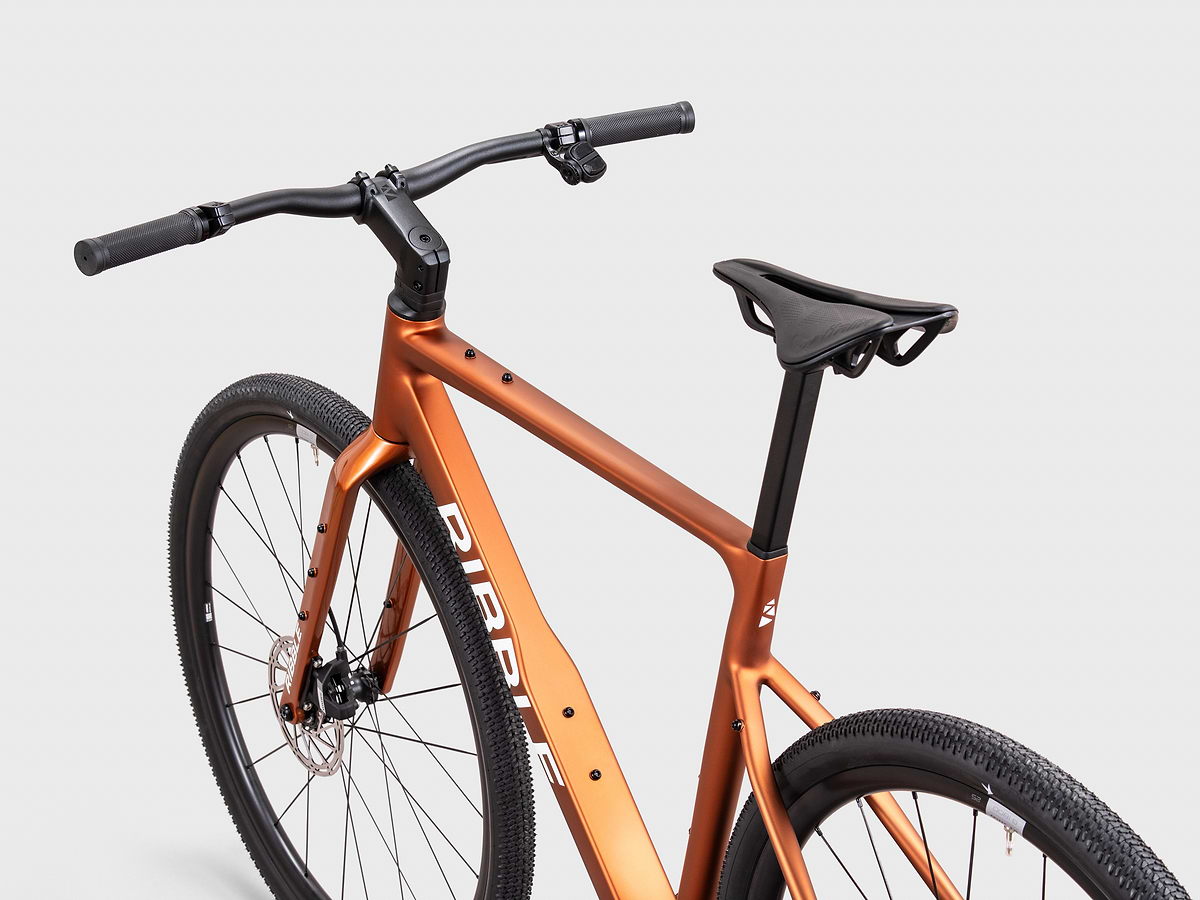

ALLGRIT AL SPORTFIT Apex XPLR AXS is built to make gravel riding feel easy, confident and genuinely fun. The more upright position and flat handlebars put you in control from the first mile, whether you’re heading out on a daily commute or stretching things into an all day gravel adventure. At just 10.0 kg, the lightweight 7005 aluminium frame pairs with fully wireless SRAM Apex XPLR AXS shifting, tough DT Swiss G 1800 alloy wheels and 45 mm Schwalbe G-One R Performance tyres to keep the ride smooth, stable and reassuring across mixed terrain. Finished with a comfortable Selle Italia Model X saddle, it’s a gravel bike that invites you to explore further, ride longer and enjoy every mile along the way.

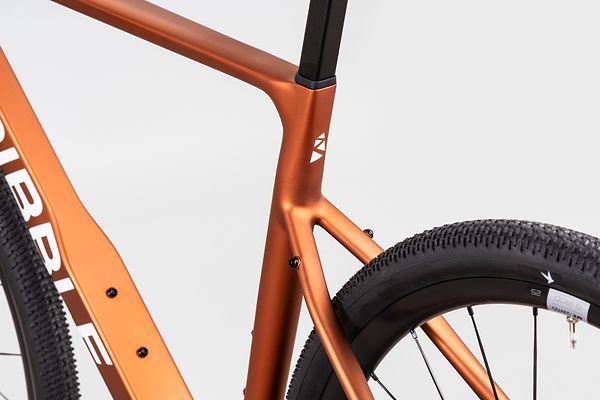

Frameset
Built from lightweight 7005 aluminium, this frameset feels quick, solid and ready to push on. The tube shaping helps it cut cleanly through the air, so speed comes easier whether you’re rolling fast or pressing on into a headwind. Hidden cables and smooth welds keep the look clean and uncluttered, giving it the sharp finish you’d expect from a much more expensive bike. Fast to ride, smooth on uneven terrain and easy on the eye.

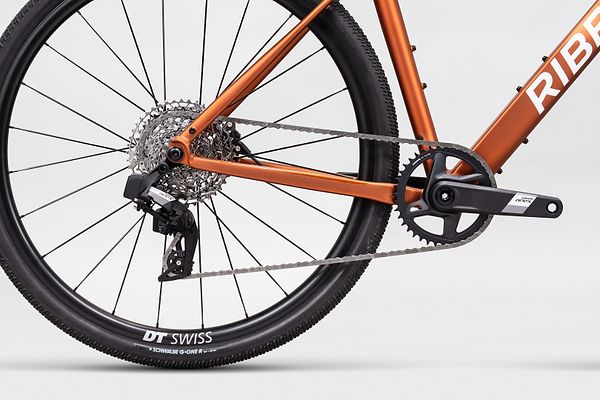

Groupset
Apex XPLR AXS is built for riders who want one setup that can handle anything from gravel adventures to everyday miles. Wide range 1×12 gearing flattens out the hills, while wireless shifting stays smooth and consistent when the surface turns rough. Braking feels calm and controlled, and the drivetrain remains quiet even when the ride gets bumpy. You can check battery life and fine-tune settings from your phone, but once it’s set up, it fades into the background so you can simply focus on the ride.

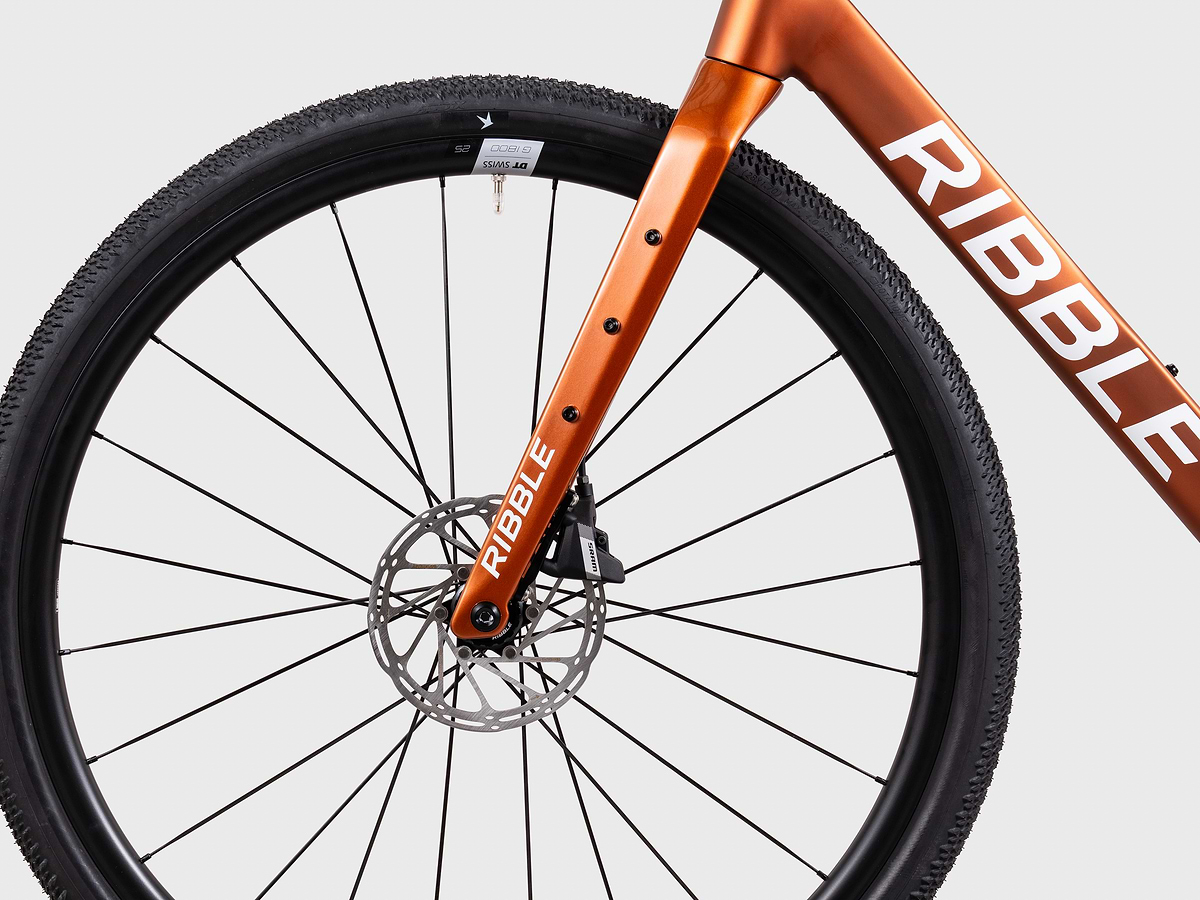

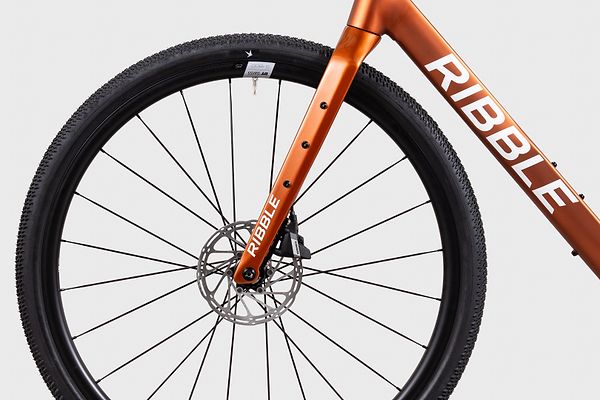

Wheelset
The DT Swiss G 1800 Spline alloy wheels are built to feel steady and dependable when gravel gets rough. Strong and confidence-inspiring, they smooth out uneven ground and stay composed when the route turns unpredictable. Paired with 45 mm Schwalbe G-One R Performance tyres, the setup rolls quickly on firm surfaces while delivering the grip and stability you need when conditions change.

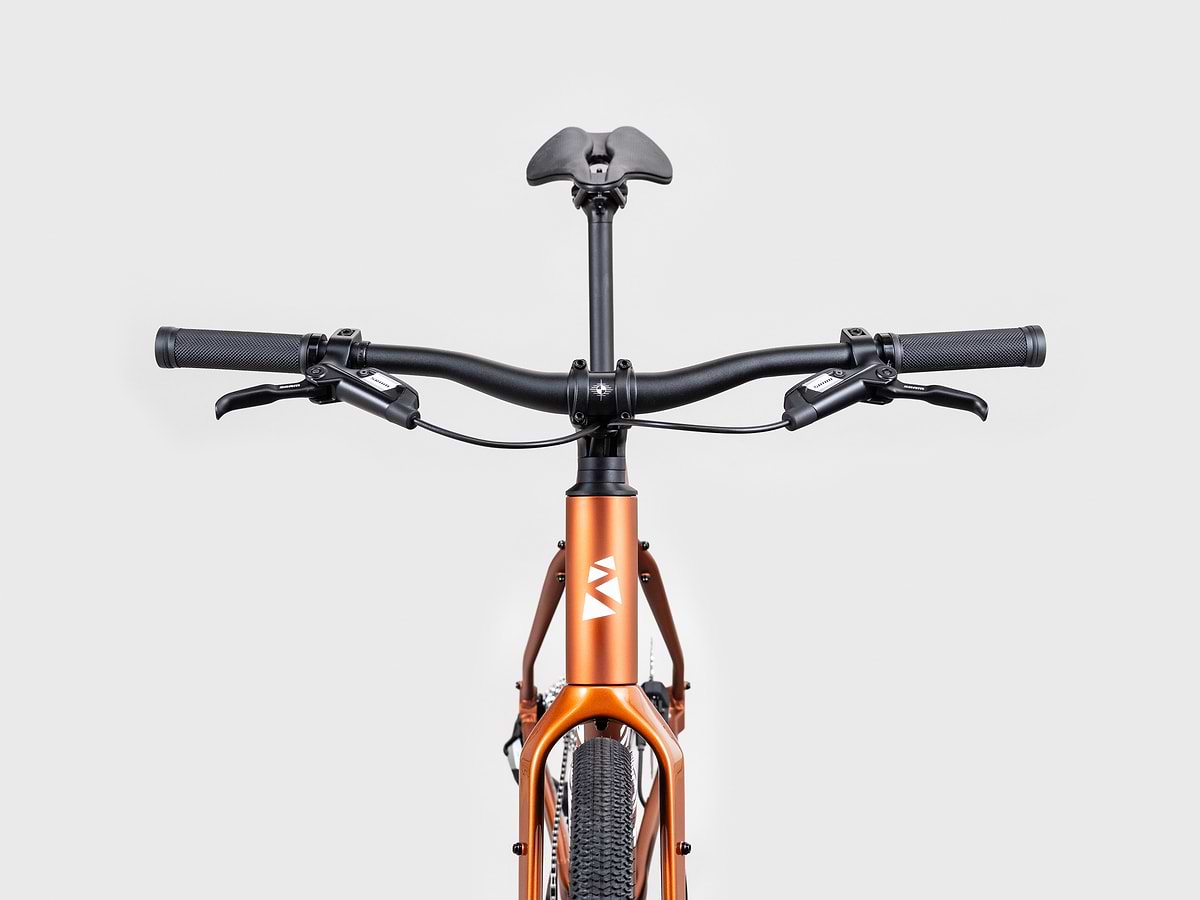

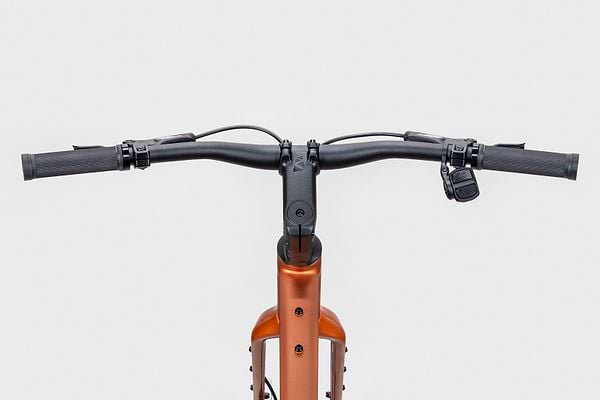

Handlebars
Flat bars put you in a relaxed, upright position, so you’ve got a clear view and better control on varied terrain. Ergonomic grips add comfort on longer rides, and the lightweight Ribble alloy stem keeps things steady and responsive, on back lanes, gravel and everything in between.

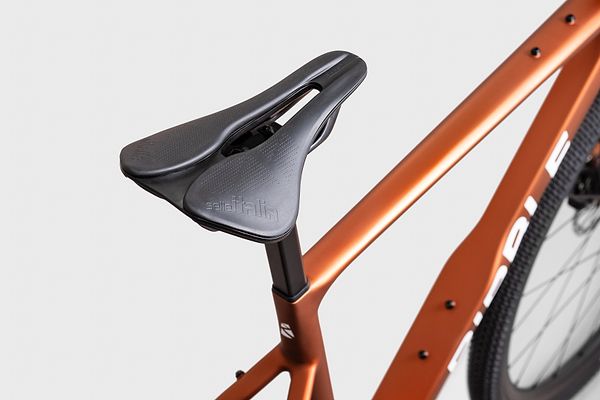

Saddle
The integrated seat clamp works with our D-shaped alloy seatpost and Selle Italia Model X saddle to take the sting out of rough surfaces. Together they smooth out trail buzz and help you stay comfortable and settled when the miles start to add up.
Suspension Fork Upgrade
When the gravel turns rough, the RockShox Rudy Ultimate fork helps make riding feel calmer and more controlled. Available as an upgrade on the ALLGRIT AL SPORTFIT, it adds front suspension to smooth out bumps, loose tracks and uneven ground. That extra forgiveness makes the bike easier to handle, especially for newer gravel riders, helping you stay confident through corners and steadier on descents. Now you can enjoy the ride when the route leaves the tarmac behind.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'7
159 - 169cm
5'6 - 5'9
167 - 176cm
5'9 - 5'11
174 - 181cm
5'10 - 6'1
179 - 186cm
6'0 - 6'4
184 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Allgrit AL Frame Copper XSM 47cm
- Alloy Riser Flat Bar Black 66cm
- Alloy Riser Stem 90mm
- Alloy Shift Cable Housing Ferrule Black 4.2mm
- Apex 1 DUB Wide Crankset 165mm 40T
- Apex Flattop 12spd Chain 120 Links
- Apex XPLR AXS Rear Derailleur
- Centre Lock Rotor Lockring
- Centreline CL Rotor 160mm
- Chainstay Protector
- Compression Bushing Fits Stealth-a-Majig System AL
- D-Shaped Alloy Seatpost - 350mm
- D-Shaped Rubber Seat Clamp Cover
- DB-S300-A1 Brake Lever & Caliper LH 1900mm
- DB-S300-A1 Brake Lever & Caliper RH 950mm
- DUB T47 85.5mm Road WIDE Bottom Bracket
- Disc Caliper Bolt Black 27mm
- EC-AXS-POD-D1 AXS Pod Controller RH
- Headset Bearing Cover for Urban Riser Stem
- M3 6mm Hex 2 Countersunk Black
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY25 Alloy UDH Rear Thru Axle
- MY25 Ti/AL Seatpost Wedge Kit
- Needle Insert Fits Stealth-a-Majig System SS
- PG1231 XPLR Cassette HG 11-44T
- Plastic Compression Spider 42mm 0.0mm Offset
- Powerpack 1 Battery & Charger (cable not included)
- Rubber Circular Bung - 10mm Domehead 8mm Post
- Rubberised Bar Grips Black
- Short Door - Ti Alloy - Blank
- Short Door - Ti Alloy - Single Hole Without Stop
- Starter Kit Black One Size
- Thru Axle Lever
- Universal Derailleur Hanger
- Urban Riser Stem Spacer - 10mm
- Urban Riser Stem Spacer - 15mm
- Warning sticker sheet Torques to be applied at PDI
Fork
- Allgrit AL Carbon Fork Copper
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY24/25 Front Thru Axle
- R457B Headset Bearing
Wheelset
- G-One R Performance RaceGuard TLR Tyre BLK 700x45mm
- G1800 Disc Front Wheel 700c CL
- G1800 Disc Rear Wheel 700c CL HG
- Inner Tube SV17 700x28/47 Presta 40mm
Saddle
- Selle Italia Model X Light FeC Saddle
FAQ's
If you're between sizes on the ALLGRIT AL SPORTFIT, we recommend choosing the smaller frame. It’s easier to adjust the fit by raising the seat post or using a longer stem, while a larger frame limits fine-tuning options.
Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.
- Apex XPLR AXS build: 10.2 kg with carbon forks · 11.0 kg with RockShox Rudy Ultimate
- Apex XPLR build: 10.3 kg with carbon forks · 10.9 kg with RockShox Rudy Ultimate
- SPORTFIT build: 10.0 kg with carbon forks · 10.7 kg with RockShox Rudy Ultimate
Frame only (medium): 1,700 g
The ALLGRIT AL SPORTFIT comes with a lifetime warranty on the frame and forks for the original owner, covering manufacturing defects. Other components, including the optional RockShox suspension forks, are protected by the standard manufacturer’s warranty.
Yes, the ALLGRIT AL SPORTFIT offers an optional RockShox Rudy suspension fork upgrade to improve comfort and control on rough gravel trails.
The ALLGRIT AL SPORTFIT features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.
The ALLGRIT AL SPORTFIT comes with 45 mm gravel tyres as standard, and can take up to 50mm, or 45mm with mudguards. The front fork also accepts a 29 x 2.1" (700 x 53c) mountain bike tyre.
Yes, you can fit a rear pannier rack using our exclusive adaptor kit (sold separately), boosting carrying capacity by up to 15 kg.
No, it is not approved for use with child safety seats.
Yes. A removable mudguard bridge makes fitting mudguards easy (bridge and mudguards sold separately). We also offer a combined fitting kit for anyone wanting to fit mudguards and a rack.
The ALLGRIT AL SPORTFIT frame accepts an 85.5 mm T47 threaded bottom bracket for durability and ease of maintenance.
The ALLGRIT AL SPORTFIT features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.
The ALLGRIT AL SPORTFIT comes with a 350 mm D-shaped alloy seatpost (8mm setback), compatible with carbon and alloy saddle rails.
Two: one on the downtube and one on the seat tube, positioned to work perfectly with Ribble aero bottle cages.
Extra luggage mounts on the ALLGRIT AL SPORTFIT are located on the top tube, underside of the downtube, and carryall mounts on the front forks.
Thru axles: M12 x 1.5 x 123 mm (front) - M12 x 1.0 mm x 167.5 mm (rear).
While equipped with a 1x drivetrain, the ALLGRIT AL SPORTFIT supports a 34.9 mm front derailleur and 2x gravel chainsets (31T/48T or 30T/46T).
The ALLGRIT AL SPORTFIT uses a Universal Derailleur Hanger for hassle-free compatibility and easy replacement.
The maximum recommended system weight for the ALLGRIT AL is 120 kg, including bike, rider, and luggage.
The ALLGRIT AL SPORTFIT is designed to accommodate the latest flat-mount disc brakes for reliable stopping power.
Yes, the bike comes with a set of flat platform pedals for general use.
