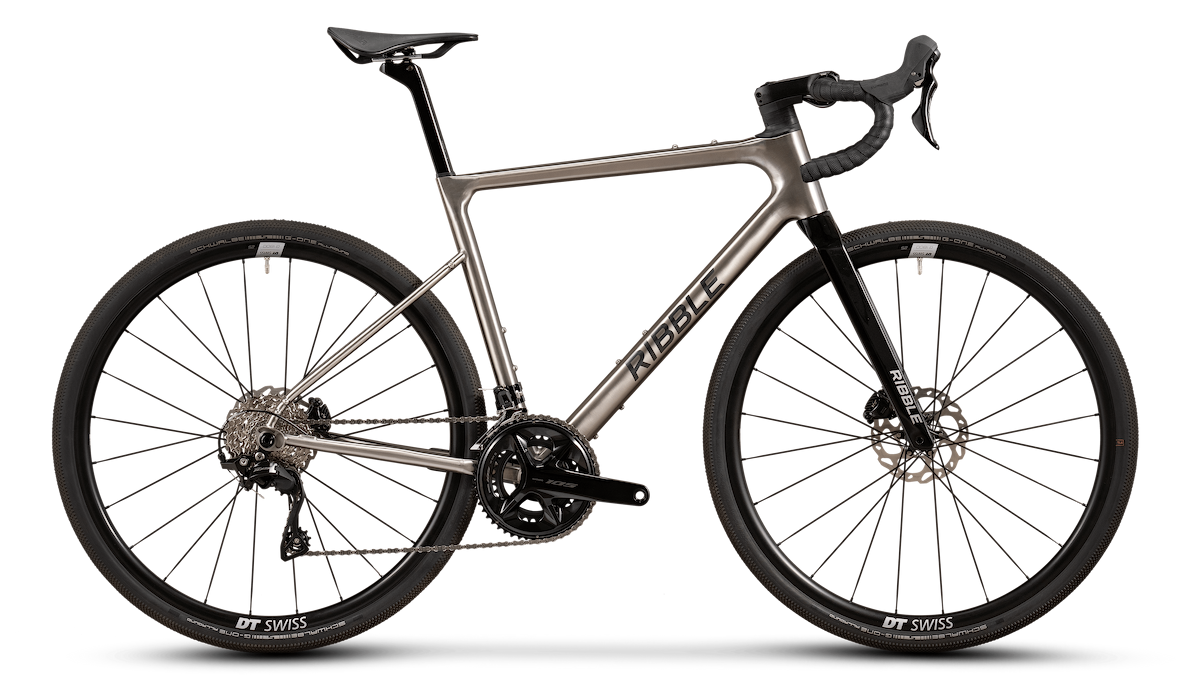

CGR Ti-X 105

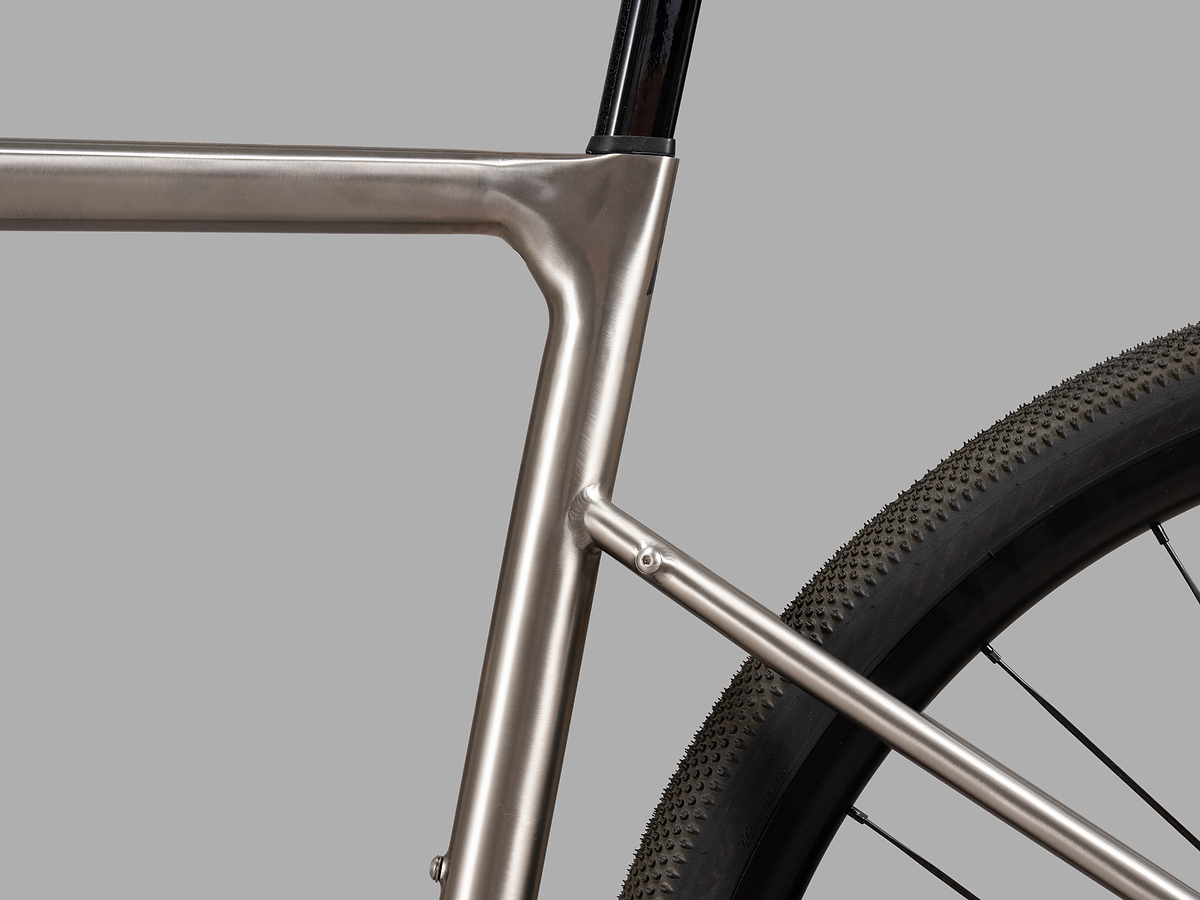

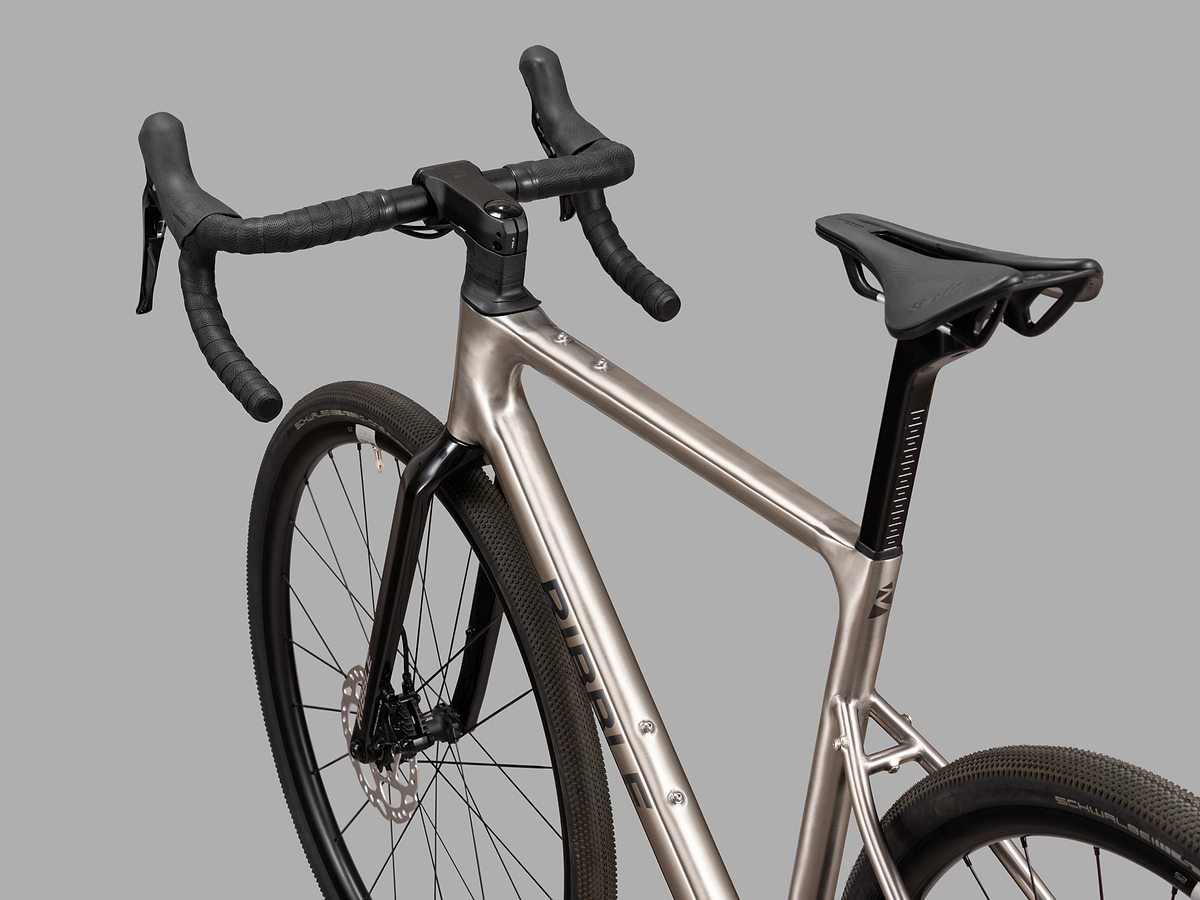

CGR Ti-X 105 image 2

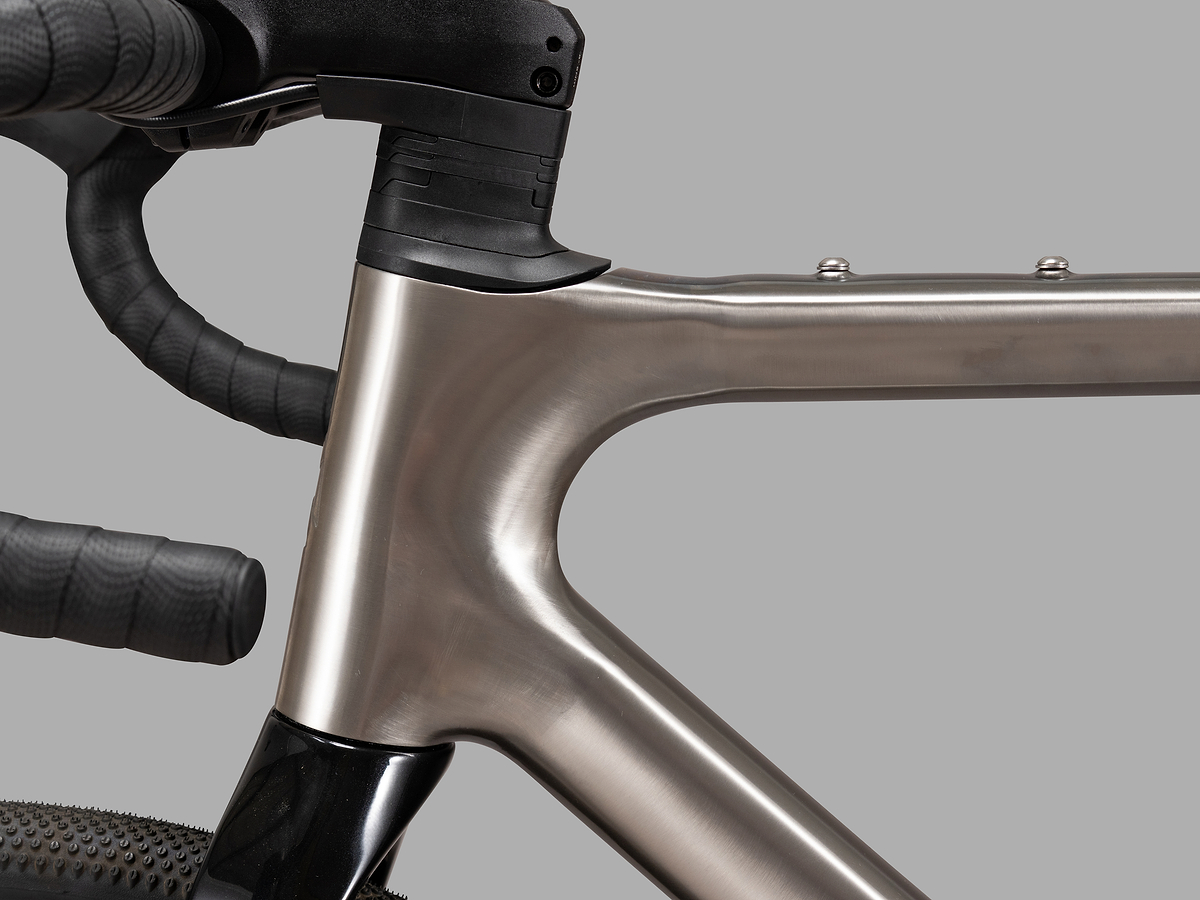

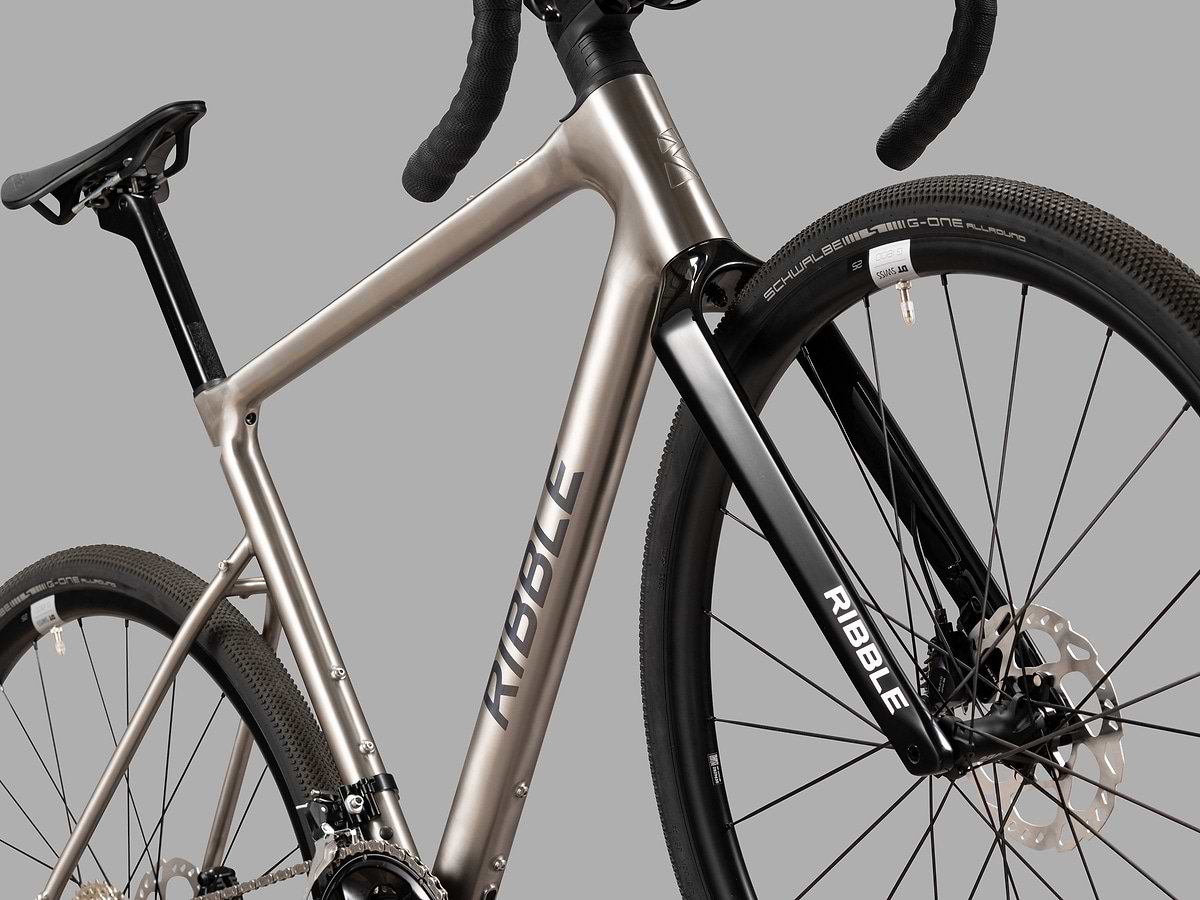

CGR Ti-X 105 image 3

CGR Ti-X 105

Built to order in the UK
The CGR Ti-X is an elegant, versatile titanium all-rounder that pairs the proven go-anywhere CGR design with the strength, comfort and longevity of triple-butted titanium. Lightweight, responsive and…
£3,099
V12 Finance·Klarna·PayPal
colour
Choose Your Size
Product code: BCGRTIG27100D

Ways to pay

Why Ribble?

BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.

LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.

30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.

30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.

BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.

Description

The CGR Ti-X is an elegant, versatile titanium all-rounder that pairs the proven go-anywhere CGR design with the strength, comfort and longevity of triple-butted titanium. Lightweight, responsive and compliant, it's built to ride further, more often, for longer. Shimano’s 105 12-speed groupset keeps shifting sharp on road or trail, while DT Swiss wheels and 40 mm Schwalbe G-One Allround tyres bring the grip, speed and comfort. Finished with a Selle Italia Model X saddle, it’s ready for whatever you throw at it.

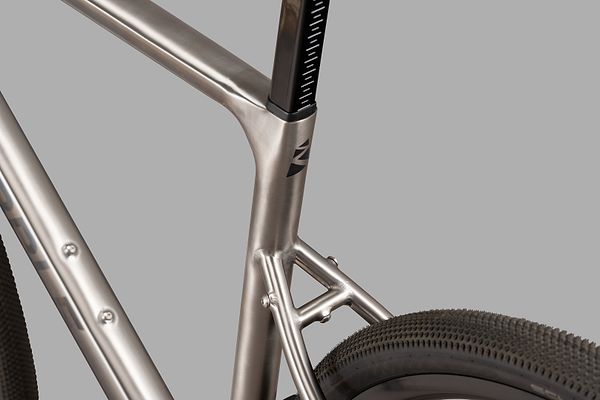

Frameset

The CGR Ti-X is our premium all-rounder built from precision-engineered titanium—for fast miles on road or gravel. 3D-printed frame parts push the limits of what's possible in ti, blending traditional craftsmanship with the latest cutting-edge tech. It's tough, naturally resistant to corrosion, and smooth as silk to ride. Over time, the hand-finished surfaces pick up a unique patina that tells the story of every ride. With aero touches like the widened fork and headtube blend, it’s built for speed without losing the supple ride feel that makes titanium special.

Frameset

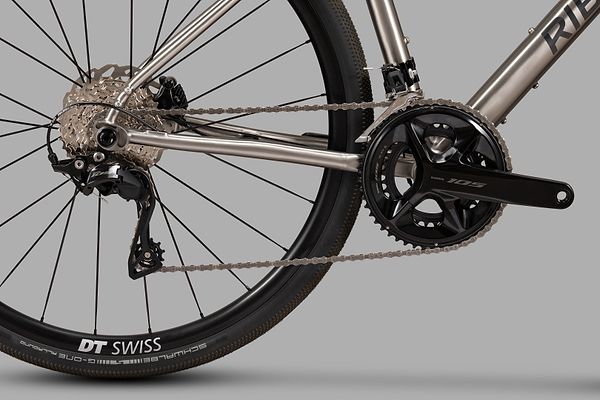

Groupset

Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. 105 7100 combines pure cycling with pure craftmanship. Inspired by 105 Di2, this versatile drivetrain delivers the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level.

Groupset

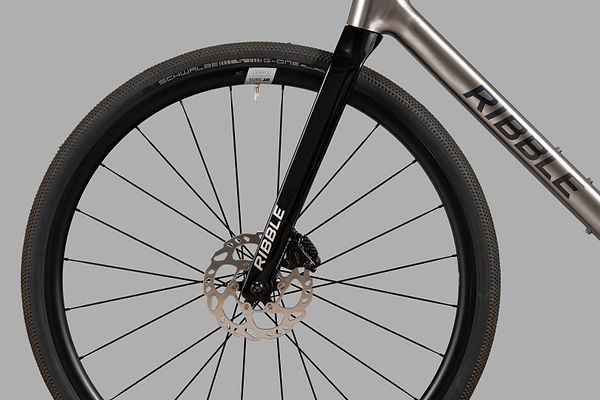

Wheelset

Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

Wheelset

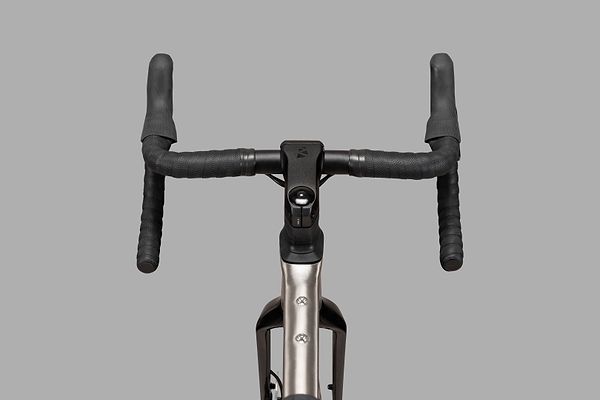

Handlebars

Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke, whether you’re heading out for an hour or all day.

Handlebars

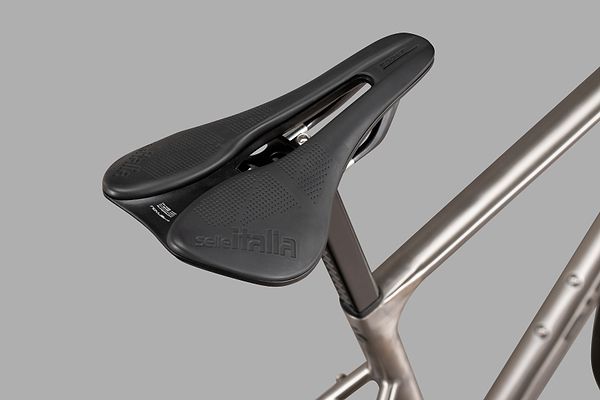

Saddle

Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped carbon post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.

Saddle

Size Guide

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size Guide

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
WB - Wheelbase (mm)10301036105210611075
Handlebar Default (mm)380380400400420
Stem Default (mm)70809090100
Min. Saddle Height (mm)620640710730740
Max. Saddle height (mm)700720790810830

Full Spec

Please note that the exact specification below will differ based on the size and specification you select.

  • Bike

    • Allroad Carbon Seatpost Wedge - Ti / Alloy
    • Allroad Front Thru-Axle
    • CGR Ti-X Carbon Fork Black
    • CN-M7100 SLX 12spd Chain 126 Links
    • CS-HG710 12spd Cassette HG 11-36T
    • Carbon D-Shape Setback Seatpost Gloss Black 280mm
    • Chainstay Protector
    • D-Shaped Rubber Seat Tube Cover
    • Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
    • Disc Caliper Bolt Black 32mm For Carbon Frames
    • Embossed Black Bar Tape
    • FD-R7100 105 12spd Front Derailleur Braze On
    • Flat Washer SS (A4) 1mm x M5 x 10mm Silver
    • Front Mech Clamp 34.9mm
    • Jagwire LEX-SL Gear Cable Outer - Black 1m
    • Long Tail Ferrule
    • M3 6mm Hex 2 Countersunk Black
    • M5 10mm Hex 3 Domehead P0.8 SSA2
    • M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
    • M5 15mm Hex 3 Domehead P0.8 SSA2
    • Plastic Shift Cable Housing Ferrule 4.2mm
    • R7100 105 Chainset (No Powermeter)
    • RD-R7100 105 12spd Rear Derailleur
    • RT-CL700 SI Rotor with Lockring 160mm
    • Rear Thru Axle w/Ribble Logo 169mm P1.0 UDH
    • Rubber Circular Bung - 10mm Domehead 7mm Post
    • ST-R7120 105 STI Lever & BR-R7170 Caliper 12spd RH
    • ST-R7120 105 STI Lever & BR-R7170 Caliper 2X LH
    • Short Door - Ti Alloy - Single Hole Without Stop
    • T47 68mm Shimano 24mm Threaded Bottom Bracket
    • Thru Axle Lever
    • Ti-X Frame XSM 47cm
    • UDH Rear Hanger Black P1.0 M12 (3PCS)
    • Warning sticker sheet Torques to be applied at PDI
  • Wheelset

    • G-One Allround RaceGuard Folding Tyre Black 700x40mm
    • G1800 Disc Front Wheel 700c CL
    • G1800 Disc Rear Wheel 700c CL HG
    • Inner Tube SV17 700x28/47 Presta 40mm
  • Handlebar

    • Expander For Carb Steerer 1-1/8 x 65mm (Regular)
    • Level Alloy Handlebar
    • Plastic Compression Spider 42mm ID +1.0
    • R457B Headset Bearing
    • RS-2 Stem Headset Bearing Cover Kit
    • RS-2 Stem Headset Bearing Cover Kit
  • Saddle

    • Selle Italia Model X Light FeC Saddle
