Description

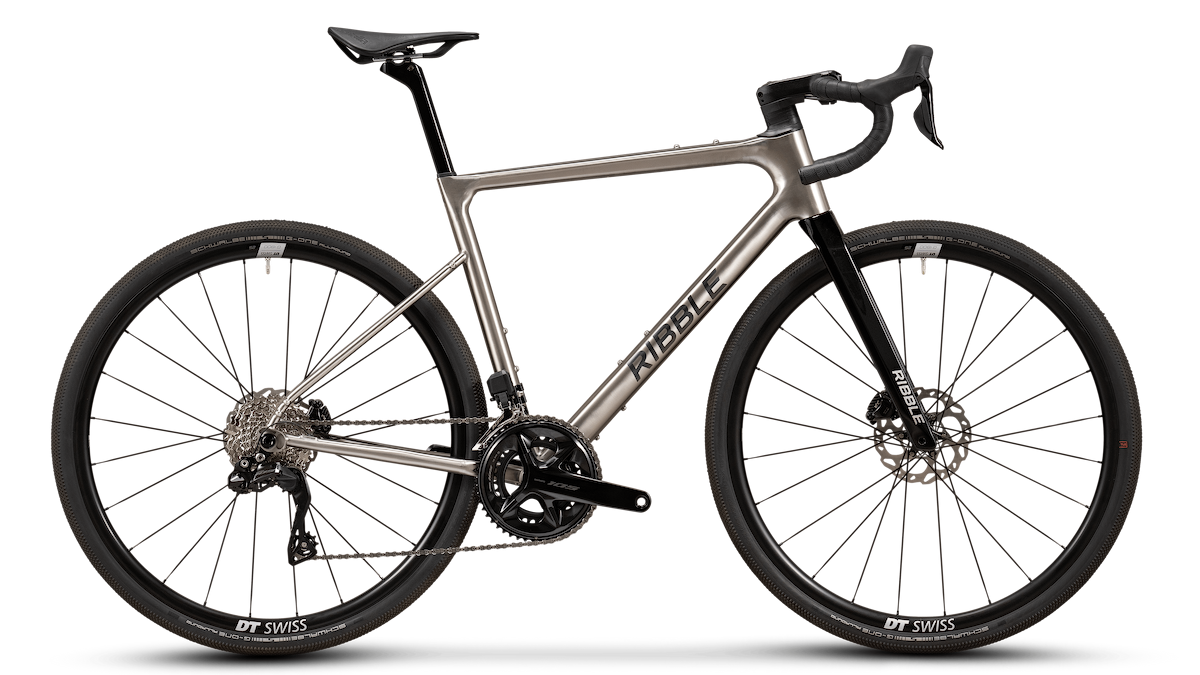

The CGR Ti-X is an elegant, versatile titanium all-rounder that pairs the proven go-anywhere CGR design with the strength, comfort and longevity of triple-butted titanium. Lightweight, responsive and compliant, it's built to ride further, more often, for longer. Shimano’s 105 Di2 12-speed groupset keeps shifting instant and accurate on road or trail, while DT Swiss wheels and 40 mm Schwalbe G-One Allround tyres bring the grip, speed and comfort. Finished with a Selle Italia Model X Superflow saddle, it’s ready for whatever you throw at it.

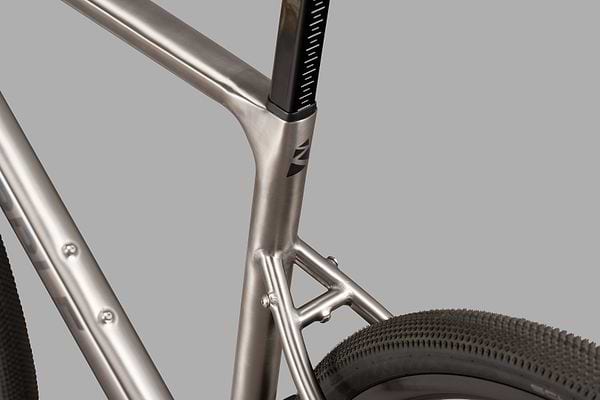

Frameset

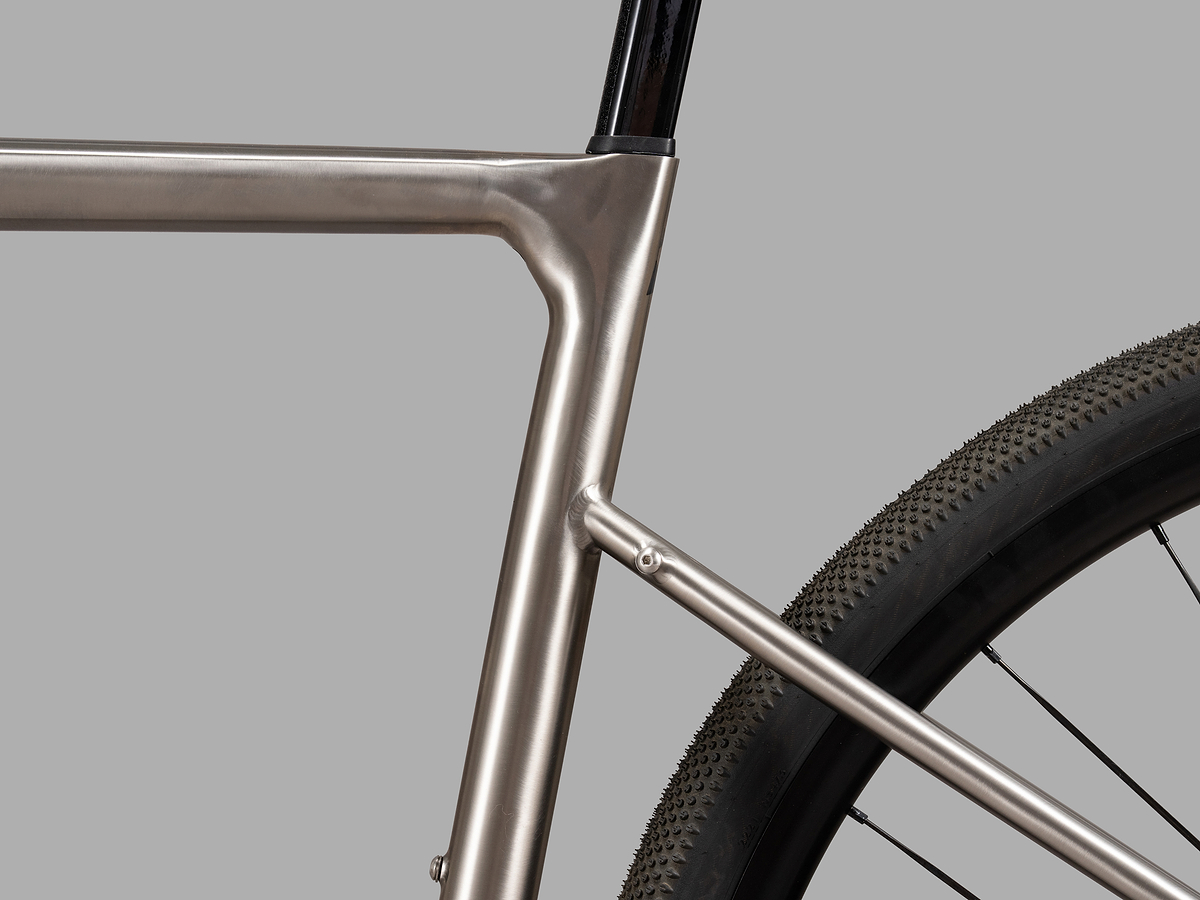

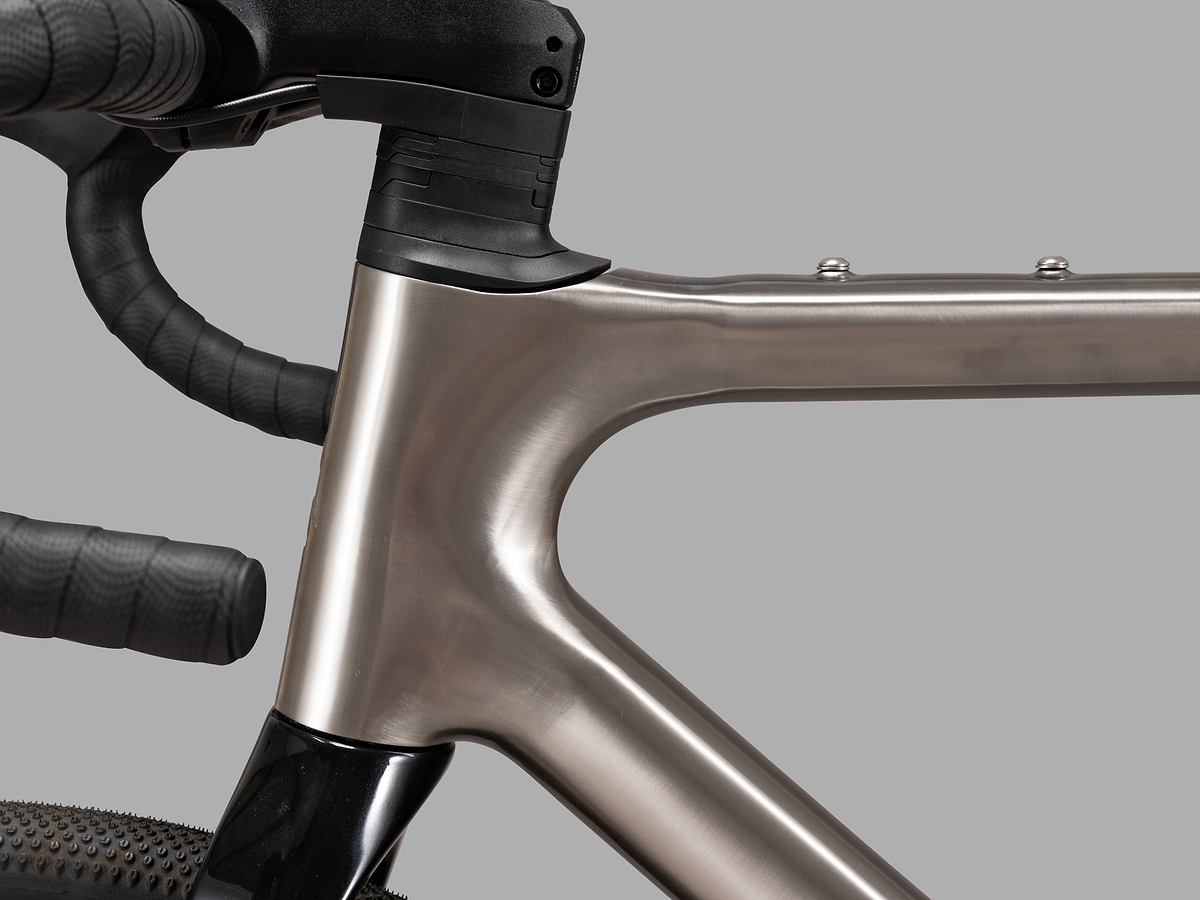

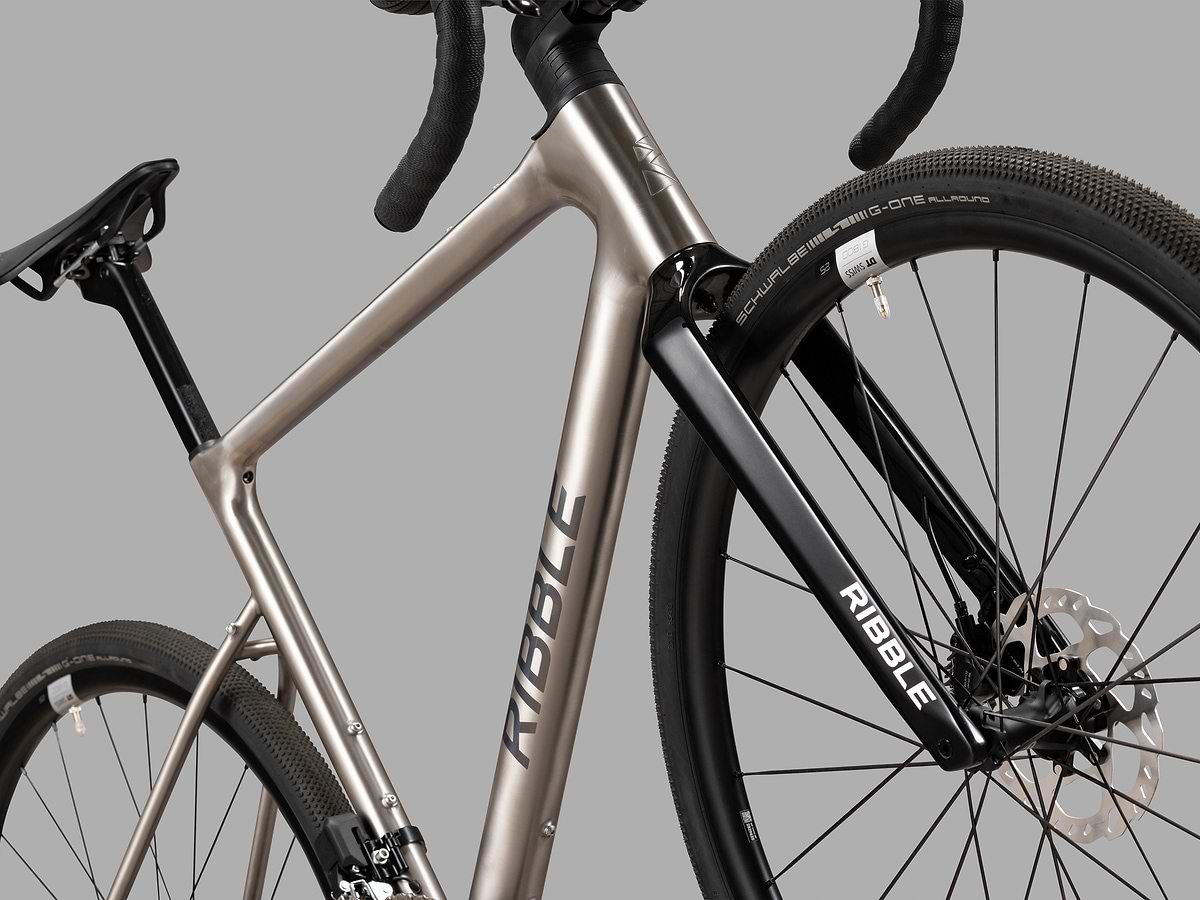

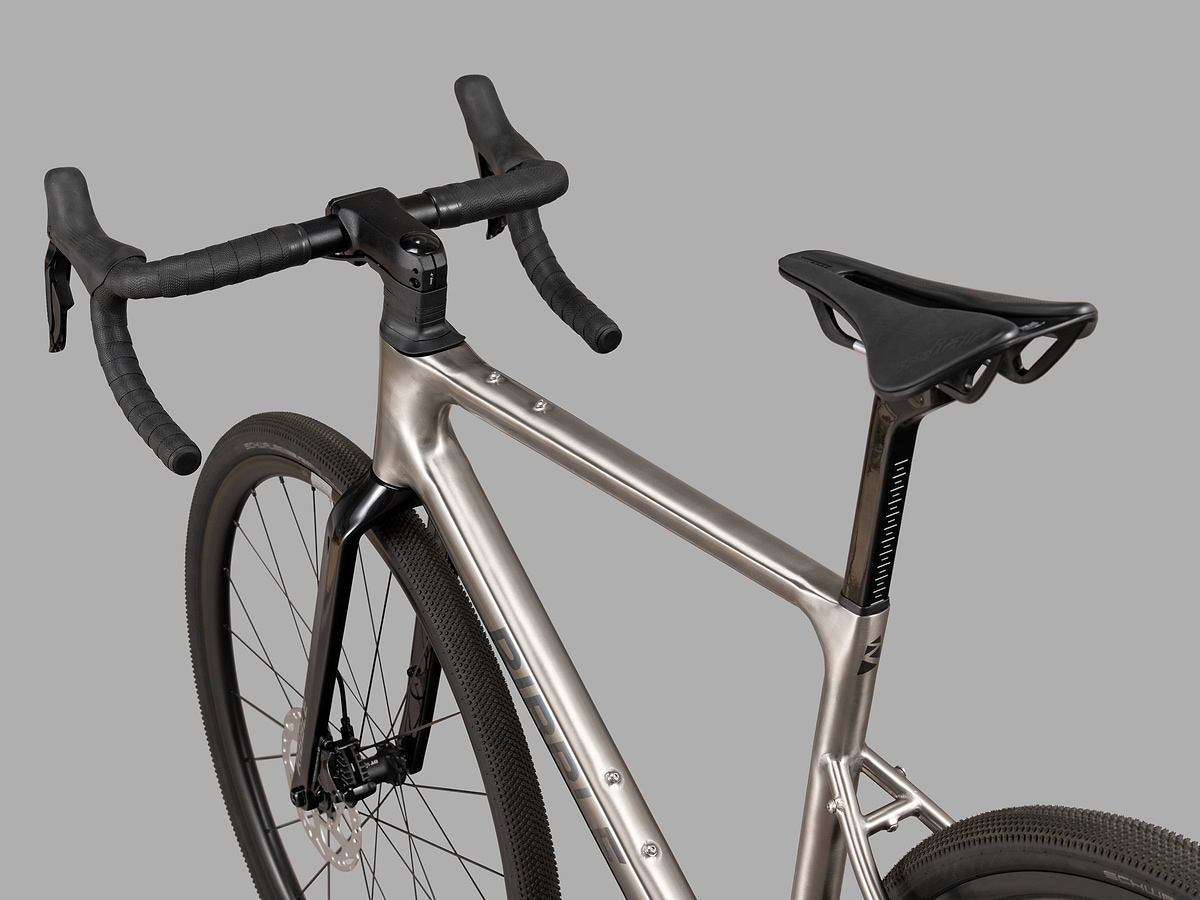

The CGR Ti-X is our premium all-rounder built from precision-engineered titanium—for fast miles on road or gravel. 3D-printed frame parts push the limits of what's possible in ti, blending traditional craftsmanship with the latest tech. It's tough, naturally resistant to corrosion, and smooth as silk to ride. Over time, the hand-finished surfaces pick up a unique patina that tells the story of every ride. With aero touches like the widened fork and headtube blend, it’s built for speed without losing the supple ride feel that makes titanium special.

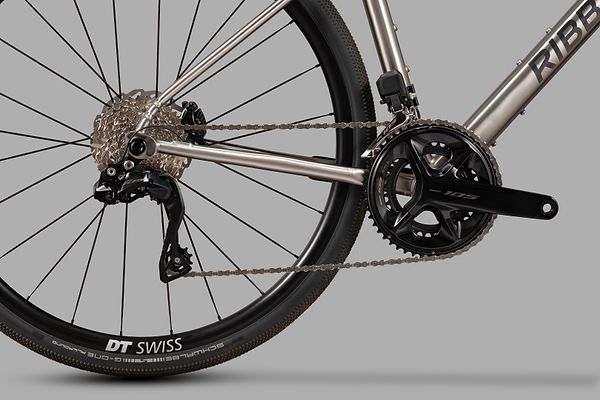

Groupset
Combining technologies and functions inherited from Dura-Ace, 105 Di2 will transform your cycling experience. With a shared Di2 platform, sophisticated ergonomics, 105-optimised gear ratios and the exceptional stopping power of hydraulic disc brakes, 105 Di2 marks a new era of affordable performance. Di2 gives you the instant and lightning-fast gear shifts of the world’s fastest semi-wireless groupset. With Di2 you are in complete control.

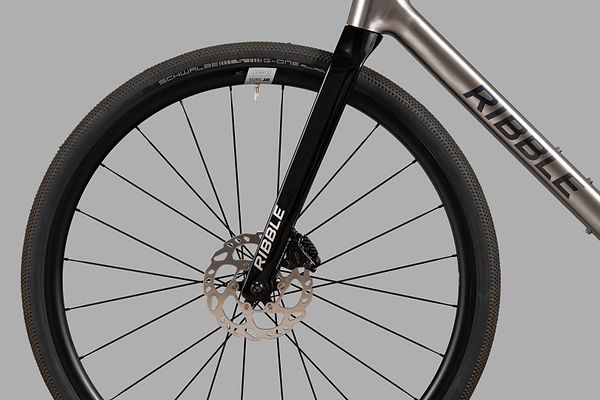

Wheelset
Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.


Handlebars
Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke—whether you’re heading out for an hour or all day.

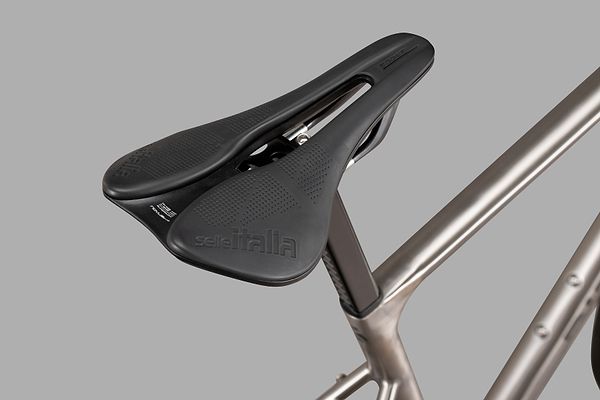

Saddle
Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped carbon post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.


Size Guide
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Geometry

Frequently Asked Questions
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Allroad Carbon Seatpost Wedge - Ti / Alloy
- Allroad Front Thru-Axle
- BTDN3001 Di2 Battery 3-Port
- CGR Ti-X Carbon Fork Black
- CN-M7100 SLX 12spd Chain 126 Links
- CS-HG710 12spd Cassette HG 11-36T
- Carbon D-Shape Setback Seatpost Gloss Black 280mm
- Chainstay Protector
- D-Shaped Rubber Seat Tube Cover
- Di2 12 Speed Battery Bung 2PCS
- Di2 Grommet 6mm Circle With Hole
- Di2 Grommet 7x8mm Oval With Hole
- Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
- Disc Caliper Bolt Black 32mm For Carbon Frames
- EW-EC300 Di2 Charging Cable 1700mm USB
- EW-SD300 1400mm Di2 Wire
- EW-SD300 850mm Di2 Wire
- Embossed Black Bar Tape
- FD-R7150 105 Di2 12spd Front Derailleur Braze-On
- Flat Washer SS (A4) 1mm x M5 x 10mm Silver
- Front Mech Clamp 34.9mm
- M3 6mm Hex 2 Countersunk Black
- M5 10mm Hex 3 Domehead P0.8 SSA2
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 15mm Hex 3 Domehead P0.8 SSA2
- R7100 105 Chainset (No Powermeter)
- RD-R7150 105 Di2 12spd Rear Derailleur
- RT-CL700 SI Rotor with Lockring 160mm
- Rear Thru Axle w/Ribble Logo 169mm P1.0 UDH
- ST-R7170 105 STI Lever & BR-R7170 Caliper 12spd RH
- ST-R7170 105 STI Lever & BR-R7170 Caliper 2X LH
- Short Door - Ti Alloy - Blank
- Short Door - Ti Alloy - Single Hole Without Stop
- Short Door - Ti Alloy - Single Hole for Di2
- T47 68mm Shimano 24mm Threaded Bottom Bracket
- Thru Axle Lever
- Ti-X Frame XSM 47cm
- UDH Rear Hanger Black P1.0 M12 (3PCS)
- Warning sticker sheet Torques to be applied at PDI
Wheelset
- G-One Allround RaceGuard Folding Tyre Black 700x40mm
- G1800 Disc Front Wheel 700c CL
- G1800 Disc Rear Wheel 700c CL HG
- Inner Tube SV17 700x28/47 Presta 40mm
Handlebar
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Level Alloy Handlebar
- Plastic Compression Spider 42mm ID +1.0
- R457B Headset Bearing
- RS-2 Stem Headset Bearing Cover Kit
- RS-2 Stem Headset Bearing Cover Kit
Saddle
- Selle Italia Model X Light FeC Saddle
