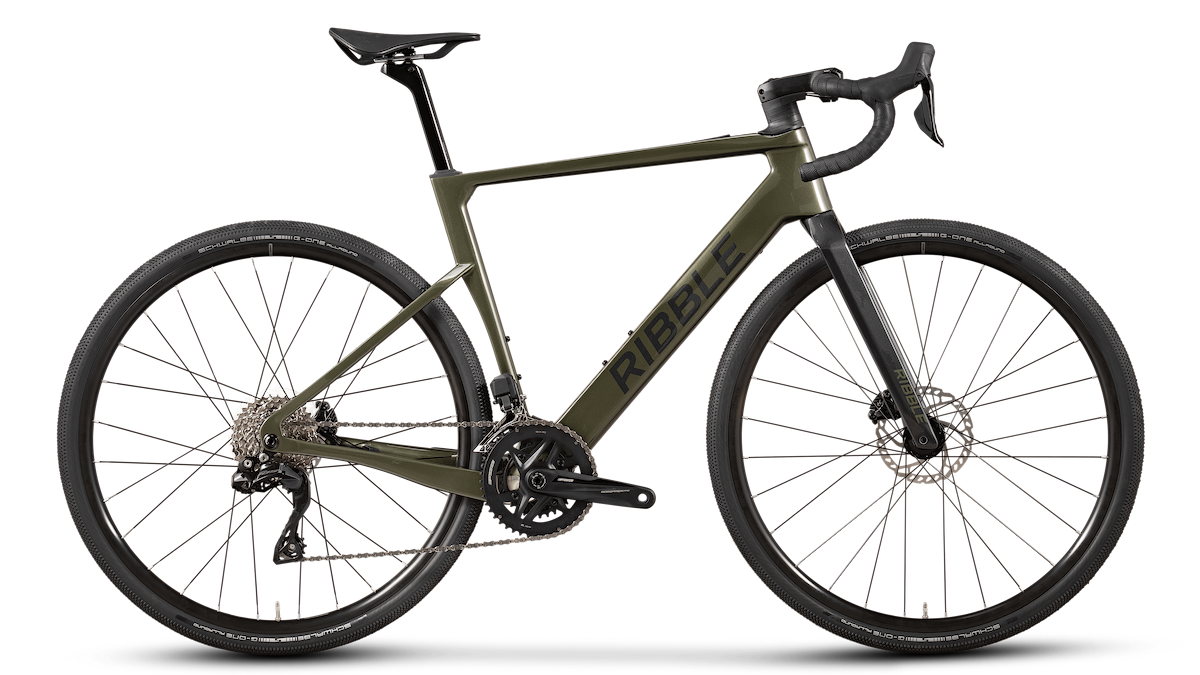

CGR E Carbon-X 105 Di2

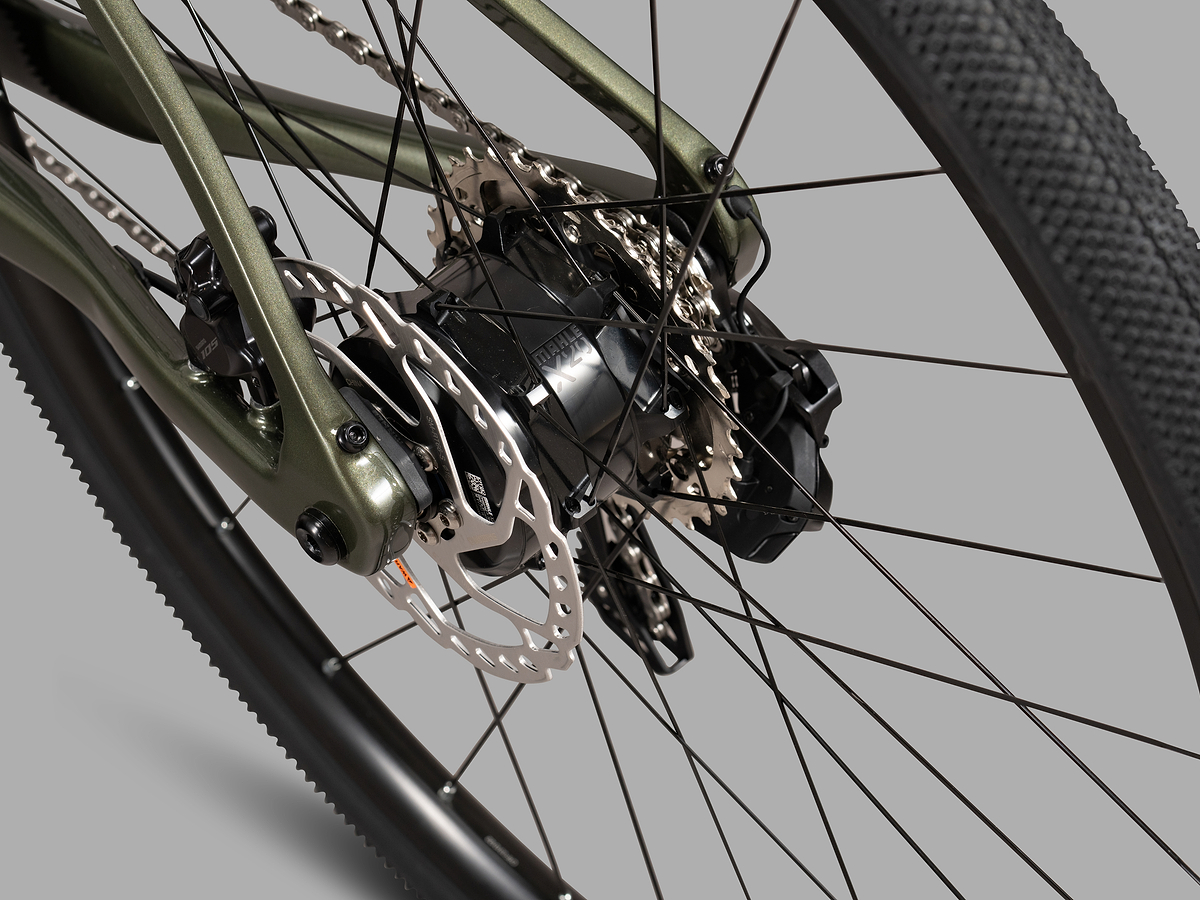

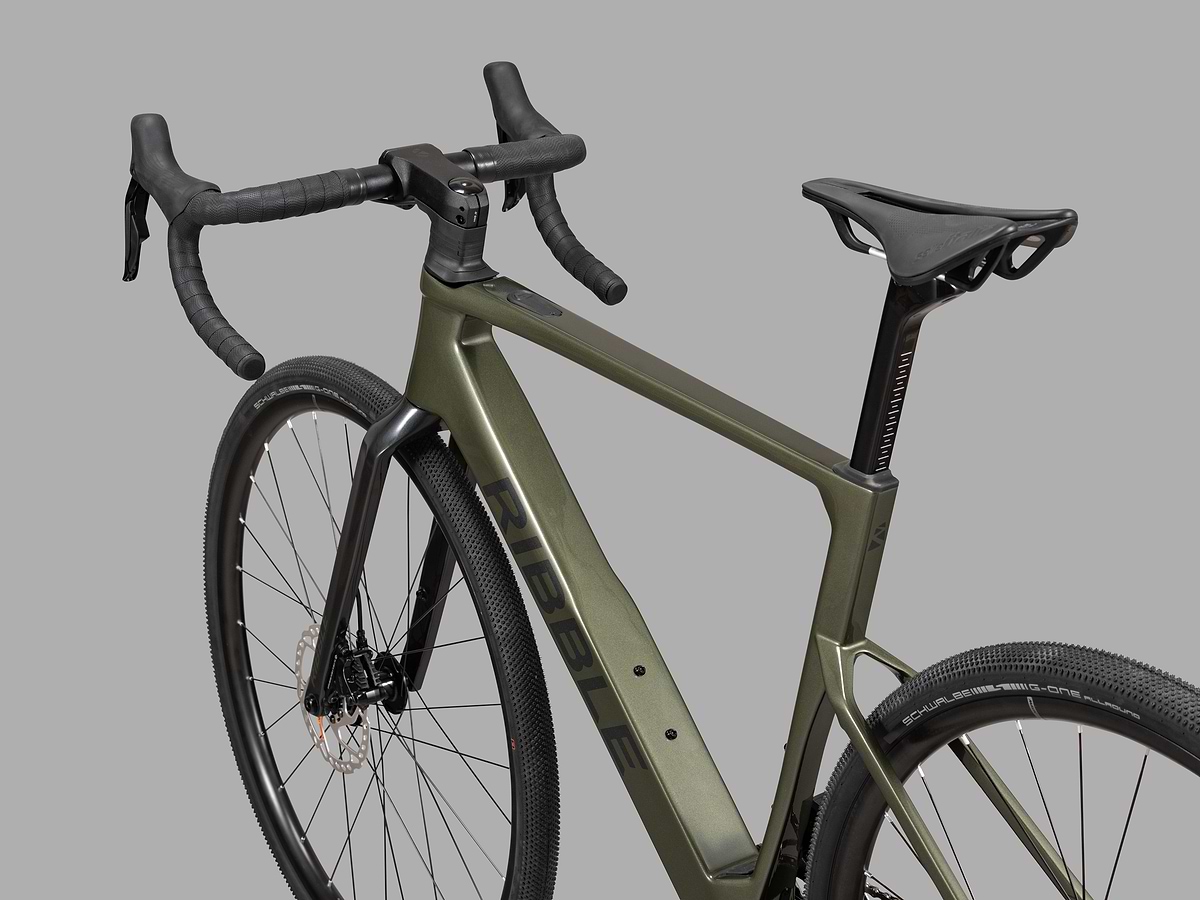

CGR E Carbon-X 105 Di2 image 2

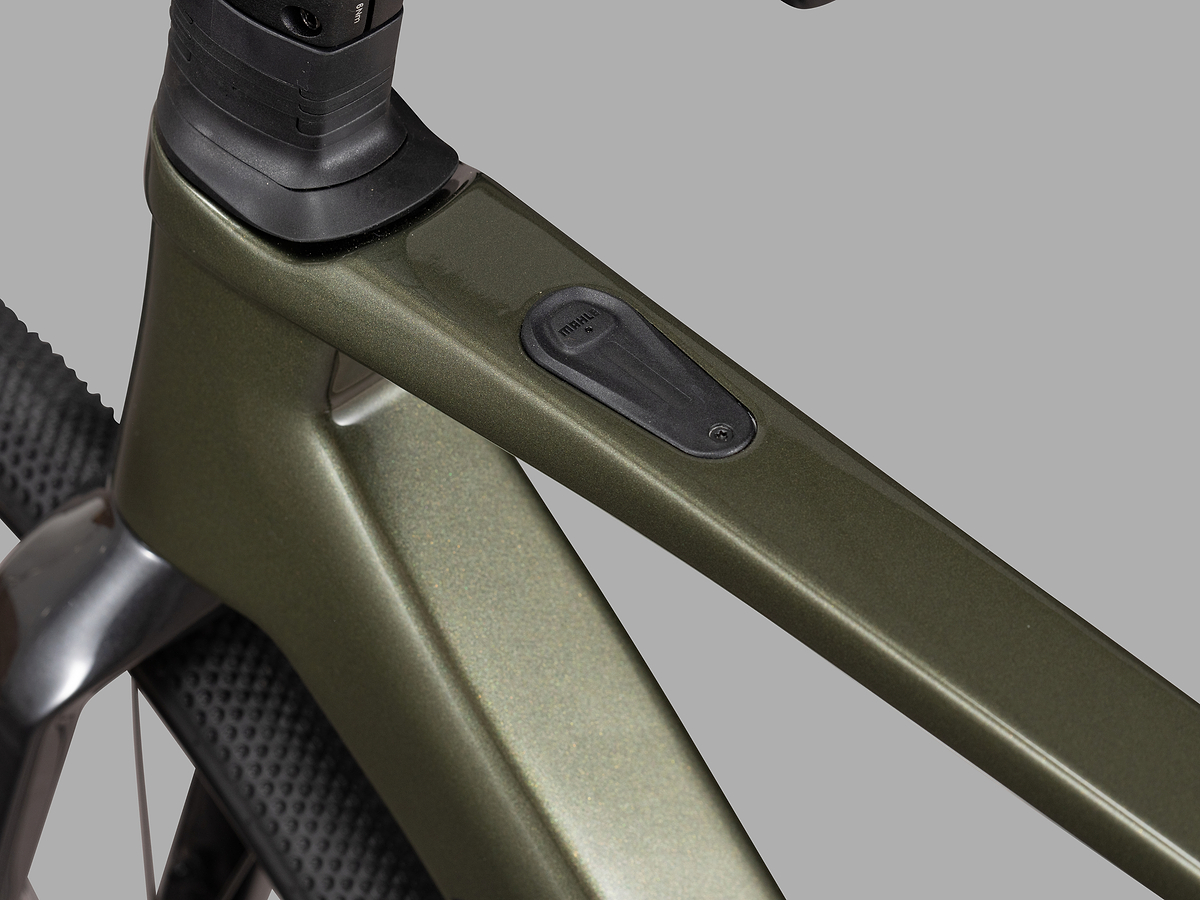

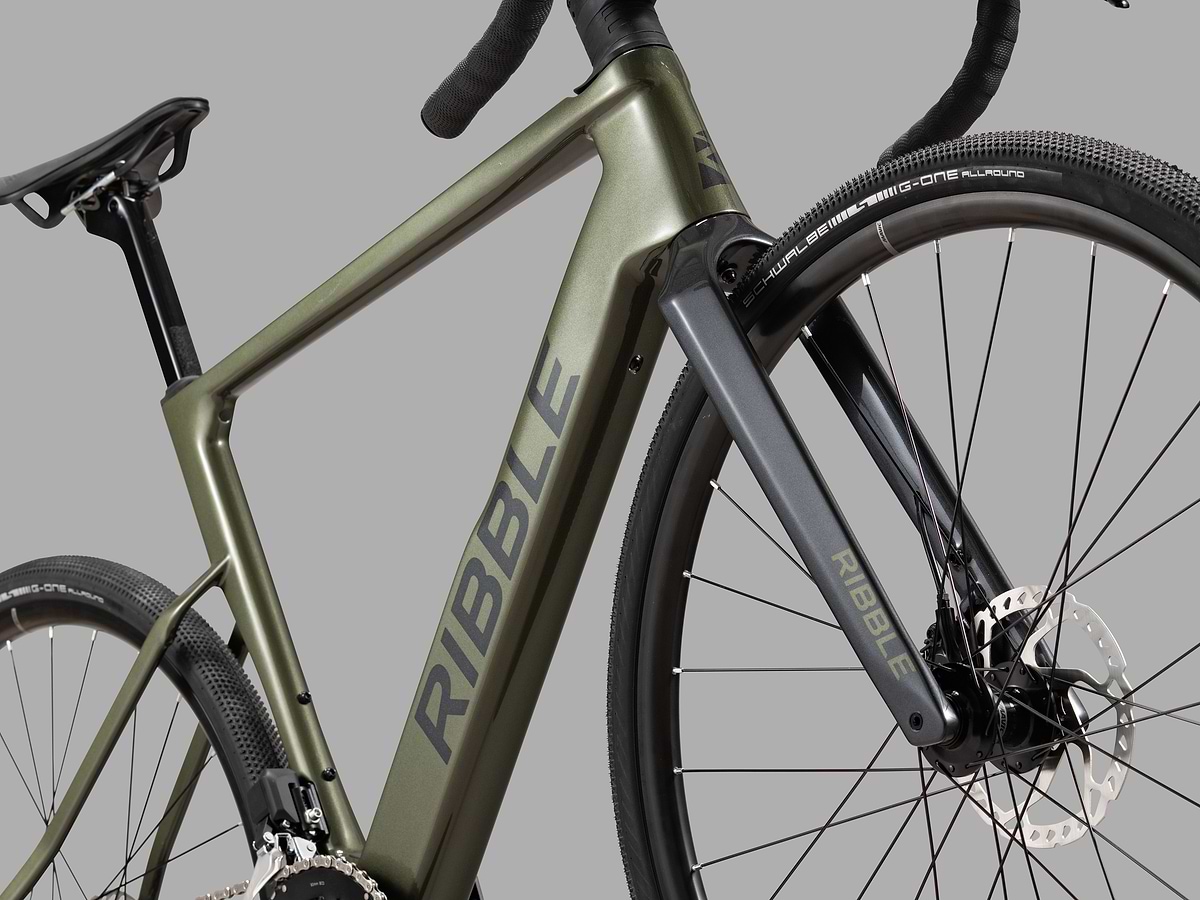

CGR E Carbon-X 105 Di2 image 3

CGR E Carbon-X 105 Di2

Built to order in the UK
The CGR E CARBON-X blends everyday practicality with smooth electric assist and a lightweight carbon frame. A super-lightweight carbon bike with internal cable routing, it's capable of anything you…
£3,899
Was £4,599Save £700
V12 Finance·Klarna·PayPal
colour
Choose Your Size
Product code: BCGRSLRE7150D

Ways to pay

Why Ribble?

BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.

LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.

30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.

30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.

BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.

Description

The CGR E CARBON-X blends everyday practicality with smooth electric assist and a lightweight carbon frame. A super-lightweight carbon bike with internal cable routing, its capable of anything you are. Weighing just 12.4 kg, it pairs a sleek carbon monocoque frame with the near-silent MAHLE X20 e-drive system for smooth, natural assistance when you need it most. Shimano’s 105 Di2 12-speed wireless groupset takes care of shifting, while tough Mavic Allroad wheels, and 40 mm Schwalbe G-Ones keep things fast, stable, and comfortable, on road or off it.

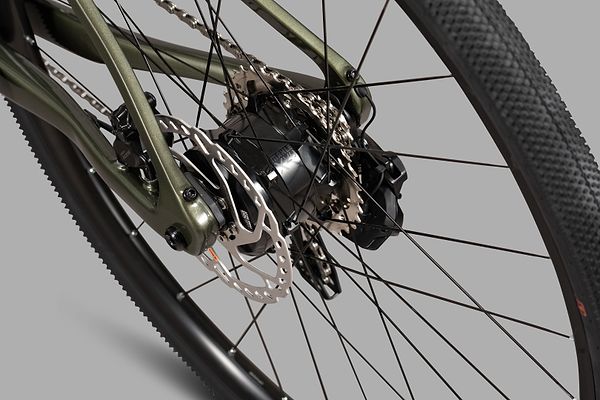

Electric Motor System

The MAHLE X20 e-drive system gives you lightweight, natural-feeling power that kicks in when you need it. It’s whisper-quiet, stealthily tucked away, and gives you up to 140 km of assistance—or more than 200 km if you choose the optional range extender. With 55Nm of torque and a bigger 350Wh battery, it helps you up the climbs, across rough ground, and through longer days in the saddle. You can even set it to respond to your effort or heart rate, so it’s always working how you want it to, whether you're training, building back, or just riding for the love of it.

Electric Motor System

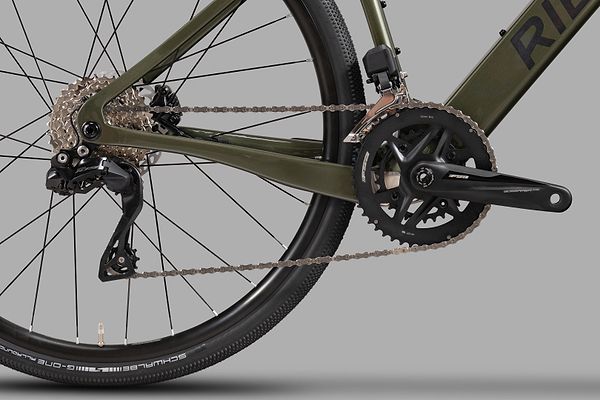

Groupset

Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. The 105 R7100 combines pure cycling with pure craftsmanship, delivering the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level and is paired with a performance-driven Shimano GRX chainset for efficient power delivery with every pedal stroke.

* This bike comes with a Shimano GRX chainset for smooth, reliable shifting on mixed terrain. The FSA chainset shown is for illustration only.

Groupset

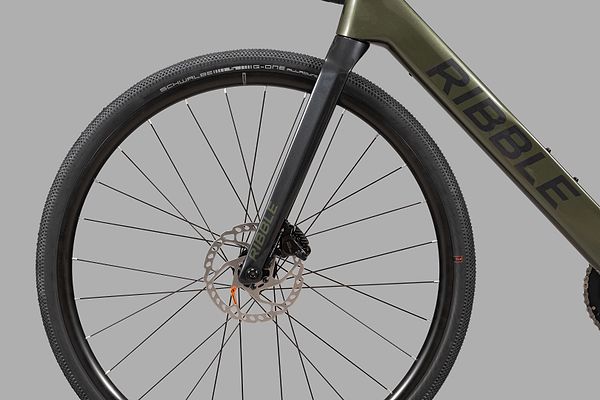

Wheelset

Ride smoother, faster, and further, wherever the road (or trail) takes you. Lightweight and tough, the Mavic Allroad wheels with integrated MAHLE X20 motor deliver responsive power and confident control across any terrain. Paired with 40mm Schwalbe G-One tyres, it’s a setup that’s as eager for hidden dirt tracks as it is for tapping out the tempo on tarmac.

Wheelset

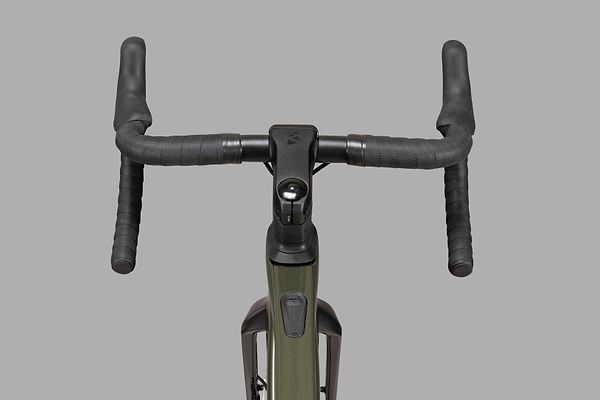

Handlebars

Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke, whether you’re heading out for an hour or all day.

Handlebars

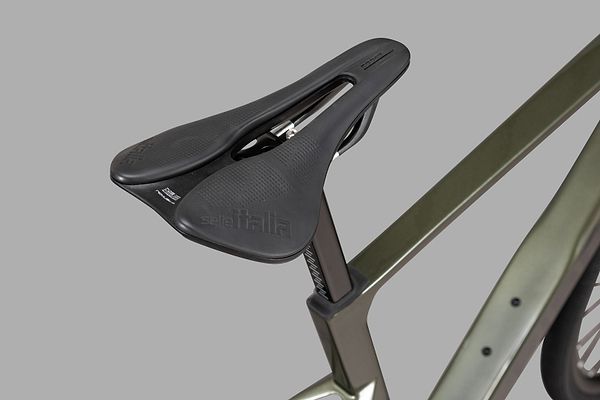

Saddle

Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped carbon post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B -Top Tube C/C (Horizontal)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)70676565665
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
WB - Wheelbase (mm)10301036105210611075
Handlebar Default (mm)380380400400420
Stem Default (mm)70809090100
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830

Frequently Asked Questions

Full Spec

Please note that the exact specification below will differ based on the size and specification you select.

  • Bike

    • Active Charger 4A (with wall mount)
    • Active Charging Point 6 Pin
    • Allgrit / CGR E Carbon-X BB Battery Cover
    • Allroad Front Thru-Axle
    • Allroad SL R/SL R e Rubber Seat Tube Cover
    • Allroad SL R/SL R e Seat Tube Wedge
    • Allroad SL R/SL R e Seat Tube Wedge Bolt
    • Allroad SL R/SL R e Seat Tube Wedge Plug
    • BTDN3001 Di2 Battery 3-Port
    • Blanking Door Alloy
    • CGR E Carbon-X Carbon Fork Anthracite
    • CGR E Carbon-X Frame Green XSM 47cm
    • CN-M7100 SLX 12spd Chain 126 Links
    • CS-HG710 12spd Cassette HG 11-36T
    • Carbon D-Shape Setback Seatpost Gloss Black 280mm
    • Chainstay Protector
    • Charger Wire For UK
    • Di2 12 Speed Battery Bung 2PCS
    • Di2 Grommet 6mm Circle With Hole
    • Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
    • Disc Caliper Bolt Black 27mm For Alloy Frames
    • EW-EC300 Di2 Charging Cable 1700mm USB
    • EW-SD300 1400mm Di2 Wire
    • EW-SD300 850mm Di2 Wire
    • Embossed Black Bar Tape
    • FC-RX610-2 GRX 12spd Chainset 165mm 46-30T
    • FD-R7150 105 Di2 12spd Front Derailleur Braze-On
    • Front Derailleur Spacer 2.5mm
    • G2 SLR SLRE Front Mech Hanger
    • IWOC One Head Unit - Std
    • M3 10mm Hex 2 Countersunk P0.5 SSA2
    • M3 10mm T10 Countersunk P0.5 Black
    • M4 12mm Hex 3 Domehead P0.7 SSA2
    • M5 12mm Hex 2.5 Grub P0.8 Black
    • M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
    • M5 15mm Hex 3 Domehead P0.8 Black
    • M5 16mm Hex 3 Countersunk P0.8 Black
    • M5 8mm Hex 4 Tapered Head P0.8 W/Washer Black
    • M5 T Bolts E-Bikes 8mm Rear Rotor Battery Fitment
    • Open Hose Door Oval Plastic
    • RD-R7150 105 Di2 12spd Rear Derailleur
    • RT66 6-Bolt Disc Rotor 160mm
    • Rear Thru Axle w/Ribble Logo 174mm P1.0 UDH
    • ST-R7170 105 STI Lever & BR-R7170 Caliper 12spd RH
    • ST-R7170 105 STI Lever & BR-R7170 Caliper 2X LH
    • Thru Axle Lever
    • UDH Rear Hanger Black P1.0 M12 (3PCS)
    • Warning sticker sheet Torques to be applied at PDI
    • X20 Dropout Drive Unit Connection Battery Motor
    • X20 TCS PF 46x24mm Bottom Bracket
    • X20 iX3+ Battery Pack
    • X20-30 Quick Guide
  • Wheelset

    • Allroad 1 Mahle 6-Bolt Front Wheel
    • Allroad 1 Mahle X20 GEN2 Rear Wheel 700c 6B
    • G-One Allround RaceGuard Folding Tyre Black 700x40mm
    • Inner Tube SV17 700x28/47 Presta 40mm
    • X20 Drive Unit Freewheel & Nut SHIMANO HG GEN 2
  • Handlebar

    • Expander For Carb Steerer 1-1/8 x 65mm (Regular)
    • Level Alloy Handlebar
    • Plastic Compression Spider 42mm ID +1.0
    • R457B Headset Bearing
    • RS-2 Stem Headset Bearing Cover Kit
    • RS-2 Stem Headset Bearing Cover Kit
  • Saddle

    • Selle Italia Model X Light FeC Saddle
