Description

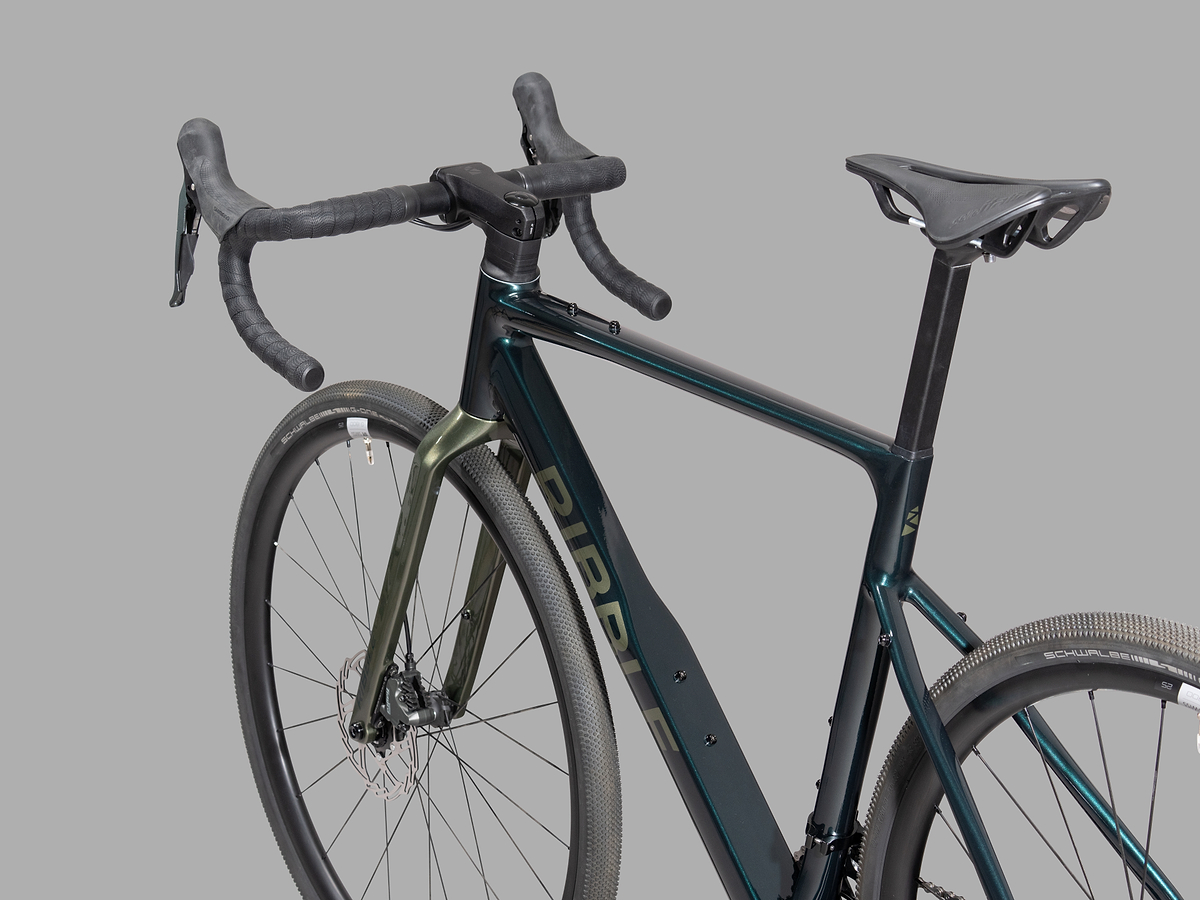

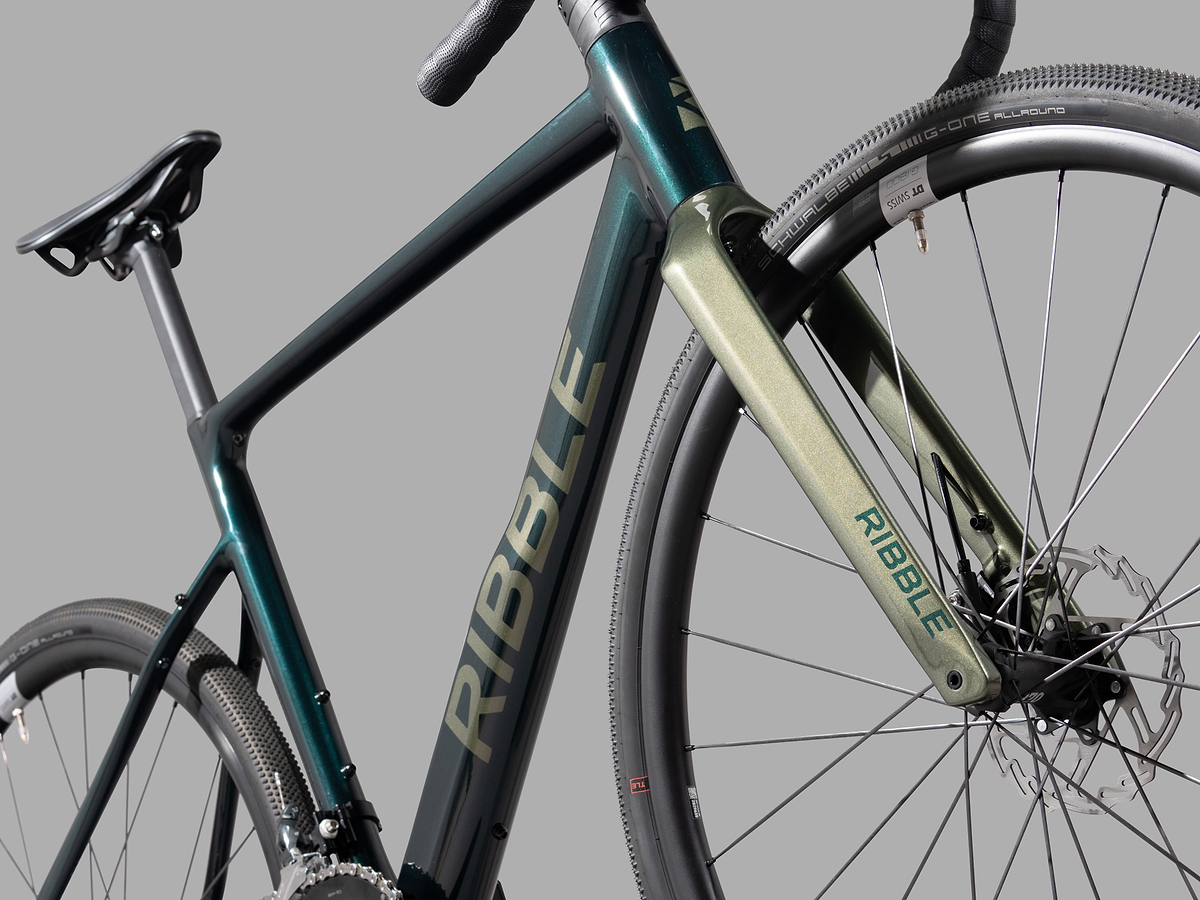

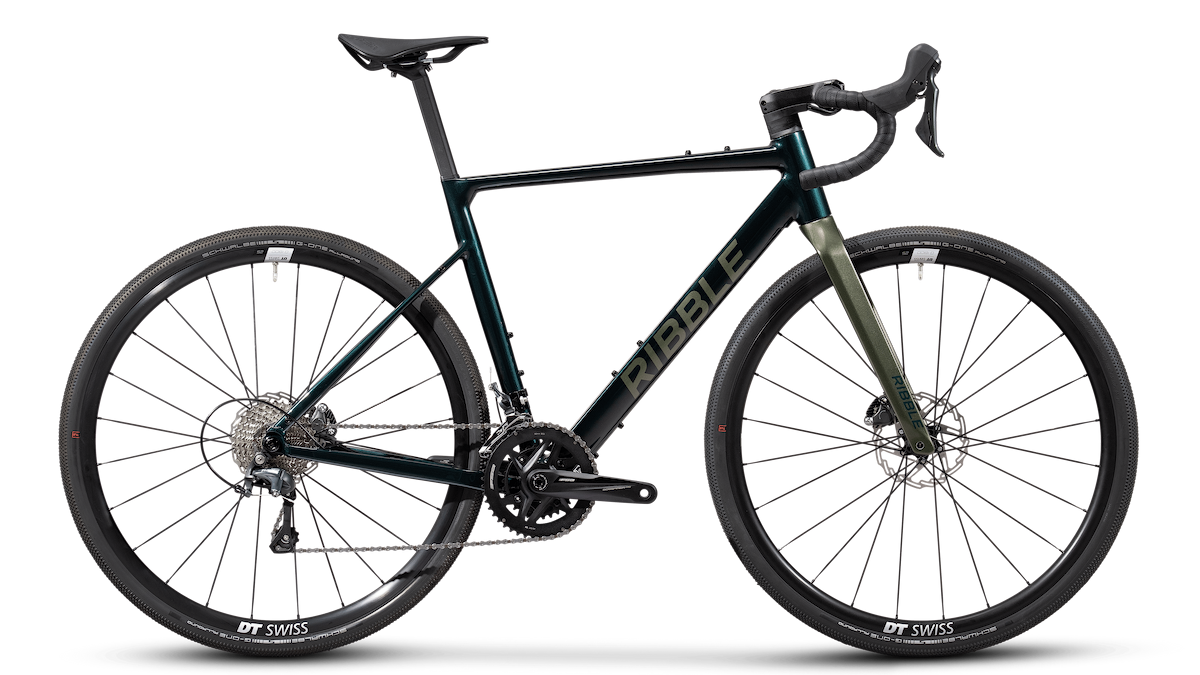

From commutes to café stop rides and gravel spins, the CGR AL delivers comfort, confidence and control across mixed terrain. It pairs a 7005 series hydroformed aluminium frame with Shimano’s Tiagra groupset for reliable 10-speed shifting, durable DT Swiss G 1800 alloy wheels, and 40mm Schwalbe G-One Allround tyres. Finished with a Selle Italia Model X saddle, its built for big rides, rough roads and everything in between.

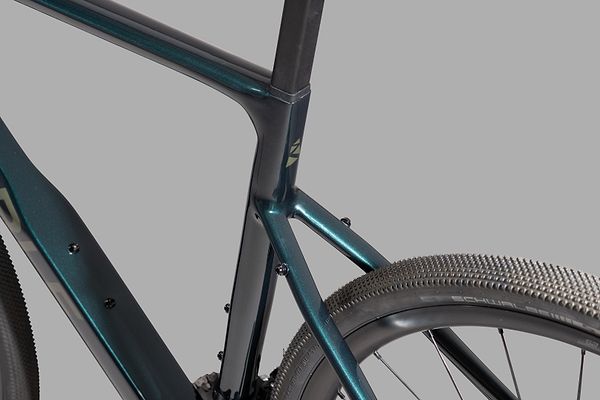

Frameset
Built from upgraded 7005-series aluminium, the CGR AL frameset is lighter and tougher than ever. Hydroformed tubing gives it the clean, aero profile of our Allroad SL R carbon bike, bringing that performance edge to a more accessible platform. Internal cable routing keeps things tidy and works with integrated cockpits for a clean front end. A T47 bottom bracket boosts stiffness and makes internal routing easier, so power transfer stays smooth and handling stays razor sharp.

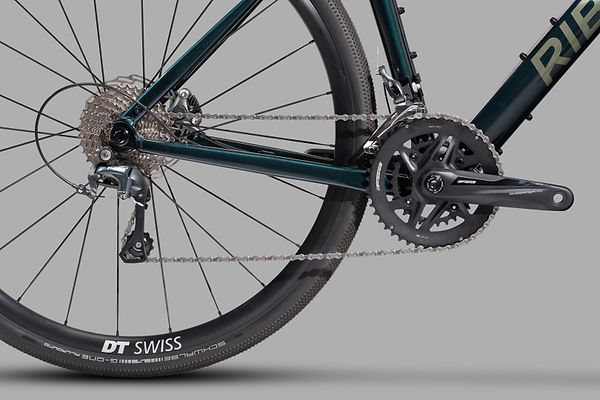

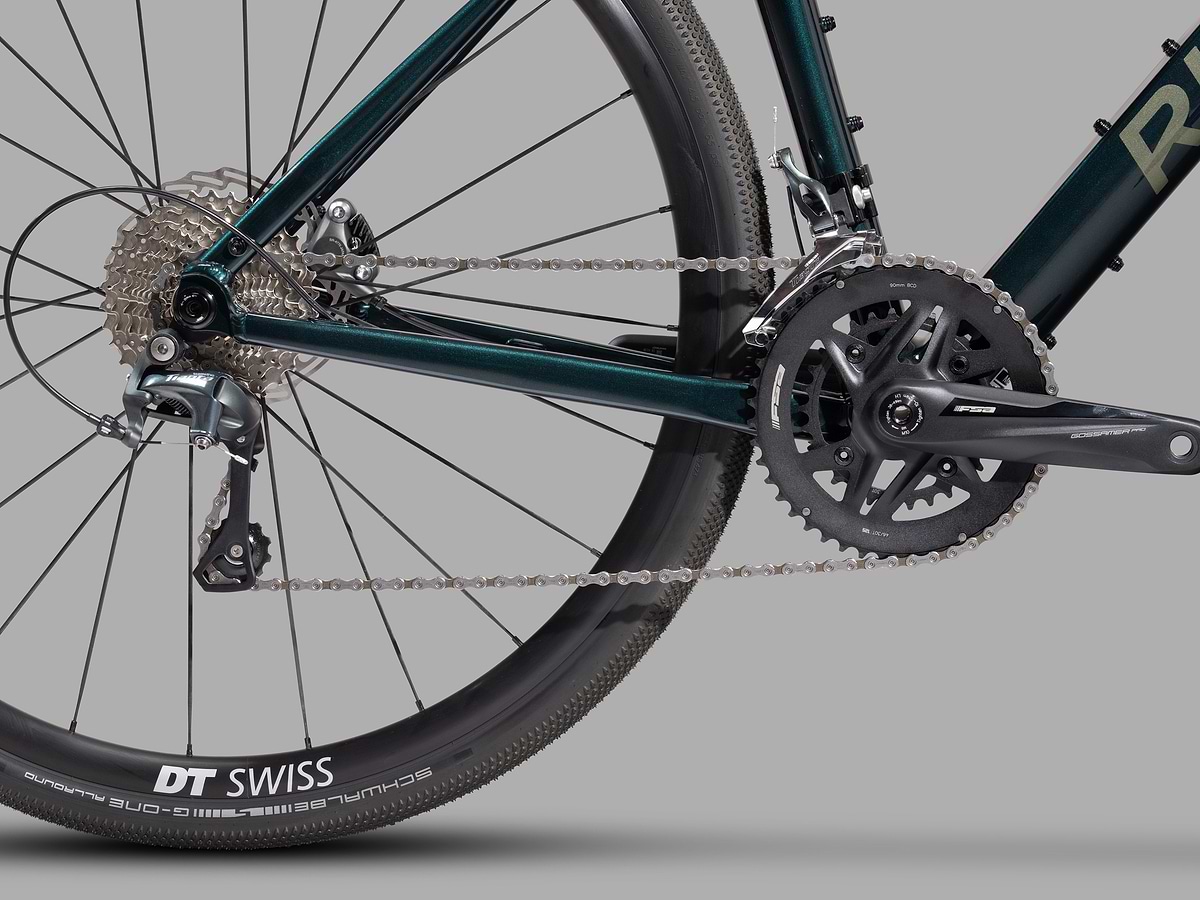

Groupset
Tiagra delivers impressive entry-level performance, featuring cascaded technology from Shimano’s top-tier groupsets. The smooth, reliable shifting of the 2x10-speed Tiagra drivetrain offers consistent year-round performance, inspiring everyday riders to take on new challenges as their cycling journey evolves. Confident braking comes courtesy of hydraulic disc brakes, while the addition of the FSA Gossamer chainset ensures efficient power transfer and dependable performance on every ride.

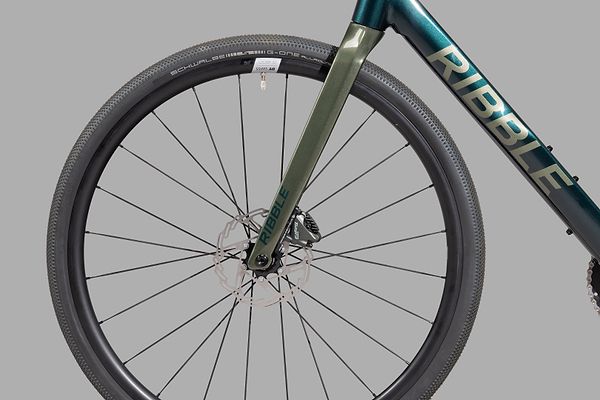

Wheelset
Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

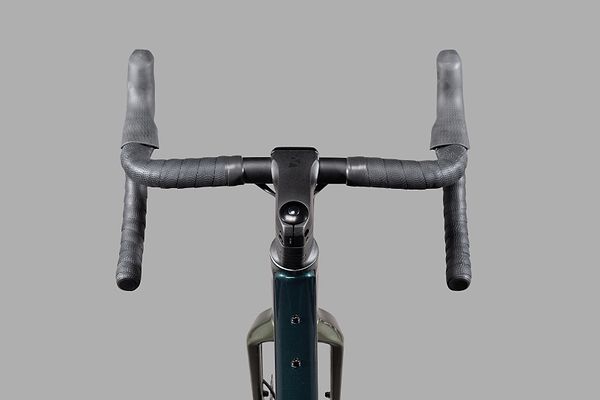

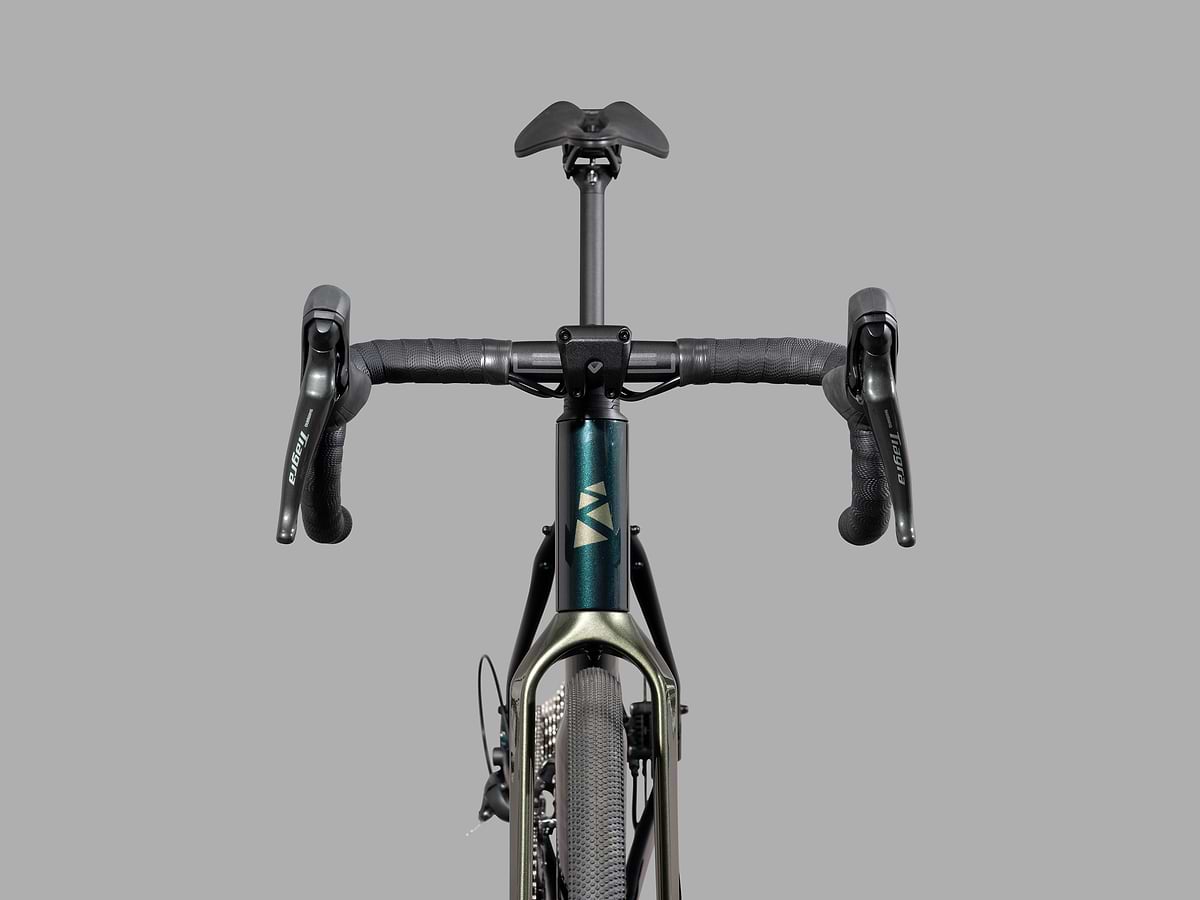

Handlebars
Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke, whether you’re heading out for an hour or all day.

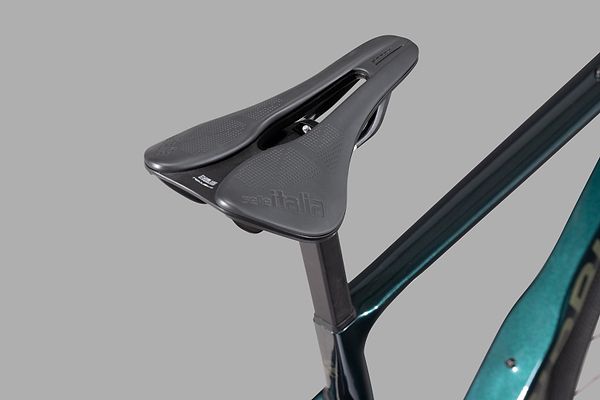

Saddle
Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped alloy post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.


Size
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Geometry

Frequently asked Questions
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- AGX+ Gossamer Pro Chainset 165mm 46-30T
- Alloy Seatpost 350mm D-Shaped w/Ribble Logo
- Allroad Carbon Seatpost Wedge - Ti / Alloy
- Allroad Front Thru-Axle
- CGR AL Carbon Fork Green
- CGR AL G2 Frame C01 XSM 47cm
- CN-HG54 10spd Chain 116 Links
- CS-HG500 10spd Cassette HG 11-34T
- Centre Lock Rotor Lockring
- Chainstay Protector
- D-Shaped Rubber Seat Tube Cover
- Disc Brake Adapter Rear 160mm Flat to Flat
- Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
- Disc Caliper Bolt Black 32mm For Carbon Frames
- Embossed Black Bar Tape
- FD-R4700 Tiagra Front Derailleur Braze On
- Front Mech Clamp 34.9mm
- Inline Cable Adjuster 5mm
- Jagwire LEX-SL Gear Cable Outer - Black 1m
- Long Tail Ferrule
- M3 6mm Hex 2 Countersunk Black
- M40417 1.75mm Freehub Spacer
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- Plastic Shift Cable Housing Ferrule 4.2mm
- RD-4700 Tiagra Medium Cage Rear Derailleur
- Rear Thru Axle w/Ribble Logo 167.5mm P1.0 UDH
- Rubber Circular Bung - 10mm Domehead 8mm Post
- ST-4720 Tiagra STI Lever & BR-4770 Caliper 10sp RH
- ST-4720 Tiagra STI Lever & BR-4770 Caliper 2X LH
- Short Door - Ti Alloy - Single Hole Without Stop
- T47 85.5mm Shimano 24mm Threaded Bottom Bracket
- Tektro CL Rotor 160mm
- Thru Axle Lever
- UDH Rear Hanger Black P1.0 M12 (3PCS)
- Warning sticker sheet Torques to be applied at PDI
Wheelset
- G-One Allround RaceGuard Folding Tyre Black 700x40mm
- G1800 Disc Front Wheel 700c CL
- G1800 Disc Rear Wheel 700c CL HG
- Inner Tube SV17 700x28/47 Presta 40mm
Handlebar
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Level Alloy Handlebar
- Plastic Compression Spider 42mm 0.0mm Offset
- R457B Headset Bearing
- RS-2 Round Headset Bearing Cover for AL
- RS-2 Stem Headset Bearing Cover Kit
Saddle
- Selle Italia Model X Light FeC Saddle
