Description

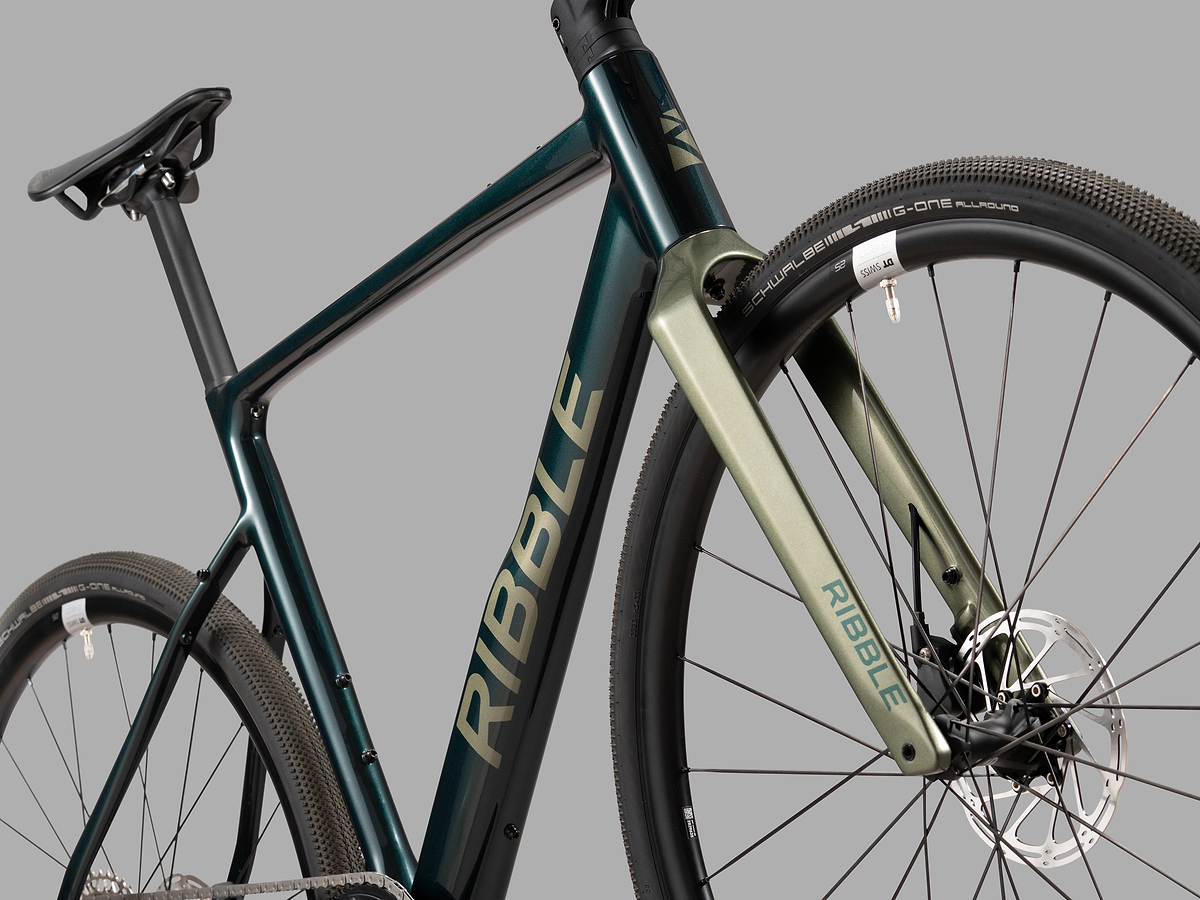

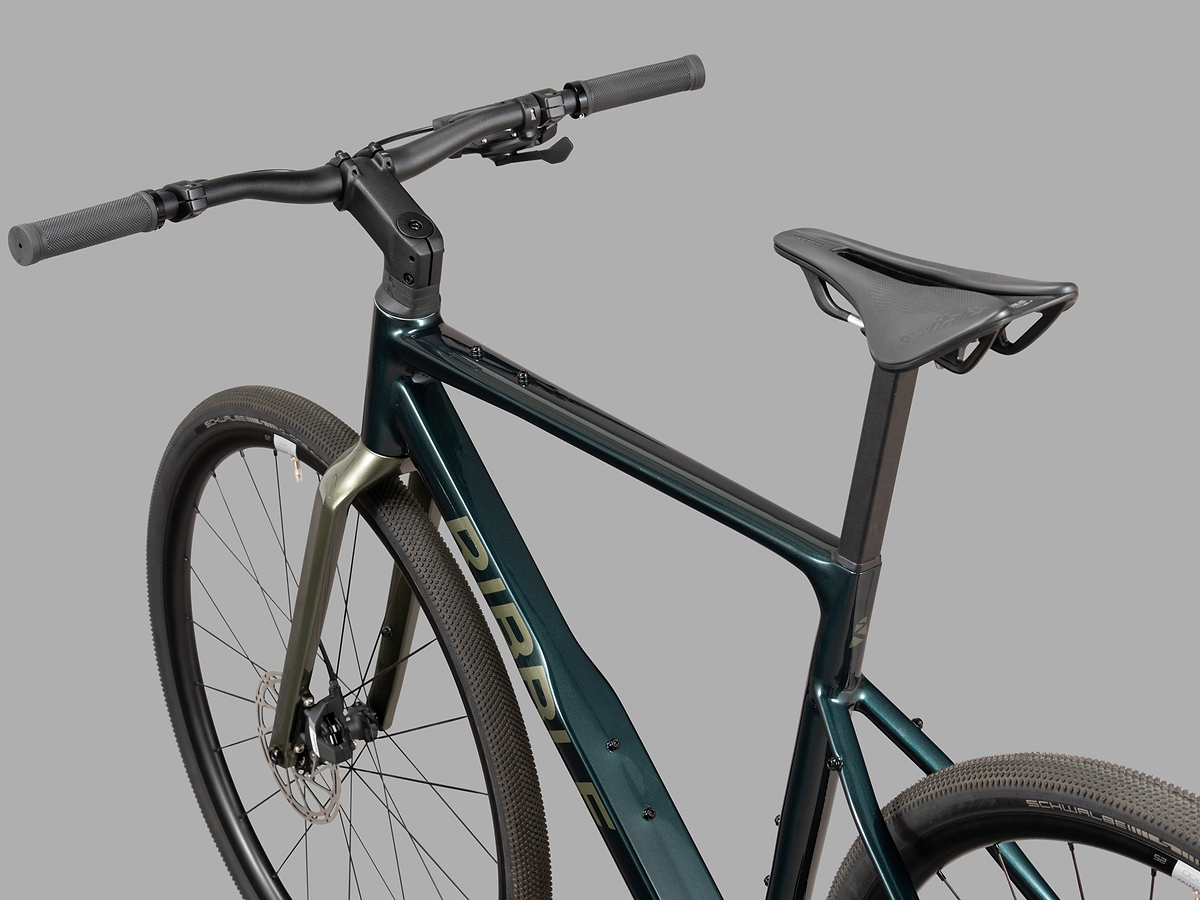

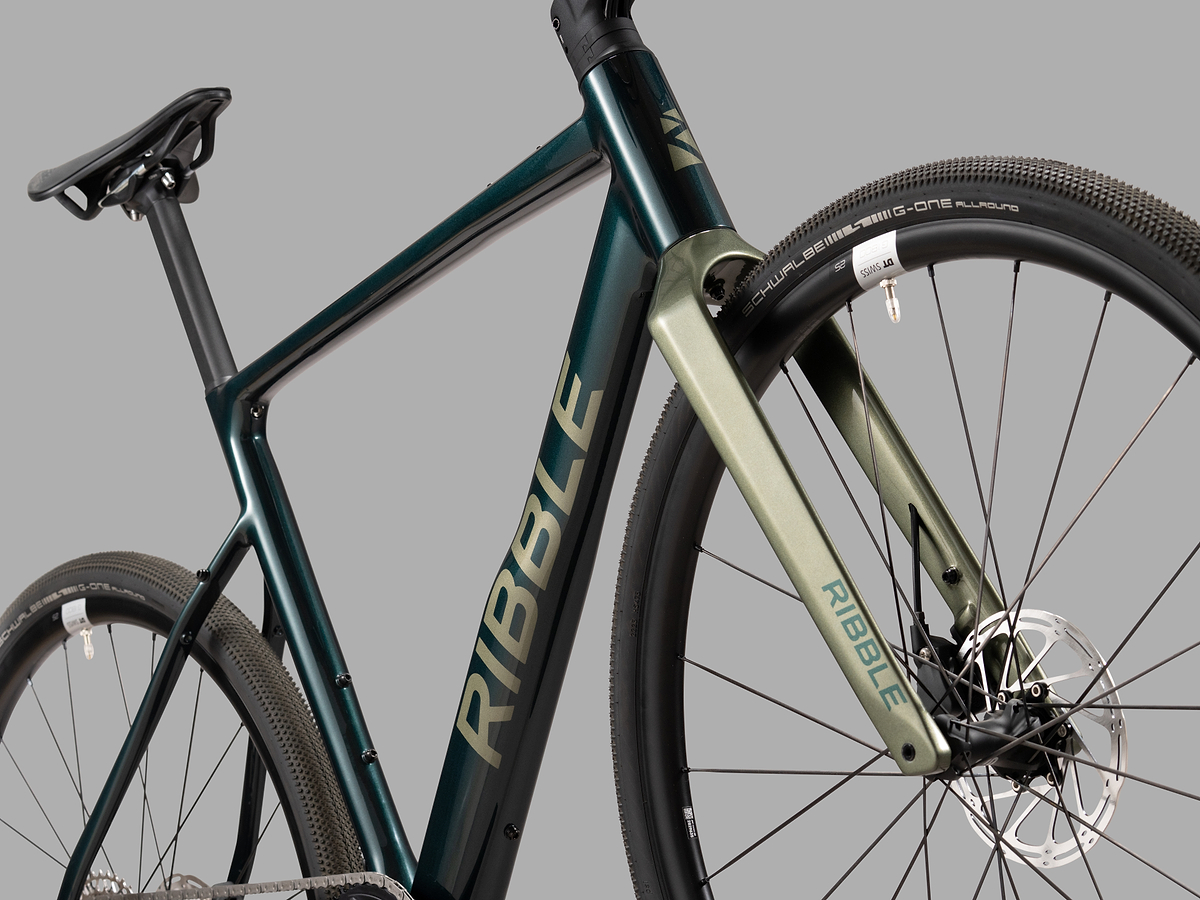

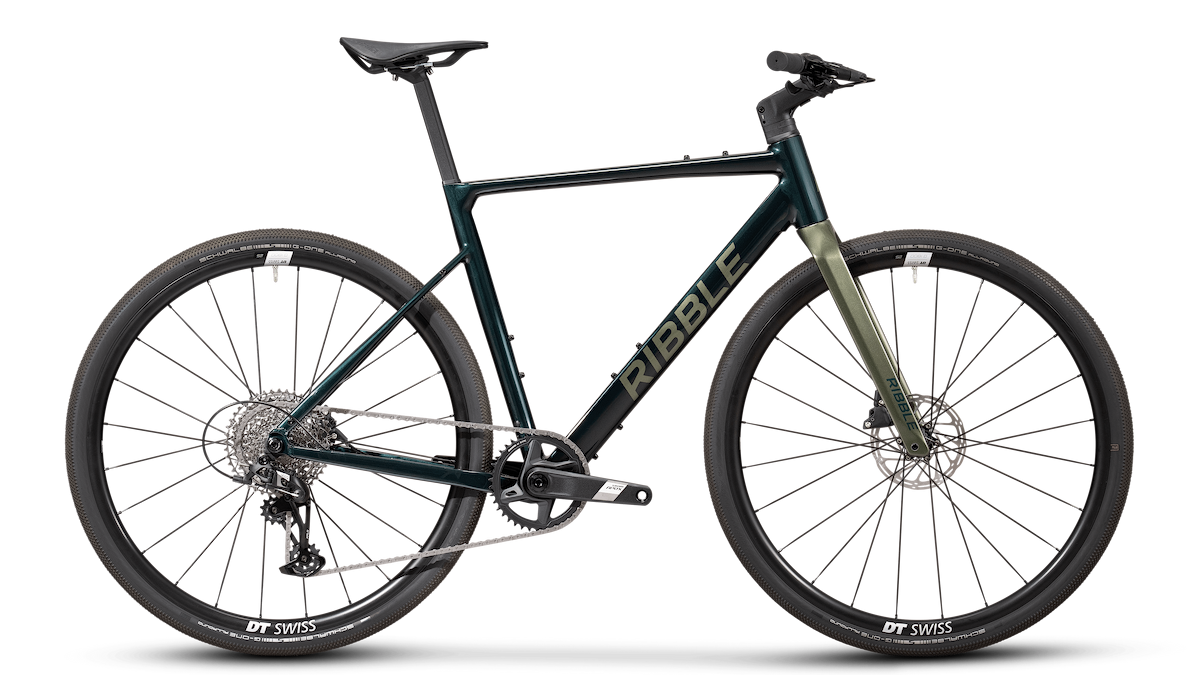

From commutes to gravel rides and Sunday loops, the CGR AL SPORTFIT delivers a more upright and confident position for mixed-terrain rides. It pairs a 7005-series hydroformed aluminium frame with flat bars for extra comfort and control, a wide range SRAM Apex XPLR groupset, durable DT Swiss G 1800 alloy wheels, and Schwalbe G-One Allround tyres. Finished with a Selle Italia Model X saddle, it puts you in charge, whatever your ride.

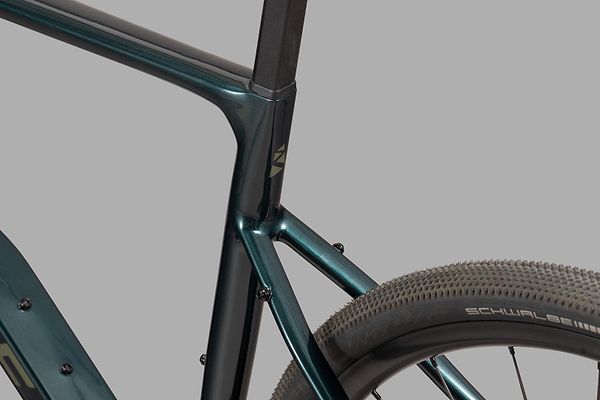

Frameset
Built from upgraded 7005-series aluminium, the CGR AL frameset is lighter and tougher than ever. Hydroformed tubing gives it the clean, aero profile of our Allroad SL R carbon bike, bringing that performance edge to a more accessible platform. Internal cable routing keeps things tidy and works with integrated cockpits for a clean front end. A T47 bottom bracket boosts stiffness and makes internal routing easier, so power transfer stays smooth and handling stays sharp.

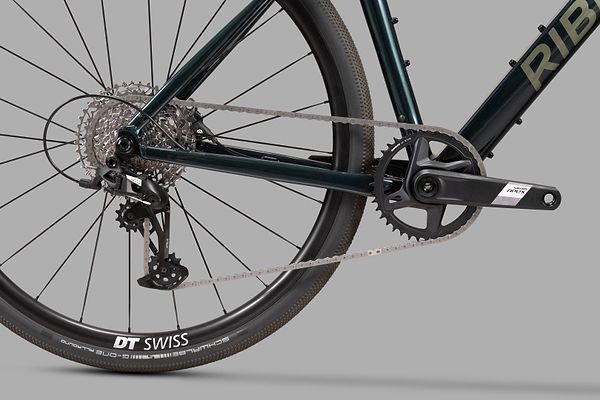

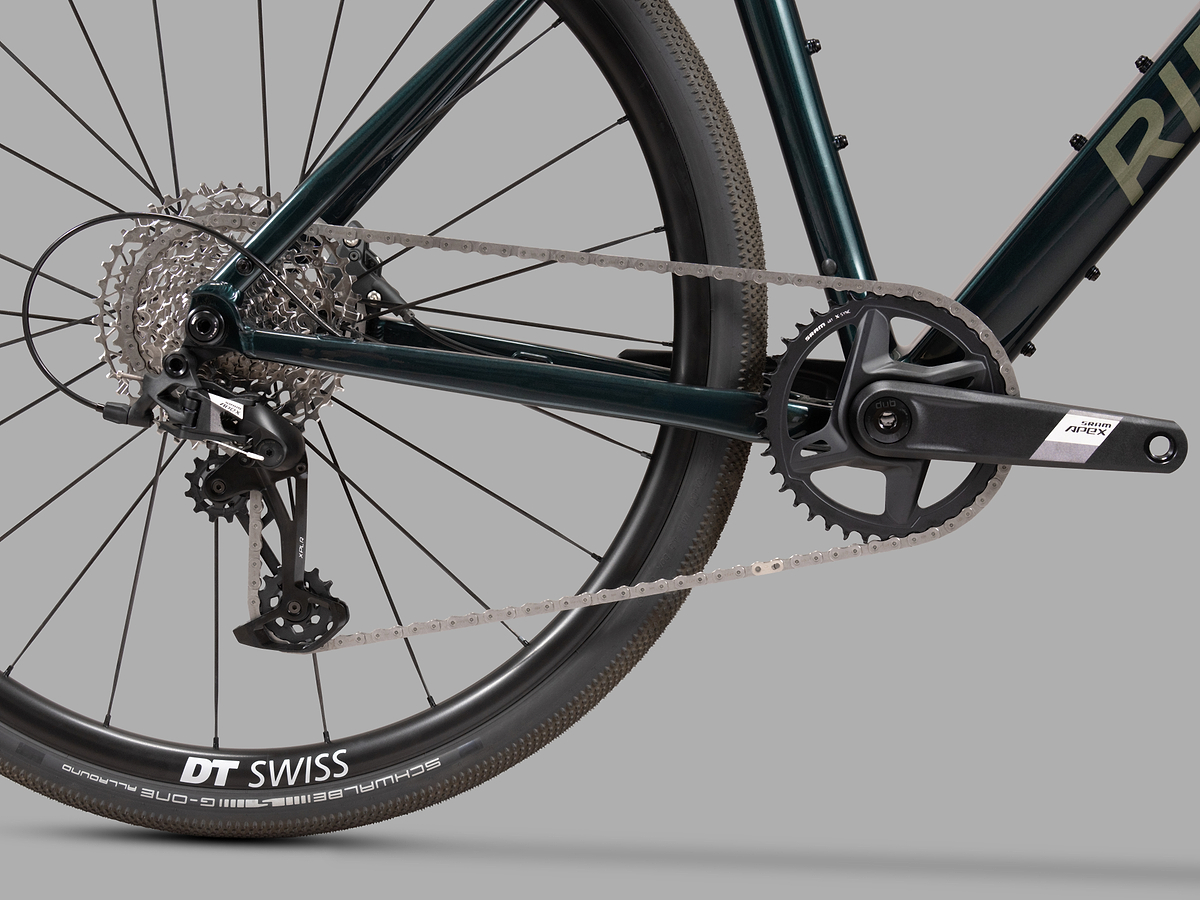

Groupset
When you want your bike to do everything, you need the gears to match. Apex XPLR hits the sweet spot, offering smooth jumps over a big gear range, with the added security and simplicity of a 1x drivetrain and the quiet confidence of hydraulic braking. Rapid and reliable, the wide-range gearing gives you the freedom to go full-gas on gravel, bike pack into the unknown or enjoy a casual cruise.

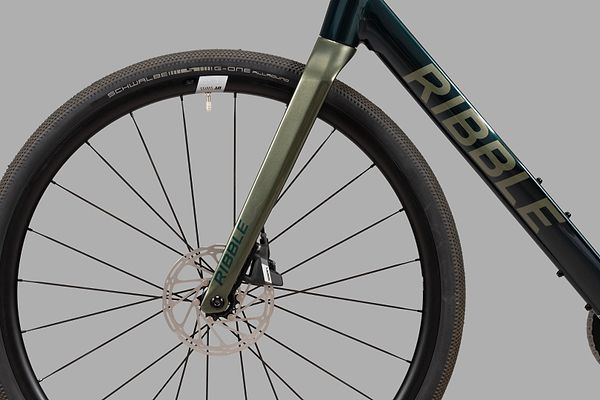

Wheelset
Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

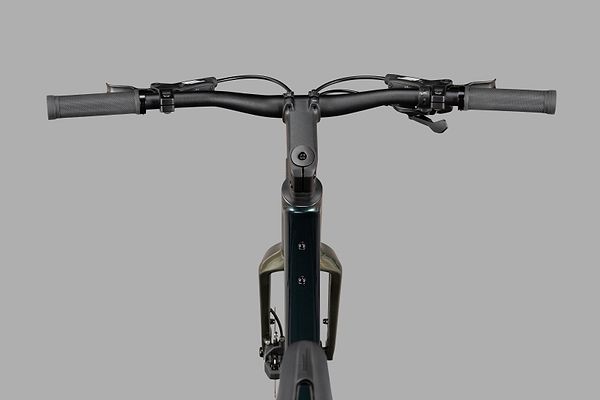

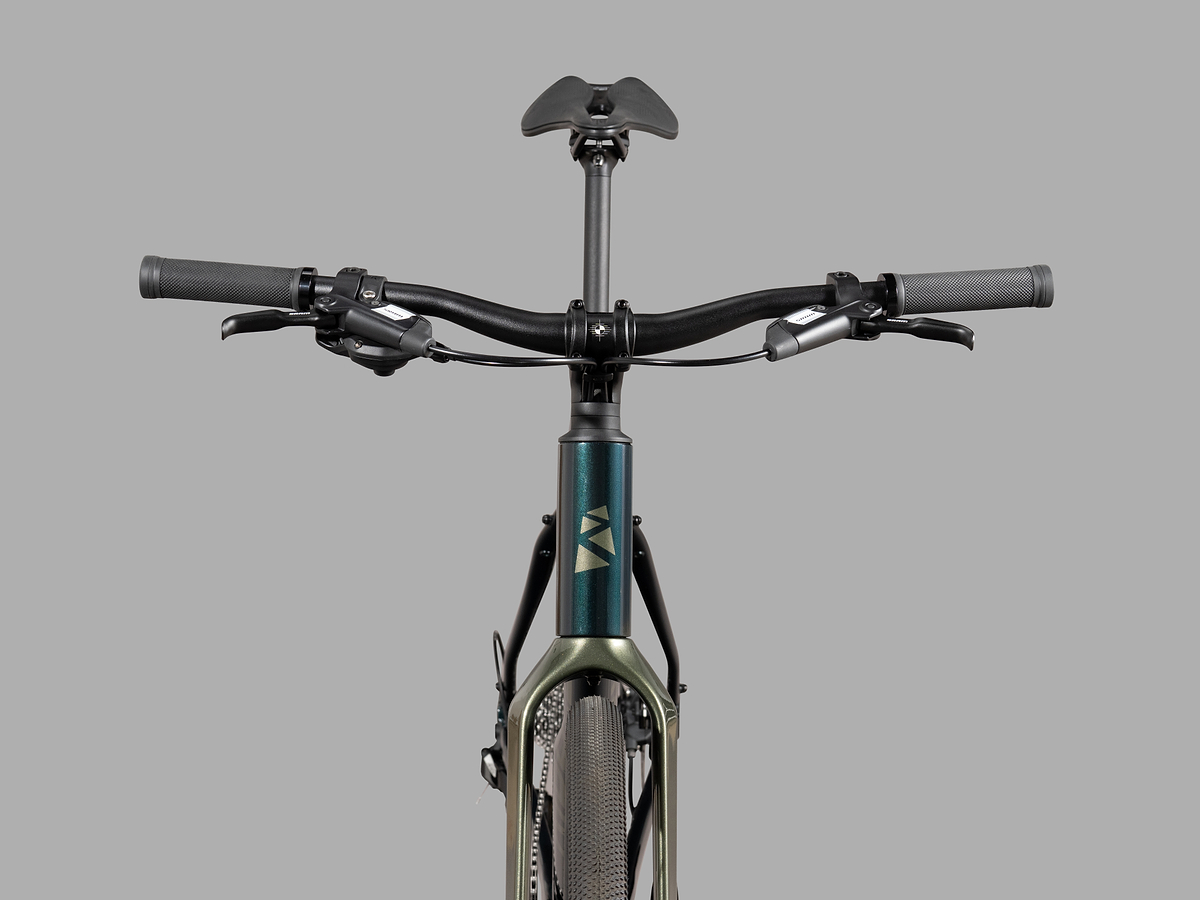

Handlebars
Flat bars put you in a relaxed, upright position so you’ve got a clear view and better control on varied terrain. Ergonomic grips add comfort on longer rides, and the lightweight Ribble alloy stem keeps things steady and responsive, on back lanes, gravel, and everything in between.

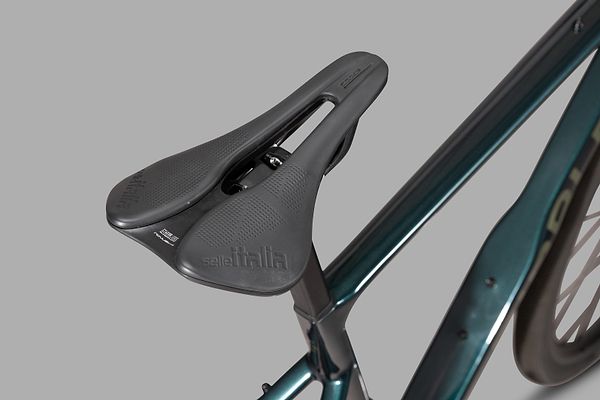

Saddle
Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped alloy post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.
Size
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
Geometry
Frequently asked Questions
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Alloy Riser Flat Bar Black 66cm
- Alloy Riser Stem 90mm
- Alloy Seatpost 350mm D-Shaped w/Ribble Logo
- Alloy Shift Cable Housing Ferrule Black 4.2mm
- Allroad Carbon Seatpost Wedge - Ti / Alloy
- Allroad Front Thru-Axle
- Apex 1 DUB Wide Crankset 165mm 40T
- Apex Flattop 12spd Chain 120 Links
- Apex XPLR Rear Derailleur
- CGR AL Carbon Fork Green
- CGR AL G2 Frame C01 XSM 47cm
- Centre Lock Rotor Lockring
- Centreline CL Rotor 160mm
- Chainstay Protector
- Compression Bushing Fits Stealth-a-Majig System AL
- D-Shaped Rubber Seat Tube Cover
- DB-S300-A1 Brake Lever & Caliper LH 1900mm
- DB-S300-A1 Brake Lever & Caliper RH 950mm
- DUB T47 85.5mm Road WIDE Bottom Bracket
- Disc Caliper Bolt Black 27mm For Alloy Frames
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Headset Bearing Cover for Urban Riser Stem
- Jagwire LEX-SL Gear Cable Outer - Black 1m
- M3 6mm Hex 2 Countersunk Black
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- Needle Insert Fits Stealth-a-Majig System SS
- PG1231 XPLR Cassette HG 11-44T
- Plastic Compression Spider 42mm 0.0mm Offset
- R457B Headset Bearing
- Rear Thru Axle w/Ribble Logo 167.5mm P1.0 UDH
- Rubber Circular Bung - 10mm Domehead 8mm Post
- Rubberised Bar Grips Black
- SX Eagle Trigger Shifter 12spd RH
- Short Door - Ti Alloy - Single Hole Without Stop
- Starter Kit Black One Size
- Thru Axle Lever
- UDH Rear Hanger Black P1.0 M12 (3PCS)
- Urban Riser Stem Spacer - 10mm
- Urban Riser Stem Spacer - 15mm
- Warning sticker sheet Torques to be applied at PDI
Wheelset
- G-One Allround RaceGuard Folding Tyre Black 700x40mm
- G1800 Disc Front Wheel 700c CL
- G1800 Disc Rear Wheel 700c CL HG
- Inner Tube SV17 700x28/47 Presta 40mm
Saddle
- Selle Italia Model X Light FeC Saddle
