CGR AL - Sport
Shimano Tiagra

  • £1,399
Built to handle multi-surface rides with confidence, from rugged roads to smooth tarmac, the CGR AL's contemporary aluminium design, road plus tyres, and comfort-oriented riding position make it perfect for year-round riding. In Sport specification, the CGR AL is paired with the accurate and reliable Shimano Tiagra 2x10-speed groupset, versatile Mavic Allroad 1 wheels, fast-rolling 40mm Schwalbe G-One tyres, and a Selle Italia X3 saddle.
Choose Your Size
Product code: BCGRAL4700D

...And Many Ways To Pay...

  • "Realistic multi-use capability, great value, decent weight"
    Bike Radar
DescriptionGroupsetWheelsetHandlebarsSaddleSizeGeometryFrequently Asked Questions

Description

Built to handle multi-surface rides with confidence, from rugged roads to smooth tarmac, the CGR AL's contemporary aluminium design, road plus tyres, and comfort-oriented riding position make it perfect for year-round riding. In Sport specification, the CGR AL is paired with the accurate and reliable Shimano Tiagra 2x10-speed groupset, versatile Mavic Allroad 1 wheels and fast-rolling 40mm Schwalbe G-One tyres, with a Selle Italia X3 saddle.

Groupset

Shimano's Tiagra 2x10 speed drivetrain sets the benchmark for value, performance, and durability. Featuring the same technology as its top-tier siblings, Tiagra provides the same intuitive shifting performance, reliability, and durability that makes it the go-to for commuters and recreational riders alike. The superior stopping power of mechanical disc brakes inspires confidence when braking in mixed conditions and on varied terrain.

Groupset

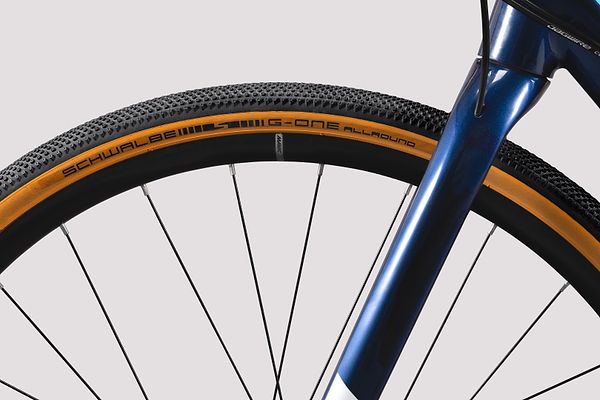

Wheelset

Designed for durability and reliability, Mavic’s versatile Allroad 1 wheelset gives you the confidence to tackle mixed surface routes with smooth control-paired with Schwalbe G-One Tyres 40mm in tan wall design, these multi-purpose gravel tyres are perfectly suited to everything from hidden dirt tracks to rapid road rides.

Wheelset

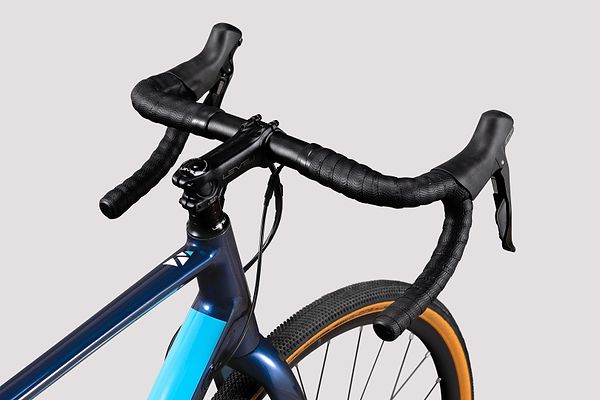

Handlebars

LEVEL alloy handlebars offer a shorter drop and reach, providing easier transitions from the tops and hoods to the drops with minimal change of position. They feature an ergonomic design that helps almost any cyclist find their optimal ride position for enhanced comfort and less fatigue. Wrapped in a comfortable LEVEL bar tape and neatly matched with a LEVEL handlebar stem.

Handlebars

Saddle

A lightweight LEVEL alloy seat post paired with an ergonomic Selle Italia X3 saddle provides riders with the outstanding comfort and support they need to explore every tarmac road or gravel trail.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeXXSXSSMMDLGXL
Rider Height5'0" - 5'4" (152 - 162cm)5'4" - 5'7" (162 - 170cm)5'7" - 5'9" (170 - 175cm)5'9" - 5'11" (175 - 180cm)5'11" - 6'1" (180 - 185cm)6'1" - 6'4" (185 - 194cm)
Crank Length (mm)165170170172.5172.5172.5
Seat Angle75°74.5°74°73.5°73°72.5°
Top Tube (mm)500520540555570590
Head Angle70°70.5°71°71.5°72°72°
Offset (mm)505050505050
Head Tube (mm)120140150170190200
BB Drop696969696969
Seat Tube (mm)450470510530555580
RC - Chainstay (mm)435435435435435435
FC - Front Centre (mm)580595605611616630
Reach (mm)356365377380383395
Stack (mm)538556568589610620
WB - Wheelbase (mm)10051021.51023.11036.81041.81055

Frequently Asked Questions

The frame weighs 1680 g, and the carbon fork 410 g (+/-5g size M). Full bike builds start from 9.8 kg for the Pro Build.

We offer a lifetime warranty on all Ribble frames and forks for the original purchaser. This covers any manufacturing defects in materials or workmanship so you can ride with complete confidence. The standard manufacturer's warranty covers all other components.

There's ample clearance for 700c x 45mm or 650b x 47 mm tyres (manufacturer/tread profile dependent), which is reduced to 40 mm if mudguards are fitted.

The frame includes discreet mudguard mounts, enabling full length mudguards to be fitted.

The seat post diameter is 27.2 mm and the seat collar is 31.8 mm.

There are three in total. They are situated on the seat tube, down tube, and underneath the down tube (generally used for a tool caddy).

The CGR AL includes discreet mounts to fit a rear pannier rack, handling all your luggage-carrying needs.

The BB shell is a 68mm BSA threaded.

The CGR AL uses M12 x 100 x 1.5 and M12 x 162 mm x 1.5 front and rear thru axles.

We recommend a maximum system weight of 120 kg (bike, rider & luggage).

It's designed to accept the latest flat-mount disc brakes.

We do not supply pedals with our bikes due to the various systems people use. However, when configuring your bike, you can select from a range of our best-selling pedals.
