Description

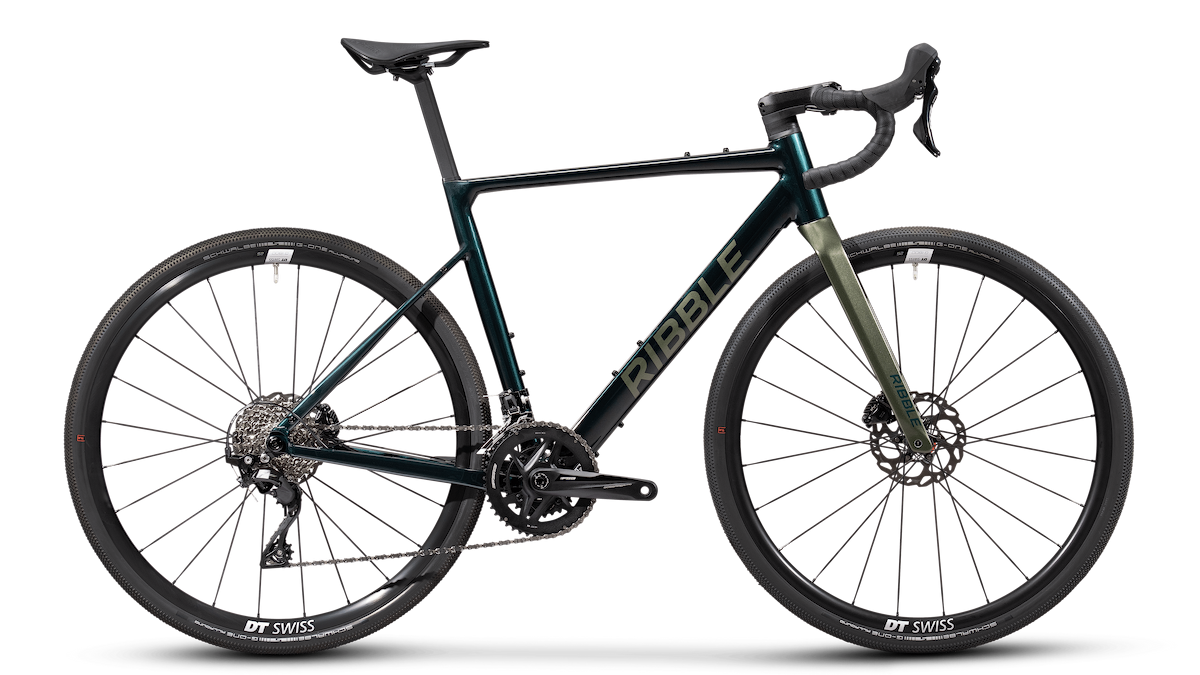

From commutes to café stop rides and gravel spins, the CGR AL delivers comfort, confidence and control across mixed terrain. It pairs a 7005 series hydroformed aluminium frame with Shimano’s 105 12-speed groupset for precision performance, durable DT Swiss G 1800 alloy wheels, and Schwalbe G-One Allround tyres. Finished with a Selle Italia Model X saddle, its the do it all bike that keeps on delivering mile after mile.

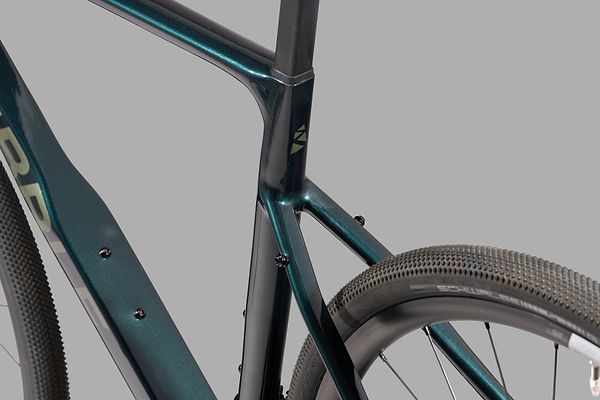

Frameset
Built from upgraded 7005-series aluminium, the CGR AL frameset is lighter and tougher than ever. Hydroformed tubing gives it the clean, aero profile of our Allroad SL R carbon bike,bringing that performance edge to a more accessible platform. Internal cable routing keeps things tidy and works with integrated cockpits for a clean front end. A T47 bottom bracket boosts stiffness and makes internal routing easier, so power transfer stays smooth and handling stays sharp.

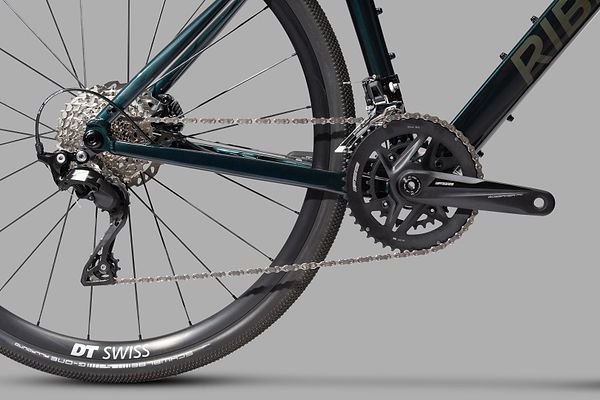

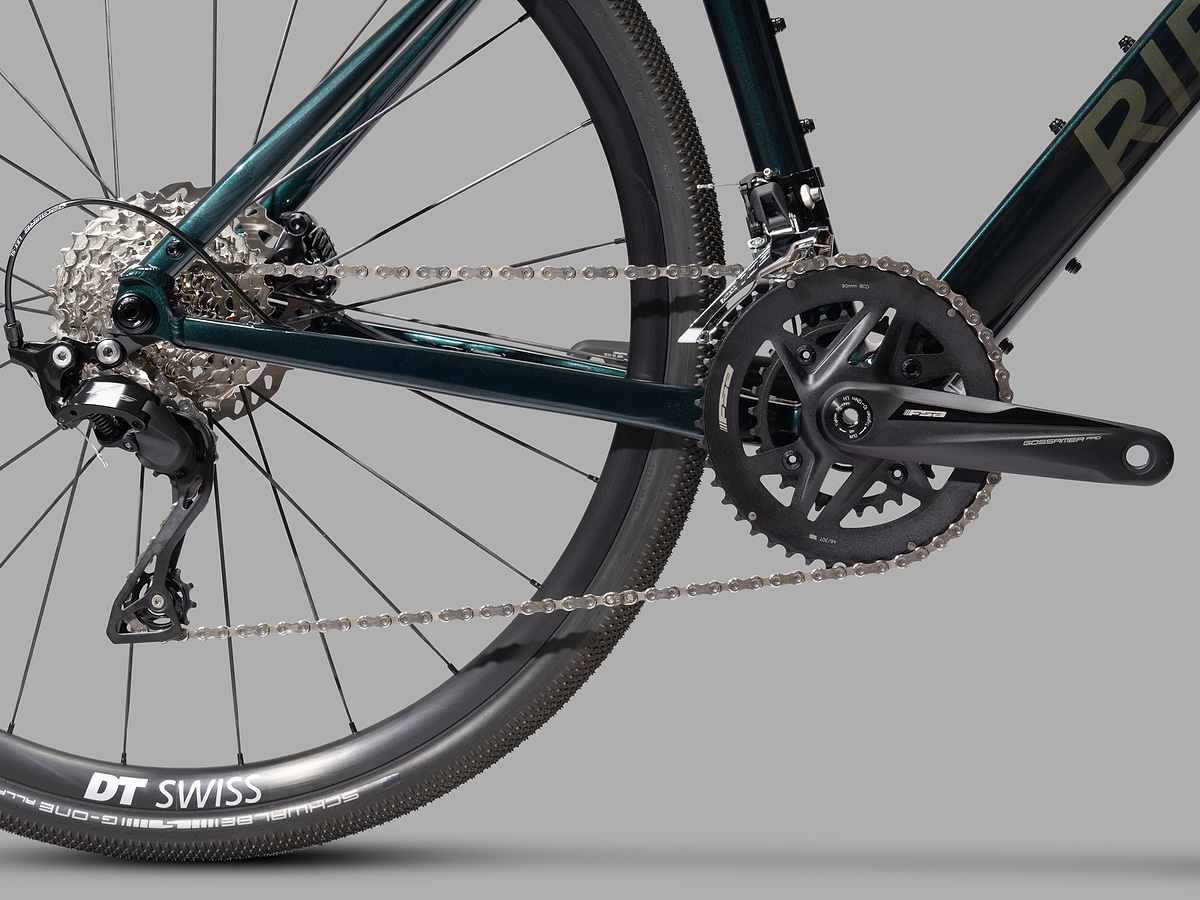

Groupset
Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. The 105 R7100 combines pure cycling with pure craftsmanship, delivering the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level and is paired with the lightweight, performance-driven FSA Gossamer chainset for efficient power delivery with every pedal stroke.

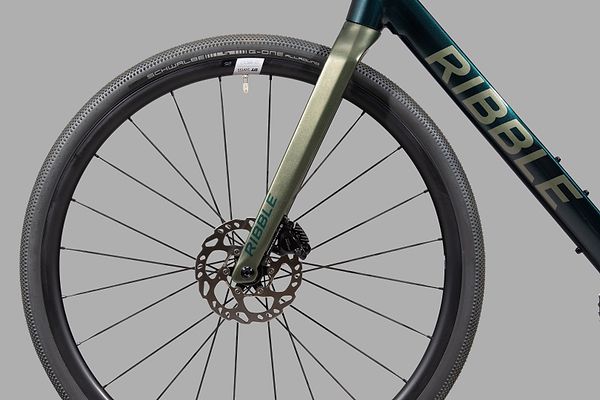

Wheelset
Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

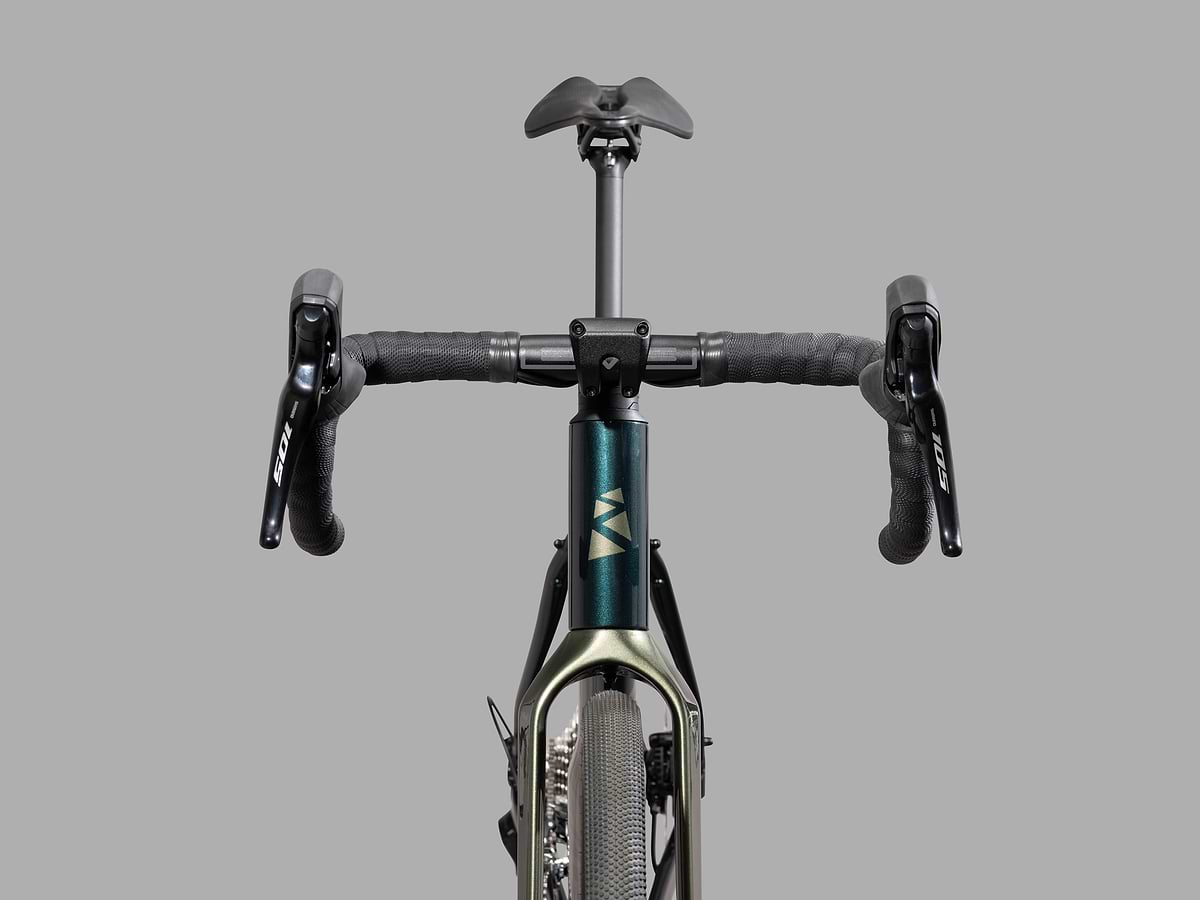

Handlebars
Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke—whether you’re heading out for an hour or all day.

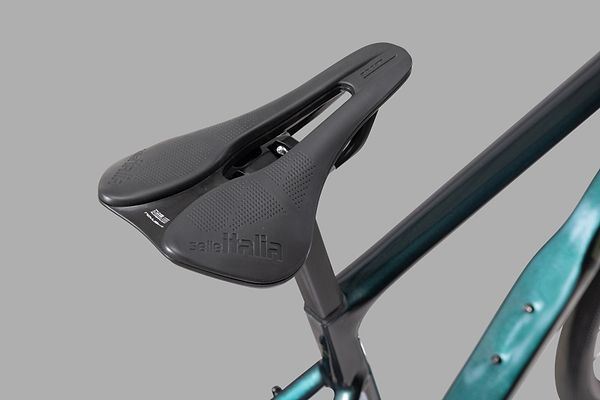

Saddle
Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped alloy post and Selle Italia Model X saddle work together to soak up the buzz and smooth out the ride.
Size
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
Geometry
Frequently asked Questions
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- AGX+ Gossamer Pro Chainset 165mm 46-30T
- Alloy Seatpost 350mm D-Shaped w/Ribble Logo
- Allroad Carbon Seatpost Wedge - Ti / Alloy
- Allroad Front Thru-Axle
- CGR AL Carbon Fork Green
- CGR AL G2 Frame C01 XSM 47cm
- CN-M7100 SLX 12spd Chain 126 Links
- CS-HG710 12spd Cassette HG 11-36T
- Chainstay Protector
- D-Shaped Rubber Seat Tube Cover
- Disc Brake Adapter Rear 160mm Flat to Flat
- Disc Brake Hose Parts-Connector Insert Bulk 2.1mm
- Disc Caliper Bolt Black 32mm For Carbon Frames
- Embossed Black Bar Tape
- FD-R7100 105 12spd Front Derailleur Braze On
- Front Mech Clamp 34.9mm
- Jagwire LEX-SL Gear Cable Outer - Black 1m
- Long Tail Ferrule
- M3 6mm Hex 2 Countersunk Black
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- Plastic Shift Cable Housing Ferrule 4.2mm
- RD-R7100 105 12spd Rear Derailleur
- RT-CL700 SI Rotor with Lockring 160mm
- Rear Thru Axle w/Ribble Logo 167.5mm P1.0 UDH
- Rubber Circular Bung - 10mm Domehead 8mm Post
- ST-R7120 105 STI Lever & BR-R7170 Caliper 12spd RH
- ST-R7120 105 STI Lever & BR-R7170 Caliper 2X LH
- Short Door - Ti Alloy - Single Hole Without Stop
- T47 85.5mm Shimano 24mm Threaded Bottom Bracket
- Thru Axle Lever
- UDH Rear Hanger Black P1.0 M12 (3PCS)
- Warning sticker sheet Torques to be applied at PDI
Wheelset
- G-One Allround RaceGuard Folding Tyre Black 700x40mm
- G1800 Disc Front Wheel 700c CL
- G1800 Disc Rear Wheel 700c CL HG
- Inner Tube SV17 700x28/47 Presta 40mm
Handlebar
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- Level Alloy Handlebar
- Plastic Compression Spider 42mm 0.0mm Offset
- R457B Headset Bearing
- RS-2 Round Headset Bearing Cover for AL
- RS-2 Stem Headset Bearing Cover Kit
Saddle
- Selle Italia Model X Light FeC Saddle
