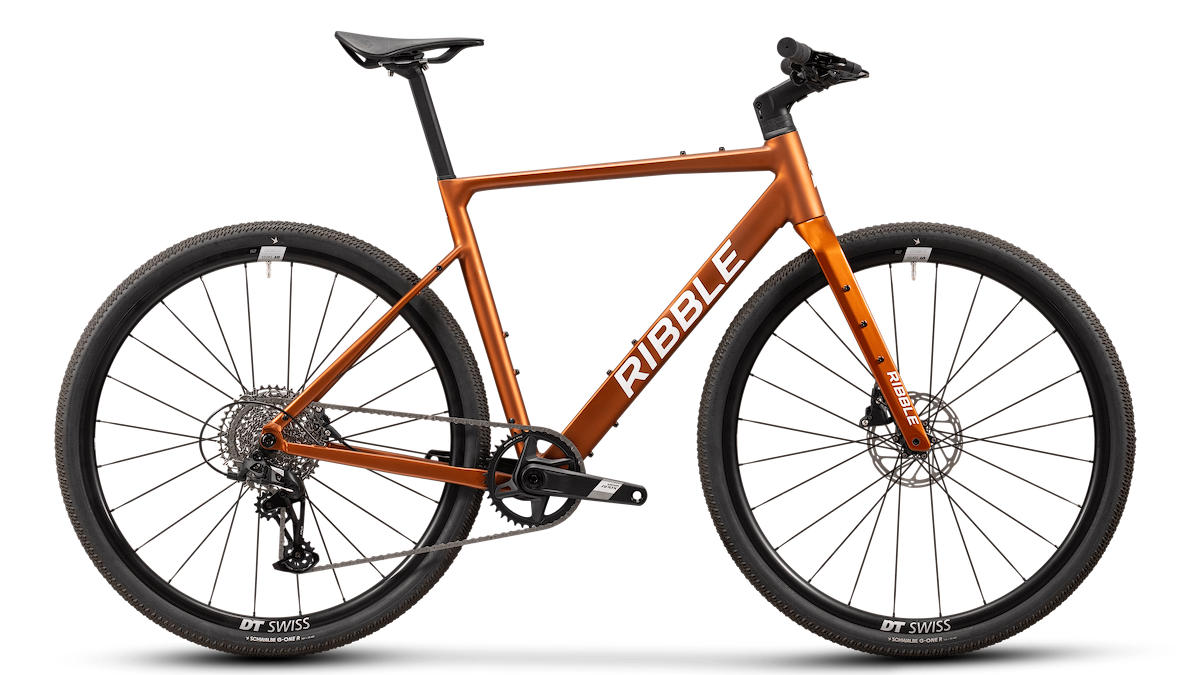

Allgrit AL Sportfit Apex XPLR

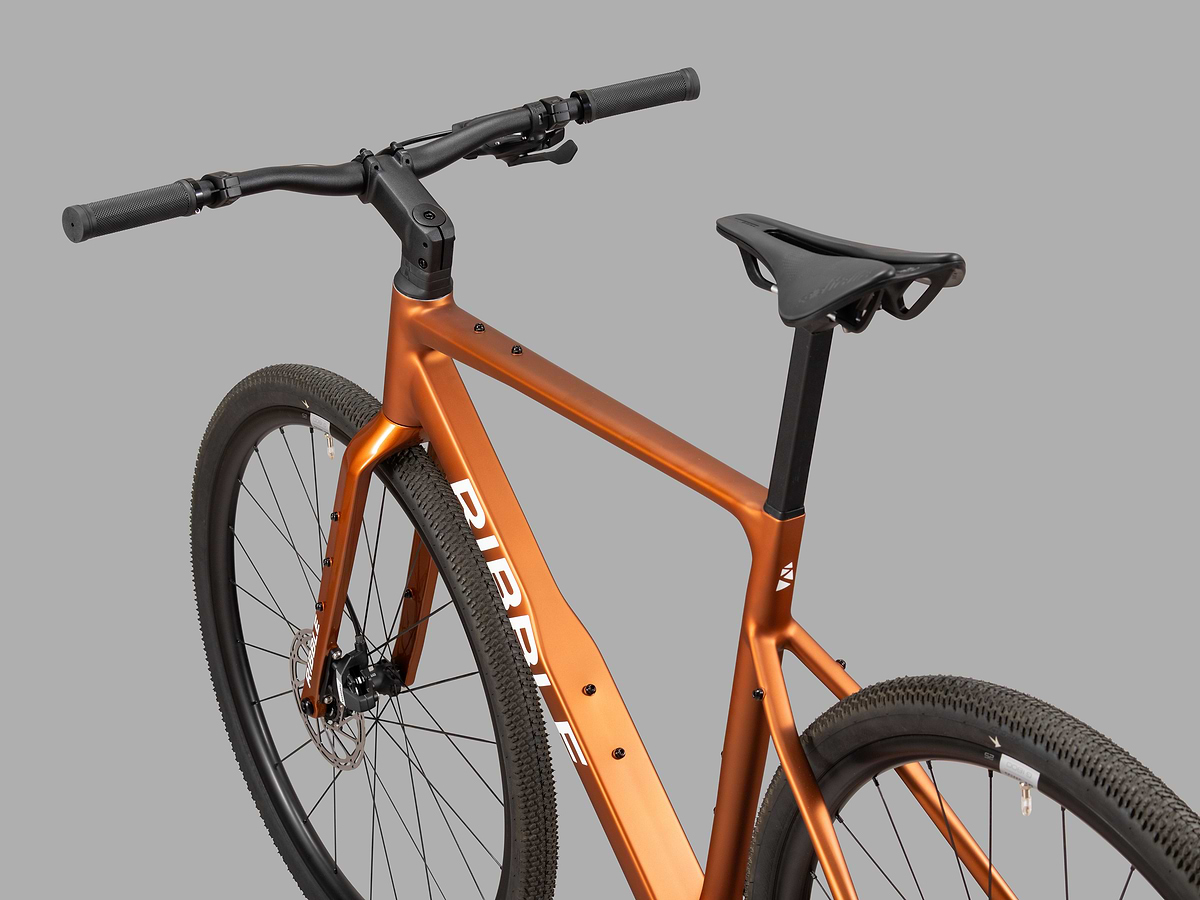

Allgrit AL Sportfit Apex XPLR image 2

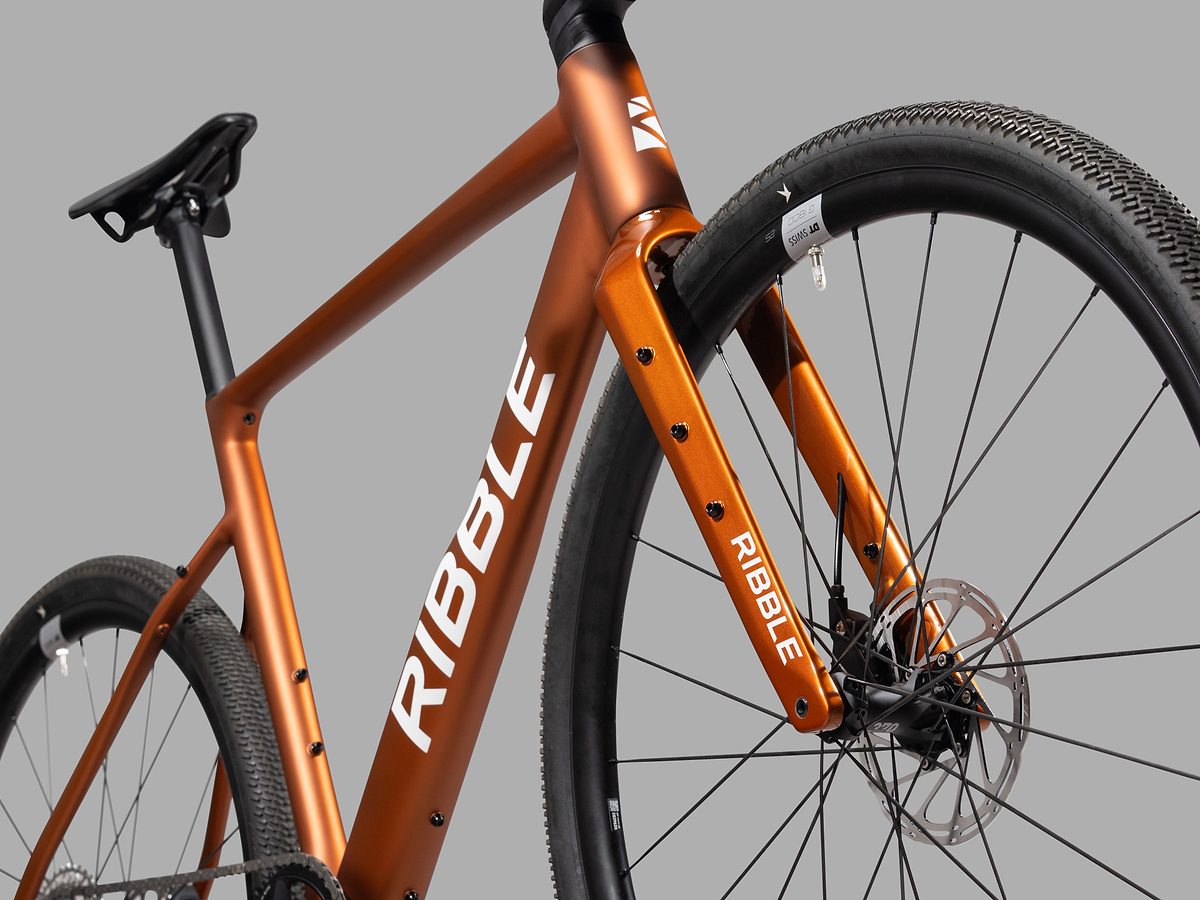

Allgrit AL Sportfit Apex XPLR image 3

Allgrit AL Sportfit Apex XPLR

Built to order in the UK
The ALLGRIT AL SPORTFIT is built for versatility and comfort, with a more upright and confident riding position for greater control on varied terrain. From daily detours to cross-country epics, it’s…
£1,699
V12 Finance·Klarna·PayPal
colour
Choose Your Size
Product code: BGRAVALG2APXPFB

Ways to pay

Why Ribble?

BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.

LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.

30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.

30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.

BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.

Description

The ALLGRIT AL SPORTFIT is built for versatility and comfort, with a more upright and confident riding position for greater control on varied terrain. From daily detours to cross-country epics, it’s ready to carry you and your gear wherever you need to go. Weighing just 10.0 kg, it pairs our lightweight 7005 aluminium frame with confidence-enhancing flat handlebars, a rugged wide-range SRAM Apex XPLR drivetrain, durable DT Swiss G 1800 alloy wheels, versatile 45 mm Schwalbe G-One R Performance tyres and an adventure-ready Selle Italia Model X saddle.

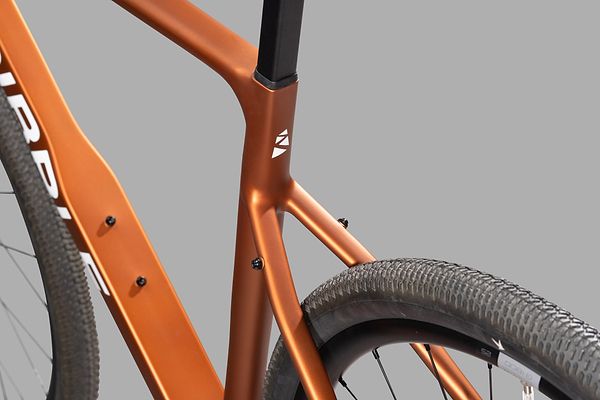

Frameset

Crafted from lightweight 7005 aluminium, this frameset delivers an ideal combination of strength, responsiveness, and low weight. Its hydroformed tube profiles are carefully shaped for maximum aerodynamic efficiency, ensuring minimal drag and maximum speed. Full internal cable integration and seamless weld technology contribute to a clean, refined look that rivals the sleek aesthetic of high-end carbon frames. The result is a frameset that performs as impressively as it looks. Fast, smooth, and uncompromising in style.

Frameset

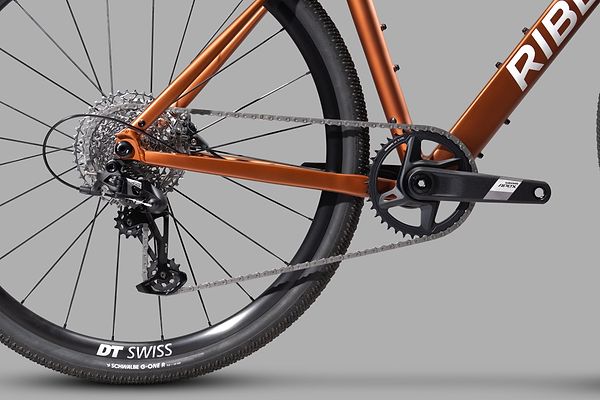

Groupset

When you want your bike to do everything, you need the gears to match. Apex XPLR hits the sweet spot, offering smooth jumps over a big gear range, with the added security and simplicity of a 1x drivetrain and the quiet confidence of hydraulic braking. Rapid and reliable, the wide-range gearing gives you the freedom to go full-gas on gravel, bike pack into the unknown or enjoy a casual cruise.

Groupset

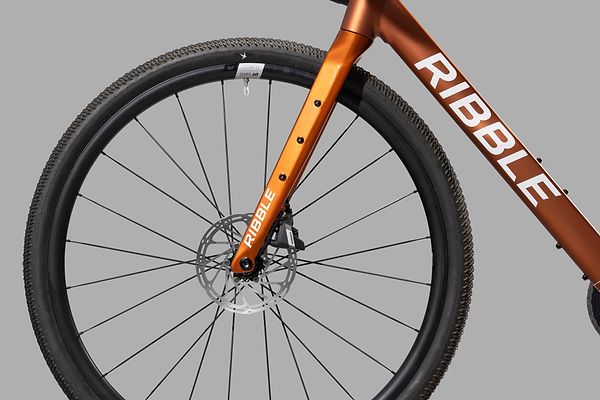

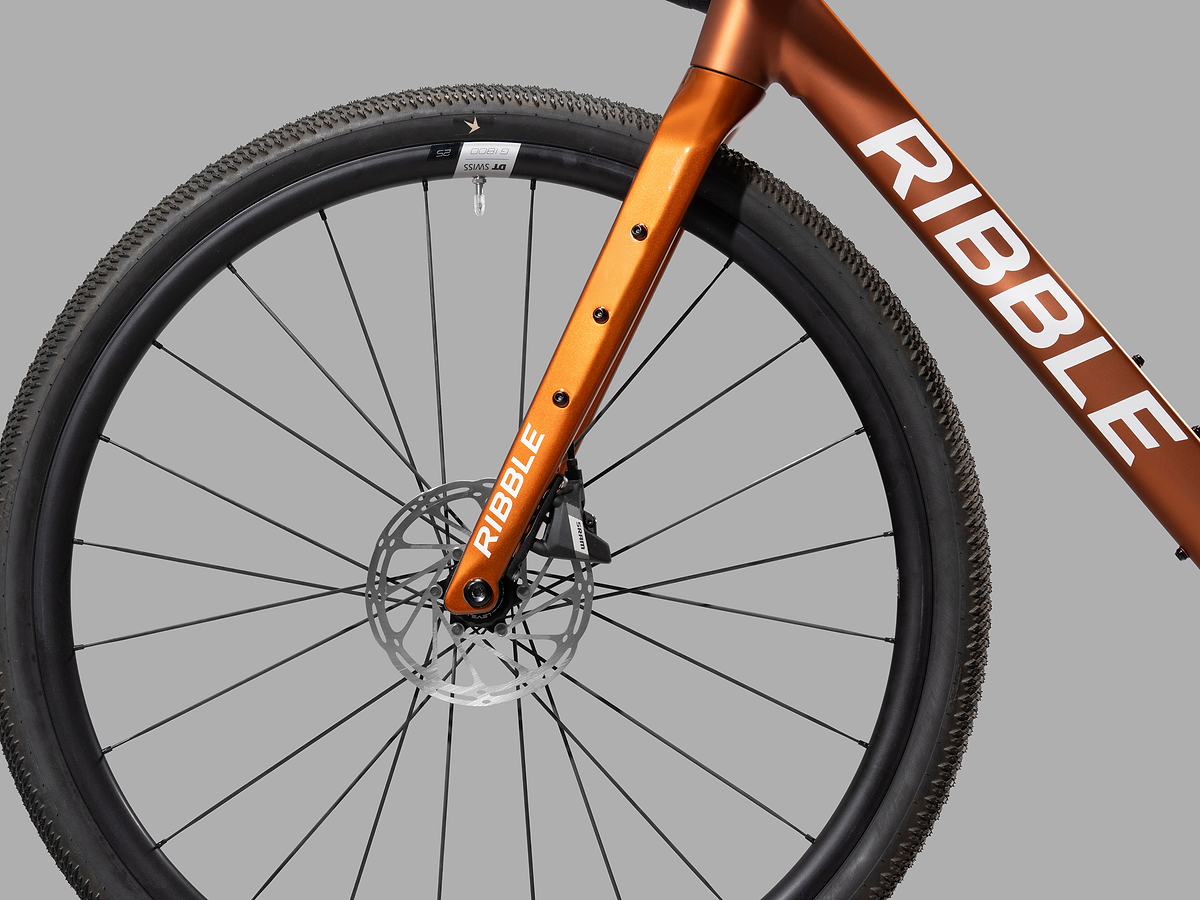

Wheelset

Boasting a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident control and comfort across rough and unpredictable gravel terrain. Paired with 45 mm Schwalbe G-One R Performance tyres, it strikes the perfect balance of speed, grip, and stability. Ideal for riders who push the boundaries across varied and demanding surfaces.

Wheelset

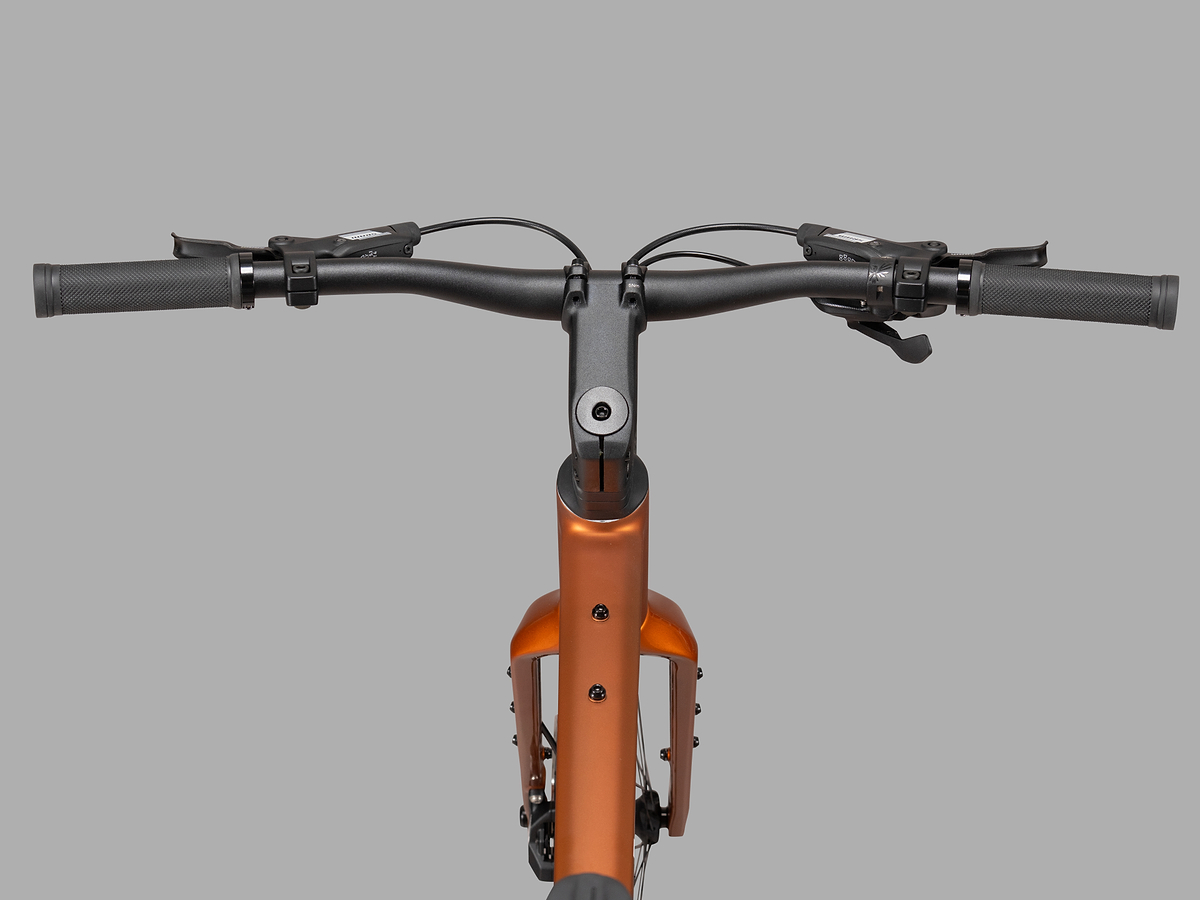

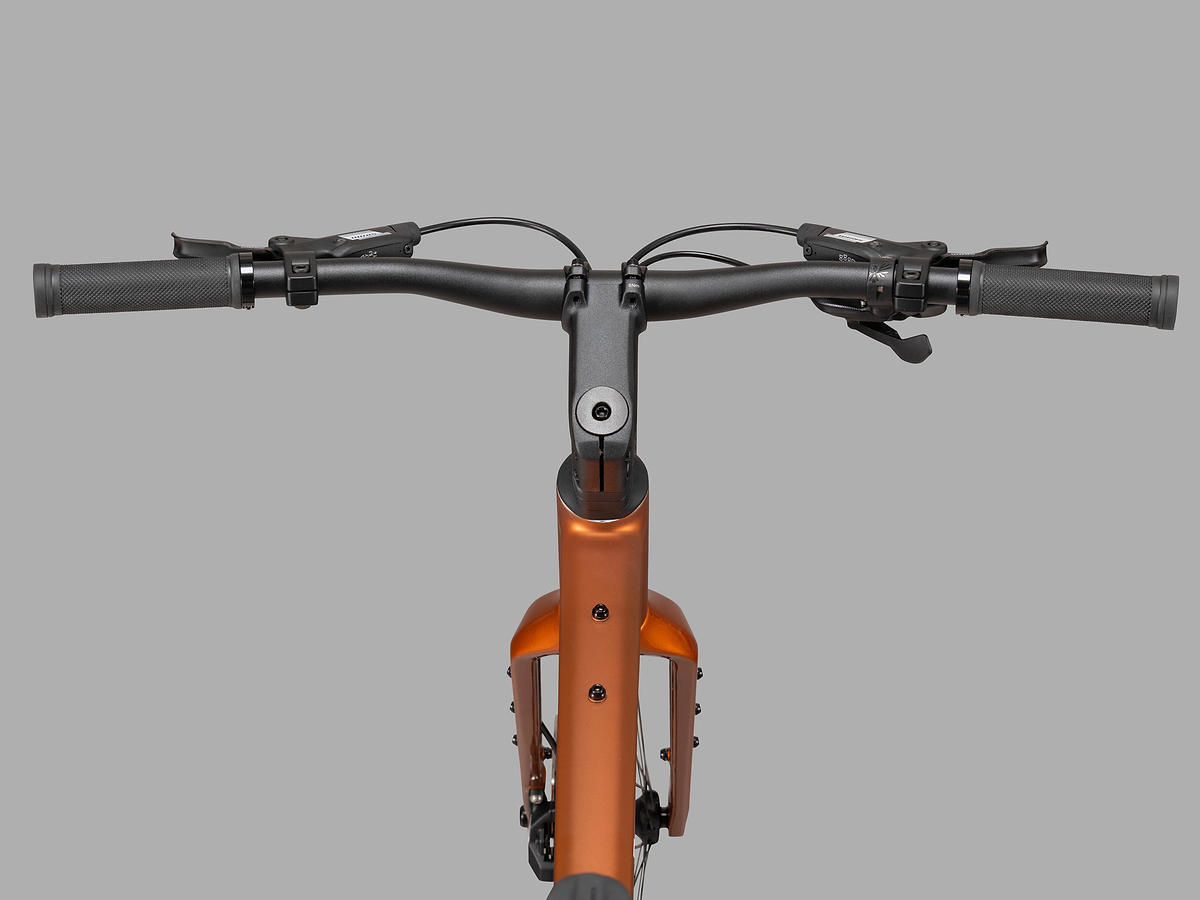

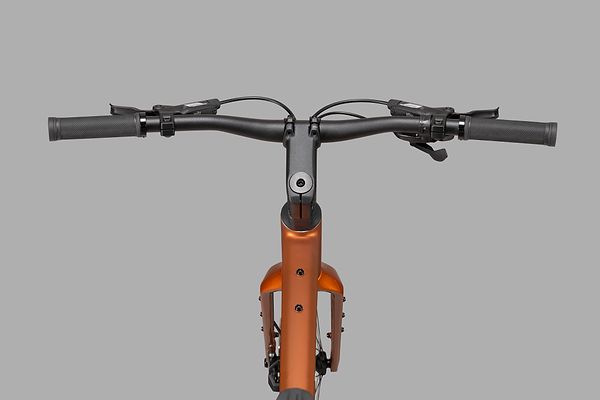

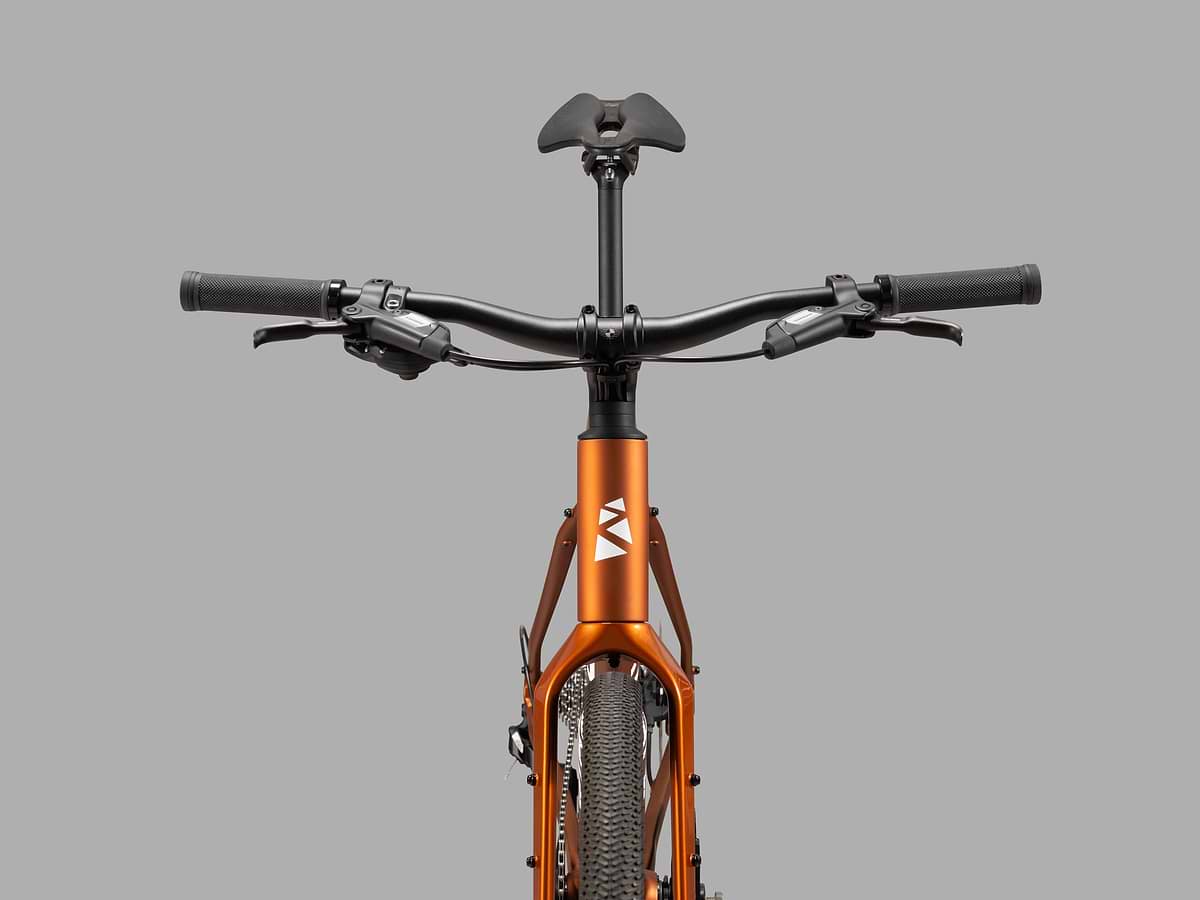

Handlebars

Flat bars put you in a relaxed, upright position, so you’ve got a clear view and better control on varied terrain. Ergonomic grips add comfort on longer rides, and the lightweight Ribble alloy stem keeps things steady and responsive, on back lanes, gravel and everything in between.

Handlebars

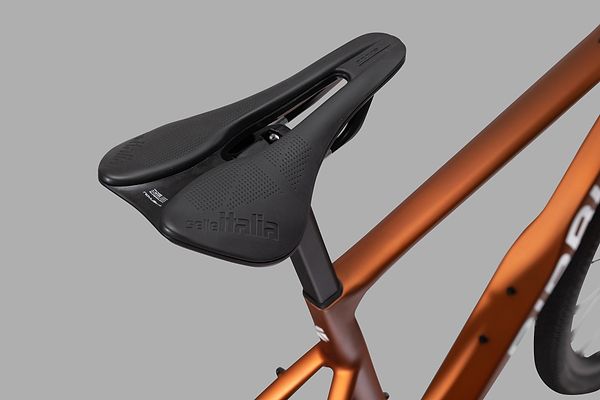

Saddle

Stay stable and comfortable over rough terrain. Our integrated seat clamp, proprietary D-shaped alloy seatpost, and Selle Italia Model X saddle combine to deliver outstanding rear-end compliance, smoothing out trail chatter for improved comfort and all-day performance.

Saddle

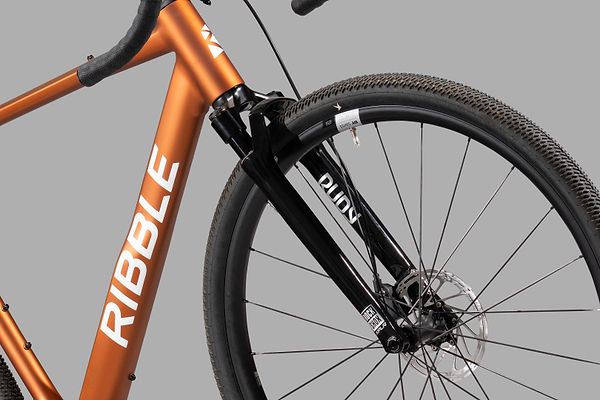

Suspension Fork Upgrade

When the gravel gets rough and the terrain turns technical, the RockShox Rudy Ultimate fork smooths out the ride. Available as an upgrade on the Ribble ALLGRIT AL SPORTFIT, this premium suspension fork is purpose-built for gravel racing, delivering up to 30mm of travel for added comfort, control, and confidence. Whether you're carving through corners or charging down loose descents, Rudy’s refined damping and lightweight design help you stay fast, focused, and fully in command.

Suspension Fork Upgrade

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
Wheelbase (mm)10301036105210611075
Handlebar Default (mm)660660660660660
Stem Default (mm)9090909090
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830
Crank Length (mm)165170170172.5172.5

FAQ's

Full Spec

Please note that the exact specification below will differ based on the size and specification you select.

  • Bike

    • Allgrit AL Frame Copper XSM 47cm
    • Alloy Riser Flat Bar Black 66cm
    • Alloy Riser Stem 90mm
    • Alloy Seatpost 350mm D-Shaped w/Ribble Logo
    • Alloy Shift Cable Housing Ferrule Black 4.2mm
    • Allroad Carbon Seatpost Wedge - Ti / Alloy
    • Apex 1 DUB Wide Crankset 165mm 40T
    • Apex Flattop 12spd Chain 120 Links
    • Apex XPLR Rear Derailleur
    • Centre Lock Rotor Lockring
    • Centreline CL Rotor 160mm
    • Chainstay Protector
    • Compression Bushing Fits Stealth-a-Majig System AL
    • D-Shaped Rubber Seat Tube Cover
    • DB-S300-A1 Brake Lever & Caliper LH 1900mm
    • DB-S300-A1 Brake Lever & Caliper RH 950mm
    • DUB T47 85.5mm Road WIDE Bottom Bracket
    • Disc Caliper Bolt Black 27mm For Alloy Frames
    • Headset Bearing Cover for Urban Riser Stem
    • Jagwire LEX-SL Gear Cable Outer - Black 1m
    • M3 6mm Hex 2 Countersunk Black
    • M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
    • Needle Insert Fits Stealth-a-Majig System SS
    • PG1231 XPLR Cassette HG 11-44T
    • Plastic Compression Spider 42mm 0.0mm Offset
    • Rear Thru Axle w/Ribble Logo 167.5mm P1.0 UDH
    • Rubber Circular Bung - 10mm Domehead 8mm Post
    • Rubberised Bar Grips Black
    • SX Eagle Trigger Shifter 12spd RH
    • Short Door - Ti Alloy - Single Hole Without Stop
    • Starter Kit Black One Size
    • Thru Axle Lever
    • UDH Rear Hanger Black P1.0 M12 (3PCS)
    • Urban Riser Stem Spacer - 10mm
    • Urban Riser Stem Spacer - 15mm
    • Warning sticker sheet Torques to be applied at PDI
  • Fork

    • Allgrit AL Carbon Fork Copper
    • Allroad Front Thru-Axle
    • Expander For Carb Steerer 1-1/8 x 65mm (Regular)
    • M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
    • R457B Headset Bearing
  • Wheelset

    • G-One R Performance RaceGuard TLR Tyre BLK 700x45mm
    • G1800 Disc Front Wheel 700c CL
    • G1800 Disc Rear Wheel 700c CL HG
    • Inner Tube SV17 700x28/47 Presta 40mm
  • Saddle

    • Selle Italia Model X Light FeC Saddle
