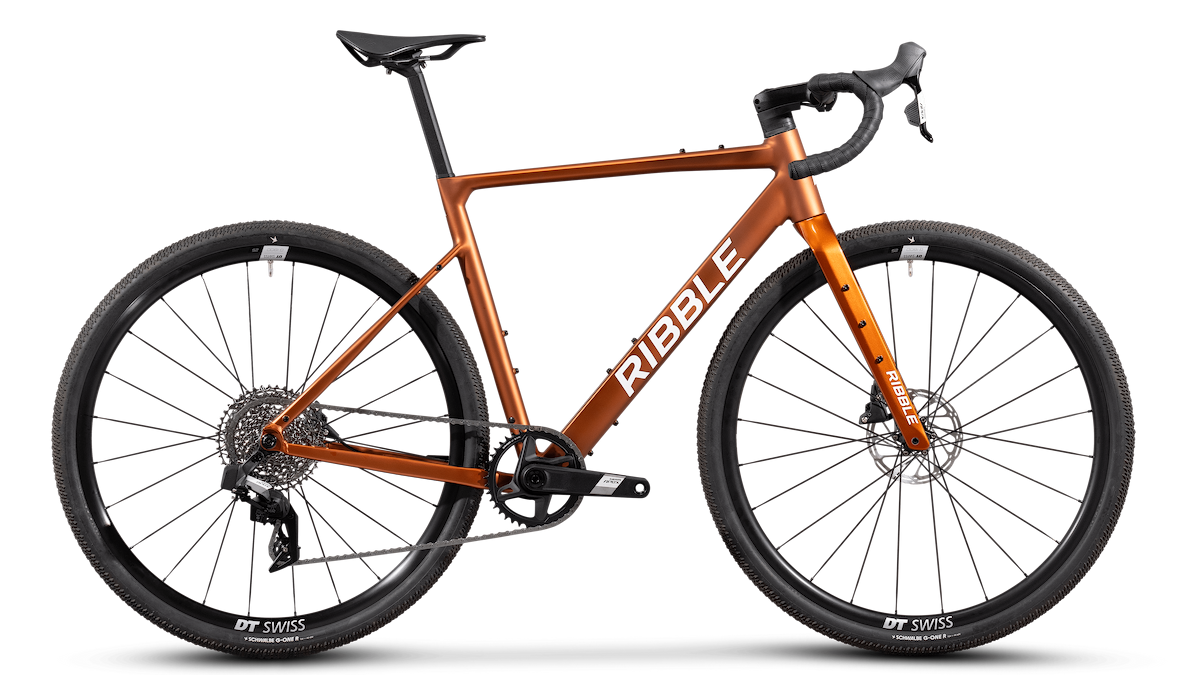

ALLGRIT AL Apex XPLR AXS

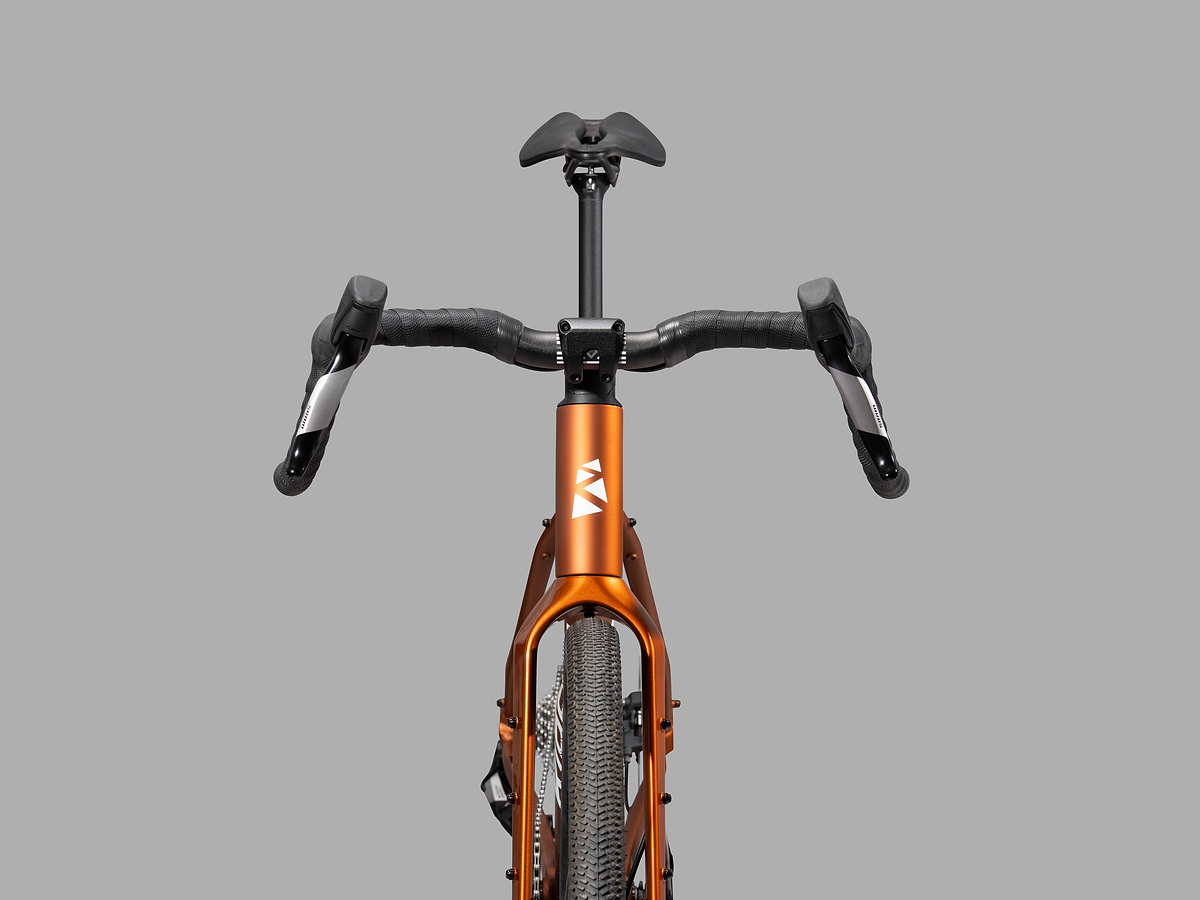

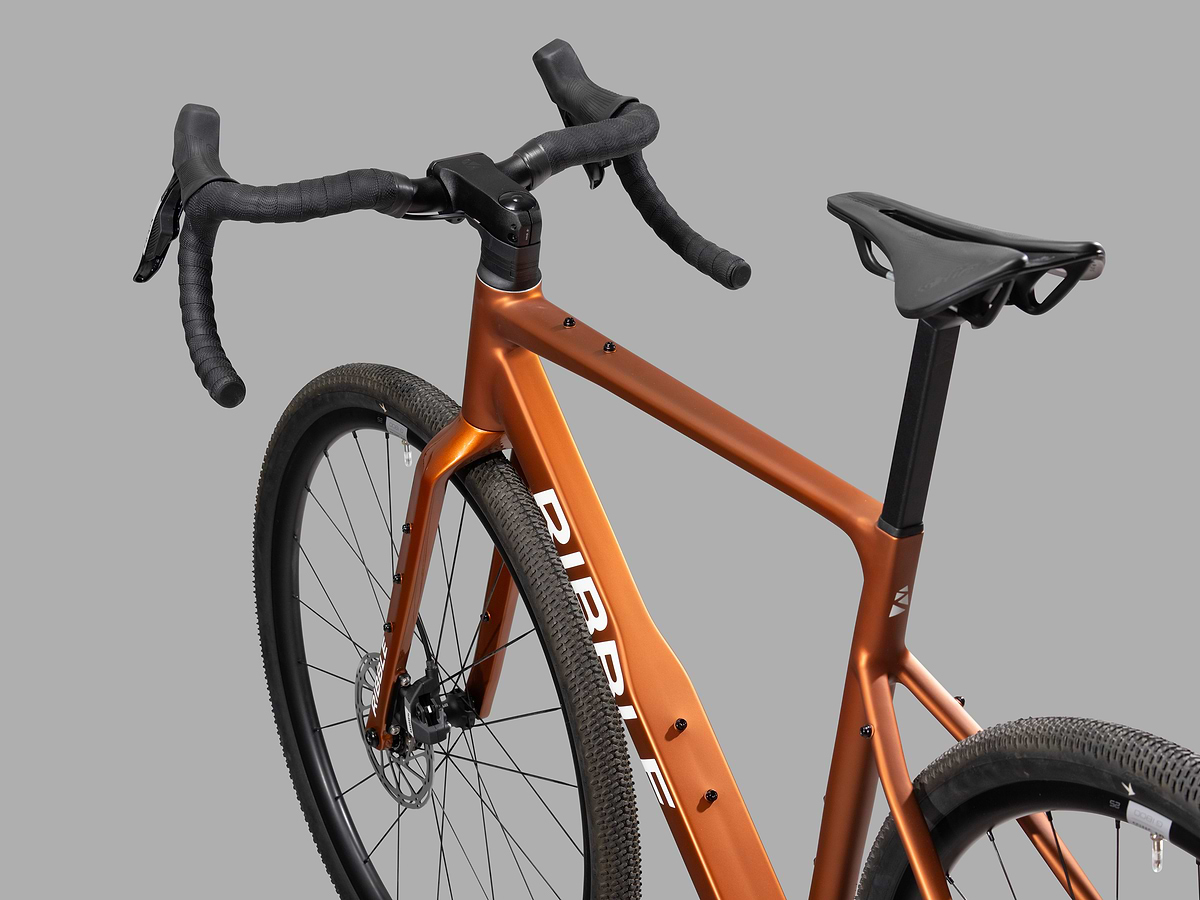

ALLGRIT AL Apex XPLR AXS image 2

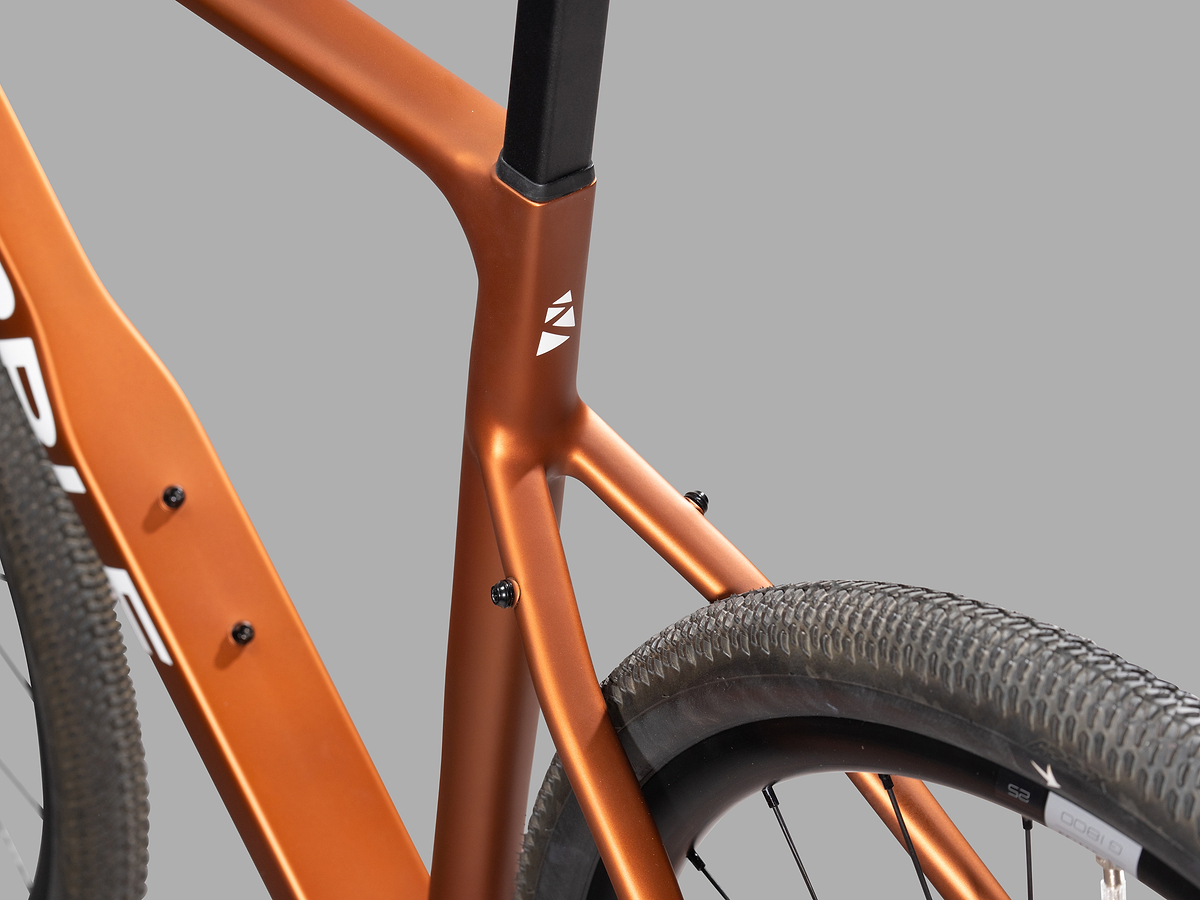

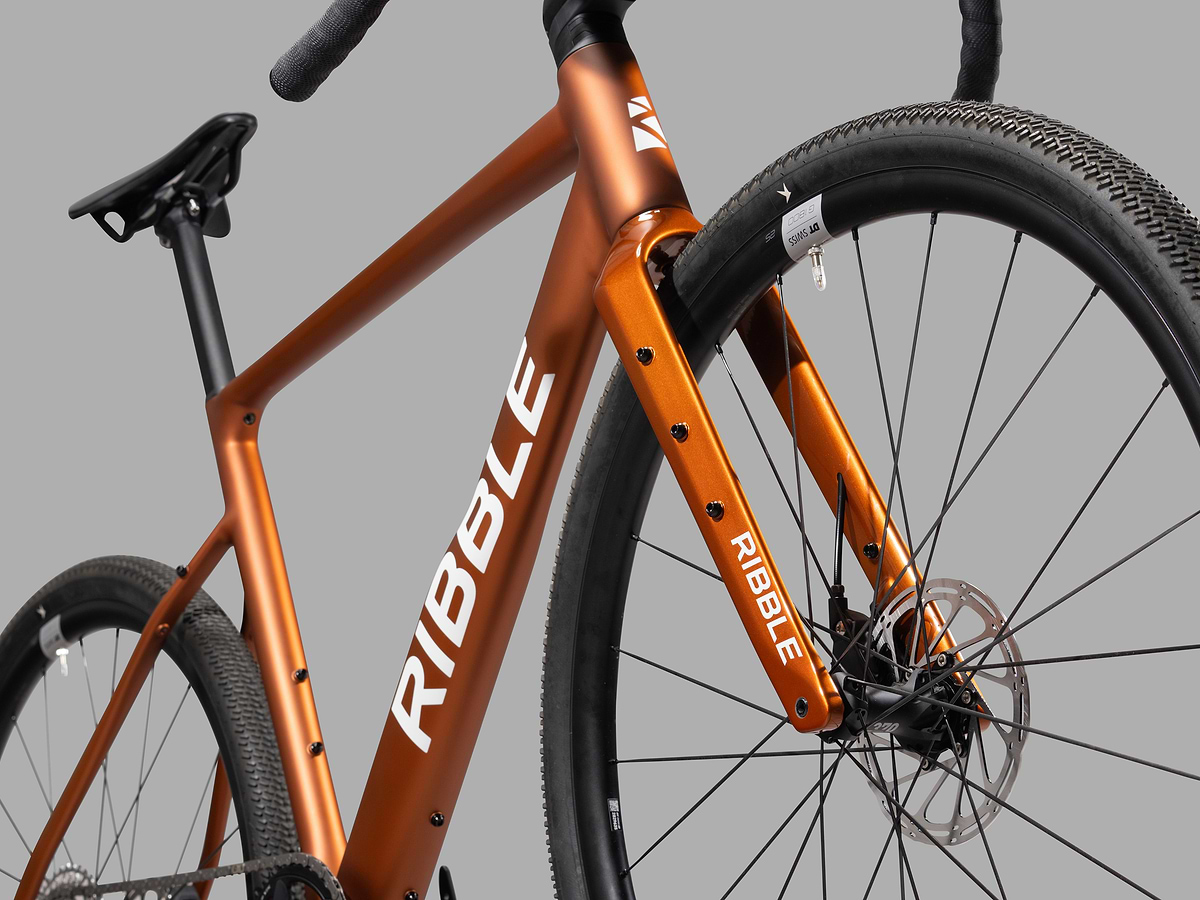

ALLGRIT AL Apex XPLR AXS image 3

ALLGRIT AL Apex XPLR AXS

Built to order in the UK
The ALLGRIT AL is built for versatility and comfort. From daily detours to cross-country epics, it’s ready to carry you and your gear wherever you need to go. Designed for true gravel exploration, it…
£1,999
V12 Finance·Klarna·PayPal
colour
Choose Your Size
Product code: BGRAVALG2APAXXP

Ways to pay

Why Ribble?

BUILT TO ORDER
Every Ribble is built to order by our skilled mechanics in Lancashire, UK.

LIFETIME FRAME WARRANTY
Ride hard, worry free – all our bikes have a lifetime frame and fork warranty.

30-DAY RIDE-OUT GUARANTEE
Make sure you get the perfect fit - if you're not 100% happy, return it for a full refund or swap. Terms and conditions.

30 DAYS FREE BIKE INSURANCE
Every new Ribble comes with 30 days cover included, so you’re protected from day one.

BUY DIRECT
Get more bike for your money, and have our expert team on hand if you need support.

Description

The ALLGRIT AL is built for versatility and comfort. From daily detours to cross-country epics, it’s ready to carry you and your gear wherever you need to go. Designed for true gravel exploration, it pairs our lightweight 7005 series aluminium frame with a rugged, and fully wireless SRAM Apex XPLR AXS electronic drivetrain, dependable DT Swiss G1800 alloy wheels, versatile 45 mm Schwalbe G-One R Performance tyres, and an adventure-ready Selle Italia Model X saddle.

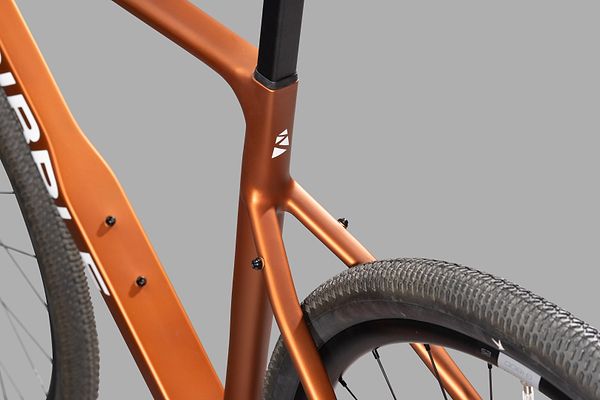

Frameset

Crafted from lightweight 7005 aluminium, this frameset delivers an ideal combination of strength, responsiveness, and low weight. Its hydroformed tube profiles are carefully shaped for maximum aerodynamic efficiency, ensuring minimal drag and maximum speed. Full internal cable integration and seamless weld technology contribute to a clean, refined look that rivals the sleek aesthetic of high-end carbon frames. The result is a frameset that performs as impressively as it looks—fast, smooth, and uncompromising in style.

Frameset

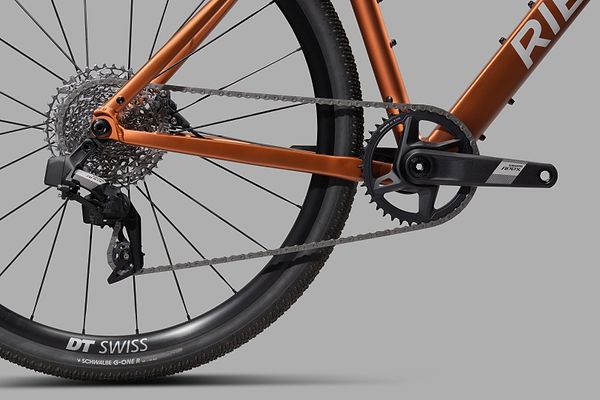

Groupset

Apex is the groupset designed for riders who demand versatility and performance. Apex AXS delivers a wide range 1x12 drivetrain that's ideal for gravel, bikepacking, adventure, casual rides, and everything in between. Its wireless electronic shifting ensures smooth, reliable performance with precise gear changes, excellent chain retention, and confident hydraulic disc braking. With full AXS connectivity, you can customise shift settings, monitor battery life, and update firmware—all from a single device. Intuitive and user-friendly, Apex keeps your focus where it belongs: on the ride.

Groupset

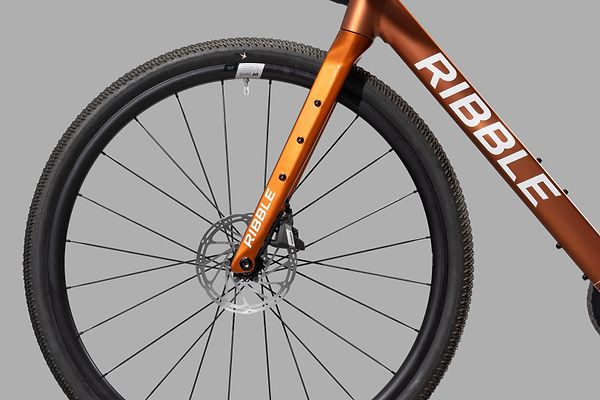

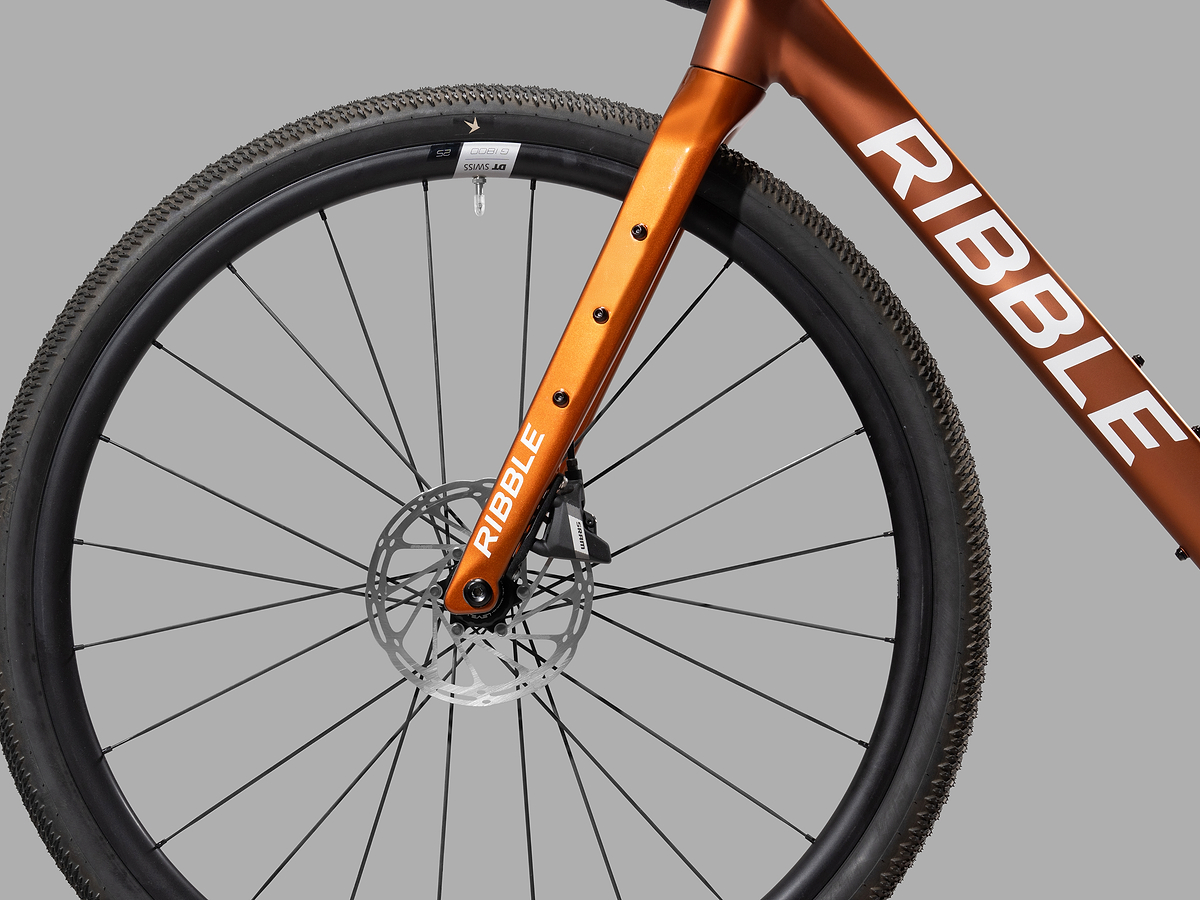

Wheelset

Boasting a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident control and comfort across rough and unpredictable gravel terrain. Paired with 45 mm Schwalbe G-One R Performance tyres, it strikes the perfect balance of speed, grip, and stability—ideal for riders who push the boundaries across varied and demanding surfaces.

Wheelset

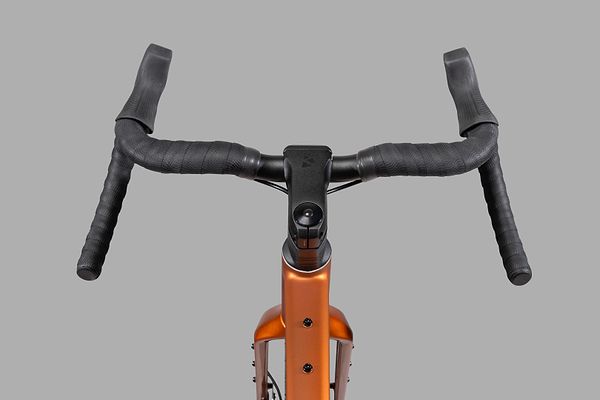

Handlebars

Built to take on the rough stuff, the Ribble Gravel Riser handlebars bring comfort, control, and versatility to every ride. A 20 mm rise gives you more hand positions and extra space for running a bar bag—perfect for long hauls and bikepacking missions. The flared drops widen your stance for rock-solid stability when bombing descents or picking through technical terrain. Wrapped in plush bar tape and paired with a matching alloy stem, this setup is ready to tackle whatever the trail throws your way.

Handlebars

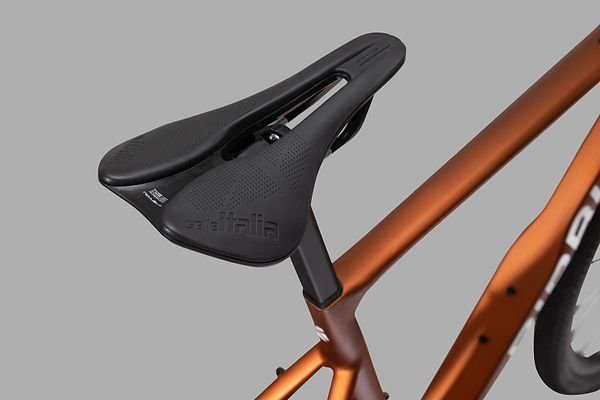

Saddle

Remain stable and comfortable over rough terrain—the integrated seat post clamp, twinned with our proprietary D-shaped alloy seat post and Selle Italia Model X saddle, delivers exceptional rear-end comfort that's hard to beat.

Saddle

Suspension Fork Upgrade

When the gravel turns rough and the terrain gets technical, the RockShox Rudy Ultimate fork steps in to smooth out the ride. Available as an upgrade on the Ribble ALLGRIT AL, this premium suspension fork is purpose-built for gravel racing—offering up to 30mm of travel for improved comfort, control, and confidence. Whether you're carving through gravel or hammering down technical descents, Rudy’s refined damping and lightweight design help you stay fast, focused, and in total command.

Suspension Fork Upgrade

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
Wheelbase (mm)10301036105210611075
Handlebar Default (mm)380/473380/473400/494400/494420/513
Stem Default (mm)70809090100
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830

Full Spec

Please note that the exact specification below will differ based on the size and specification you select.

  • Bike

    • Allgrit AL Frame Copper XSM 47cm
    • Alloy Seatpost 350mm D-Shaped w/Ribble Logo
    • Allroad Carbon Seatpost Wedge - Ti / Alloy
    • Apex 1 DUB Wide Crankset 165mm 40T
    • Apex AXS D1 Shift Lever & Caliper LH
    • Apex AXS D1 Shift Lever & Caliper RH
    • Apex Flattop 12spd Chain 120 Links
    • Apex XPLR AXS Rear Derailleur
    • Centre Lock Rotor Lockring
    • Centreline CL Rotor 160mm
    • Chainstay Protector
    • Compression Bushing Fits Stealth-a-Majig System AL
    • D-Shaped Rubber Seat Tube Cover
    • DUB T47 85.5mm Road WIDE Bottom Bracket
    • Disc Caliper Bolt Black 27mm For Alloy Frames
    • EP Powerpack 1 Battery
    • Embossed Black Bar Tape
    • M3 6mm Hex 2 Countersunk Black
    • M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
    • Needle Insert Fits Stealth-a-Majig System SS
    • PG1231 XPLR Cassette HG 11-44T
    • Rear Thru Axle w/Ribble Logo 167.5mm P1.0 UDH
    • Rubber Circular Bung - 10mm Domehead 8mm Post
    • Short Door - Ti Alloy - Blank
    • Short Door - Ti Alloy - Single Hole Without Stop
    • Thru Axle Lever
    • UDH Rear Hanger Black P1.0 M12 (3PCS)
    • Warning sticker sheet Torques to be applied at PDI
  • Fork

    • Allgrit AL Carbon Fork Copper
    • Allroad Front Thru-Axle
    • Expander For Carb Steerer 1-1/8 x 65mm (Regular)
    • M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
    • R457B Headset Bearing
  • Wheelset

    • G-One R Performance RaceGuard TLR Tyre BLK 700x45mm
    • G1800 Disc Front Wheel 700c CL
    • G1800 Disc Rear Wheel 700c CL HG
    • Inner Tube SV17 700x28/47 Presta 40mm
  • Handlebar

    • Alloy Gravel Riser Bar Black 38cm - 47cm
    • Plastic Compression Spider 42mm 0.0mm Offset
    • RS-2 Round Headset Bearing Cover for AL
    • RS-2 Stem Headset Bearing Cover Kit
  • Saddle

    • Selle Italia Model X Light FeC Saddle
